6 Connection of LX 7007

Connection of LX 7007 family (except Compact) is possible via a special cable (6P 9P). Use LX Mini map cable set
prepared for COM2.
See chapter Cable set for details.

7 LX Mini Map and Winpilot

There are two versions of Winpilot, WP pro and WP advanced. WP pro isn't capable to operate in conjunction with
LX Vario and WP advanced offers this feature.

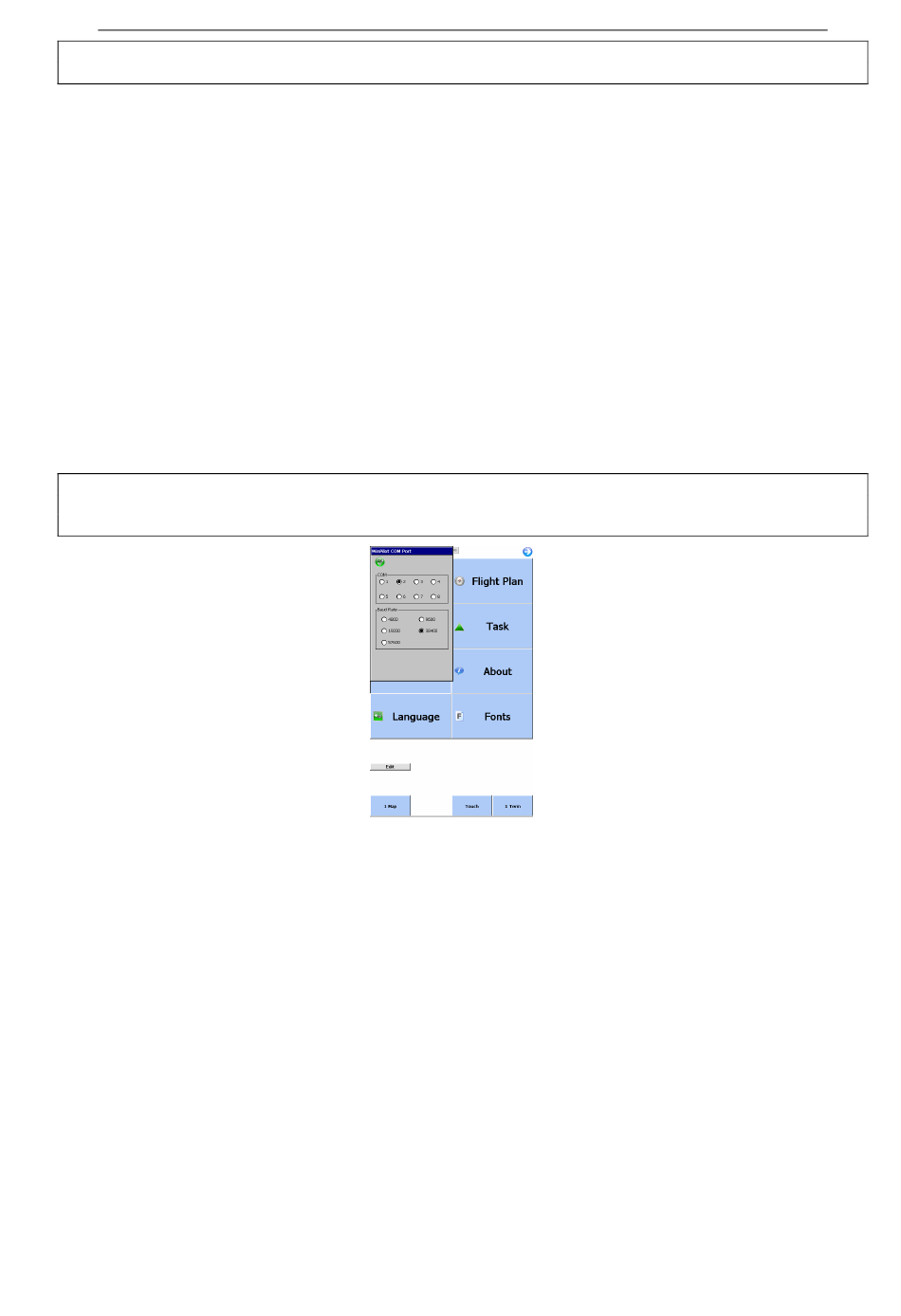

7.1 Important settings

It is recommended to set Com 2 and 38400 bps for GPS data input. Under some special conditions also COM 1 can
be used.
After need of Com 1, a special cable set with wired Com 1 is necessary. Connection of Cambridge CA 302 requires

7.1.1 WP and LX Mini Map KB/V

Operation of Winpilot Pro and LX Mimi Map KB/V needs following settings:
Use LX Mini Map setup to define vario parameters
•
COM 2/38400 on Winpilot
•
COM 2 wiring
•

7.1.2 WP and 302

It is recommended to use COM1 type of wiring and also setting COM1 4800 on WP. COM 1 wiring is not default, it
should be ordered as an option. A special cable which is connecting Junction box and 302 is also necessary.
LX Mini Map V 1.4
Important!
Important!
mentioned solution.
