All connections plug and play, all cables delivery included no power for RB out of Mini Map. RB should be

10.3.2 LX Mini Map and LX Flarm Mini Box

Connection LX Flarm Mini Box to Mini Map is simple plug and play after using of 6P/6P 1:1 telephone type cable
delivered with LX Mini Map.

10.3.3 Original Flarm units

The connection should be done exclusively after using of Flarm 8P main connector (power data) and 1:1 6P
telephone type cable. In that case Flarm will also receive power from Junction box. Having requirements for separate
Flarm power, ask LX Navigation for solution.

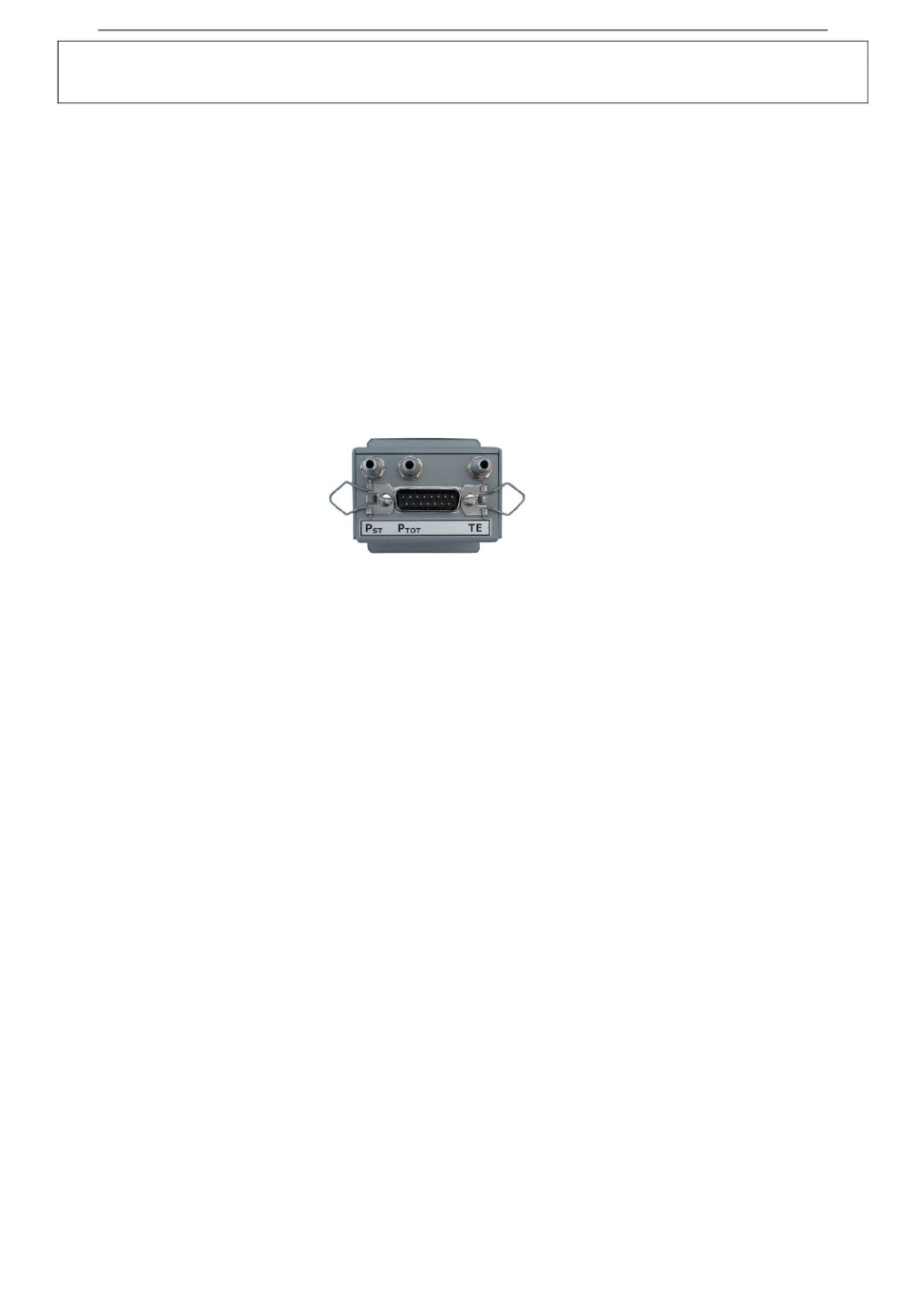

10.4 Installation of LX Vario unit

All connections are plug_and_play and one two 9P connectors of Junction box should be used, see 6.3. It is
important to connect pneumatic tubes correct.
TE input should be connected to TE probe, or to statics, if electronic TE compensation is intended to be used.
Electronic TE compensation should be enabled after using of appropriate setting in navigation program. See also
3.2.2.
Pst is static for speed measuring and should be always connected to glider statics source.
Ptot is total pressure input (pitot)
If external Vario/SC switch will be installed use wire marked as SC and connects a switch or key to its ends. See also
3.2.2.

11 Appendix

LX Mini Map V 1.4
Note!
separately connected to power supply.
