Automatic Document Feeder Rubber Pad
Replacement
You can purchase the ADF rubber from an authorized Muratec dealer.
1. Open the Front Panel Cover.
2. Insert a small flat blade screwdriver under the right and left sides of
3. Apply upward pressure to release the two locking tabs on each side of
4. Remove the assembly and replace the ADF Rubber.

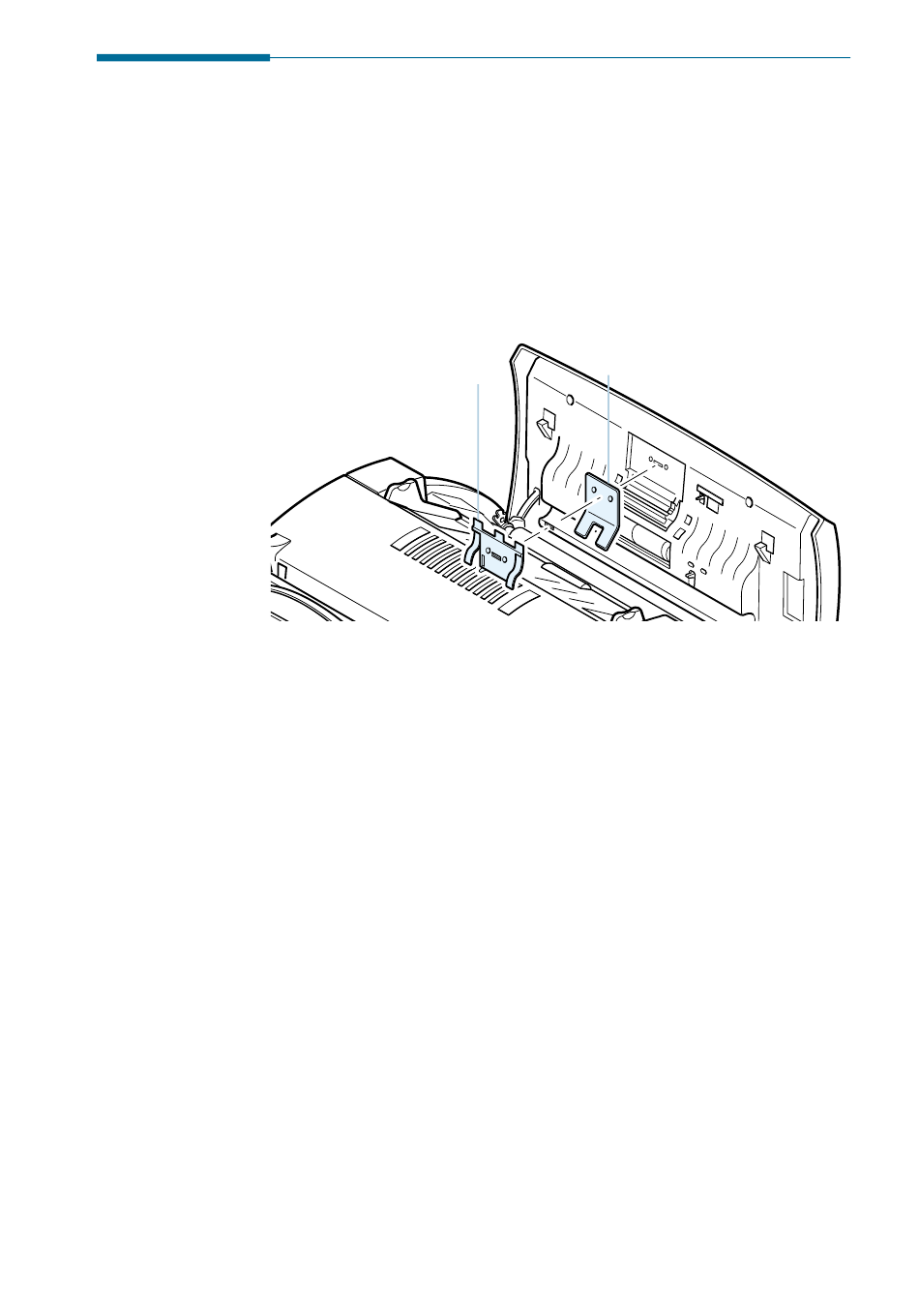

5. Reassemble the components in the order shown in the diagram above.
6. Place the assembly back onto the ADF Holder.
7. Press down on the assembly until it locks into position.
8. Close the Front Panel.
