Autoslide iLock Installation Manual page 29

SWITCHING THE MOTOR AND CONTROL UNIT

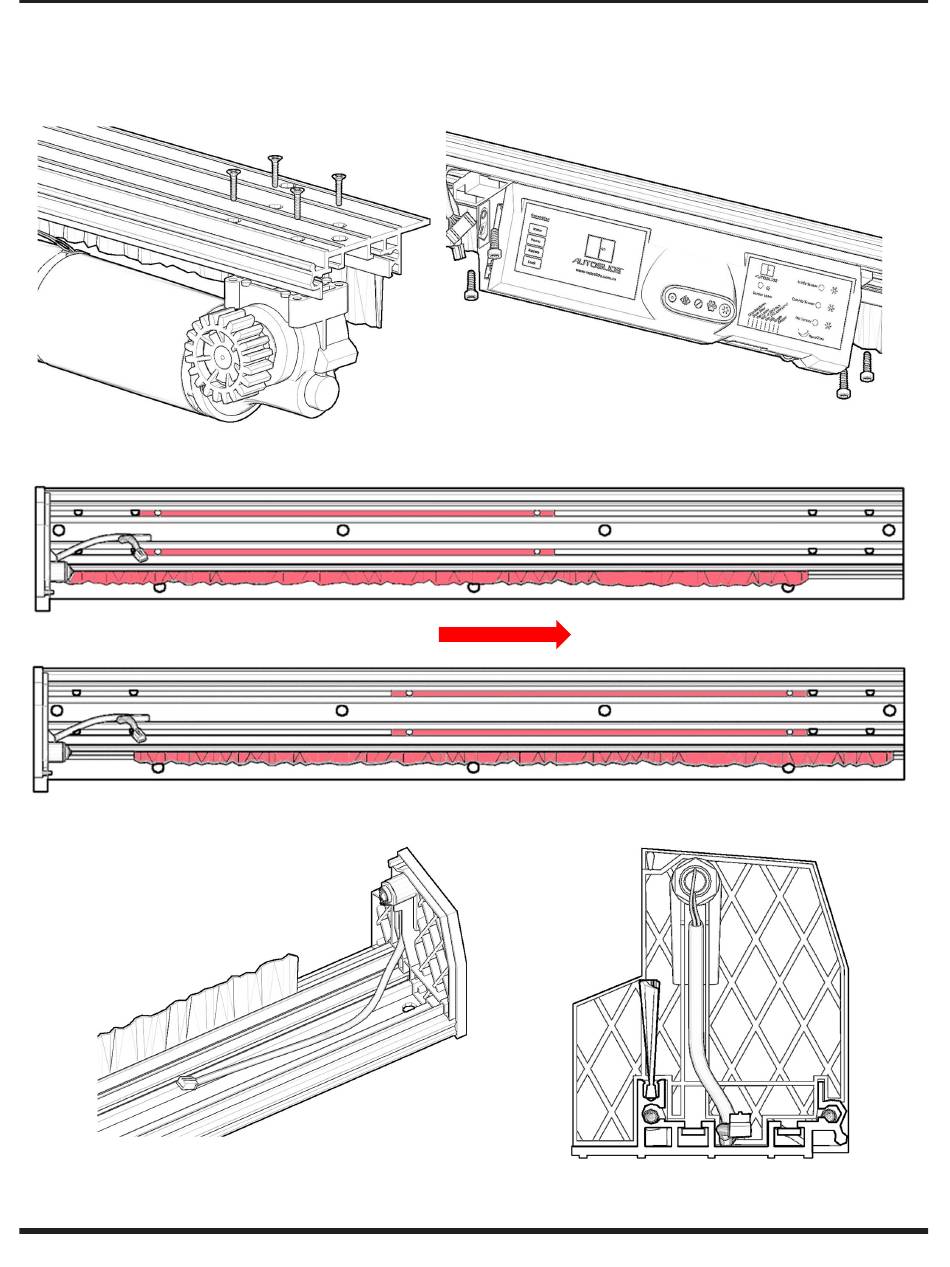

4) Remove the four screws holding the motor to the unit base. Use the Allen key to remove the
four bolts holding the control panel to the unit base.
5) Slide the base brush and metal bars to the opposite side.
6) Place the power cable in extruded recessed area. Unit is shown upside down below.
