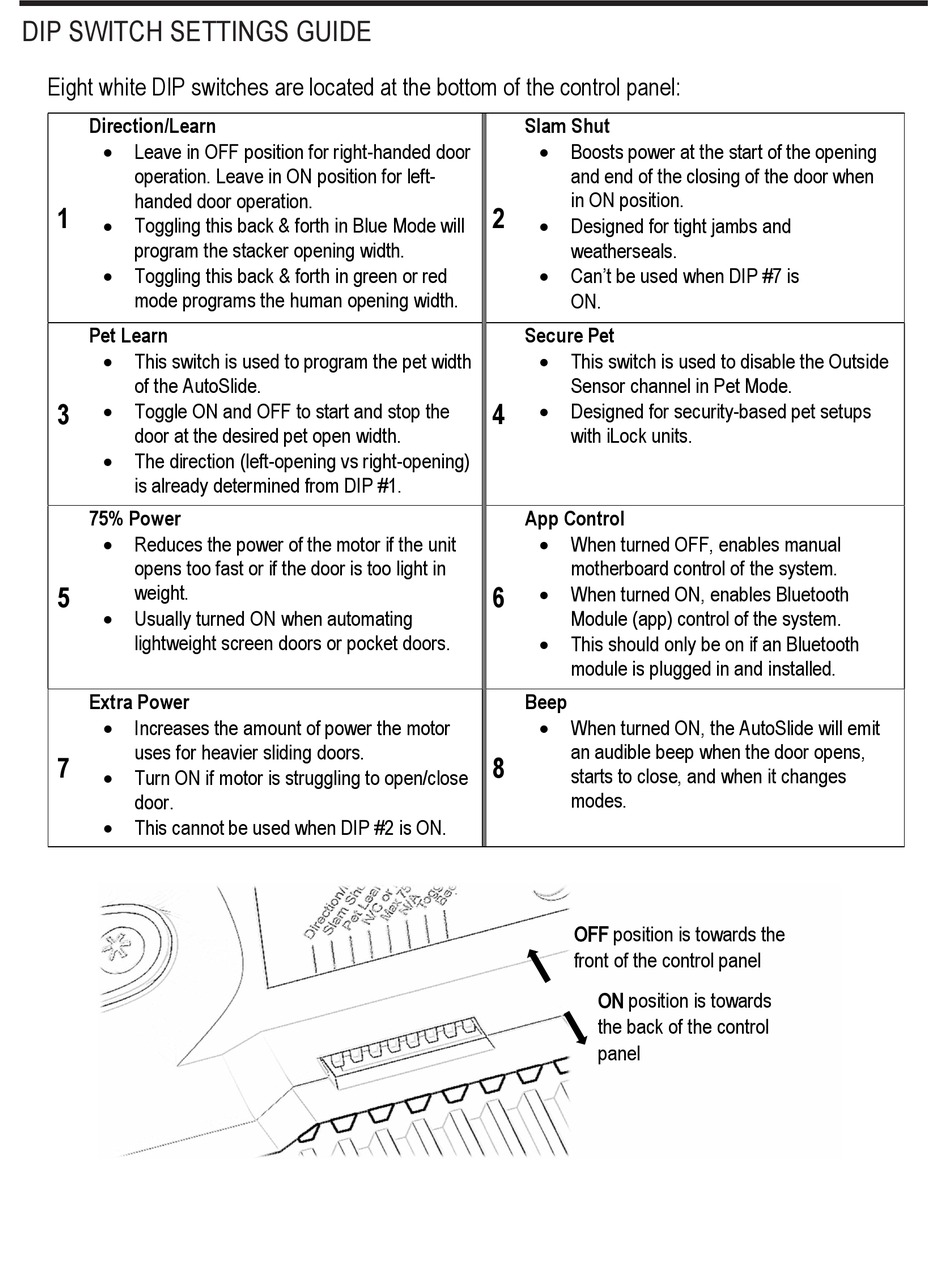

Autoslide iLock Installation Manual page 19

DIP SWITCH SETTINGS GUIDE
Eight white DIP switches are located at the bottom of the control panel:
Direction/Learn
Leave in OFF position for right-handed door

operation. Leave in ON position for left-
handed door operation.
1
Toggling this back & forth in Blue Mode will

program the stacker opening width.
 Toggling this back & forth in green or red
mode programs the human opening width.
Pet Learn
 This switch is used to program the pet width
of the AutoSlide.
 Toggle ON and OFF to start and stop the
3
door at the desired pet open width.
 The direction (left-opening vs right-opening)
is already determined from DIP #1.
75% Power
 Reduces the power of the motor if the unit
opens too fast or if the door is too light in
5 weight.
 Usually turned ON when automating
lightweight screen doors or pocket doors.
Extra Power
 Increases the amount of power the motor
uses for heavier sliding doors.
7
 Turn ON if motor is struggling to open/close
door.
 This cannot be used when DIP #2 is ON.
Slam Shut
 Boosts power at the start of the opening
and end of the closing of the door when
in ON position.
2
 Designed for tight jambs and
weatherseals.
 Can't be used when DIP #7 is
ON.
Secure Pet
 This switch is used to disable the Outside
Sensor channel in Pet Mode.
 Designed for security-based pet setups
4
with iLock units.
App Control
 When turned OFF, enables manual
motherboard control of the system.
 When turned ON, enables Bluetooth
6
Module (app) control of the system.
 This should only be on if an Bluetooth
module is plugged in and installed.
Beep
 When turned ON, the AutoSlide will emit
an audible beep when the door opens,
8
starts to close, and when it changes
modes.
OFF position is towards the
front of the control panel
ON position is towards
the back of the control
panel
