REVERSING THE MOTOR
Re-handing the system (reversing the position of the motor and the control unit) is required if
floor mounting onto a left-opening door.
Re-handing should be done prior to starting the installation process. Note that if re-handing the
system, the unit's left endcap with the power port may be up against a wall when mounted and
inaccessible. Be sure to plug the power cable into the unit endcap's power port before mounting
the unit if needed.

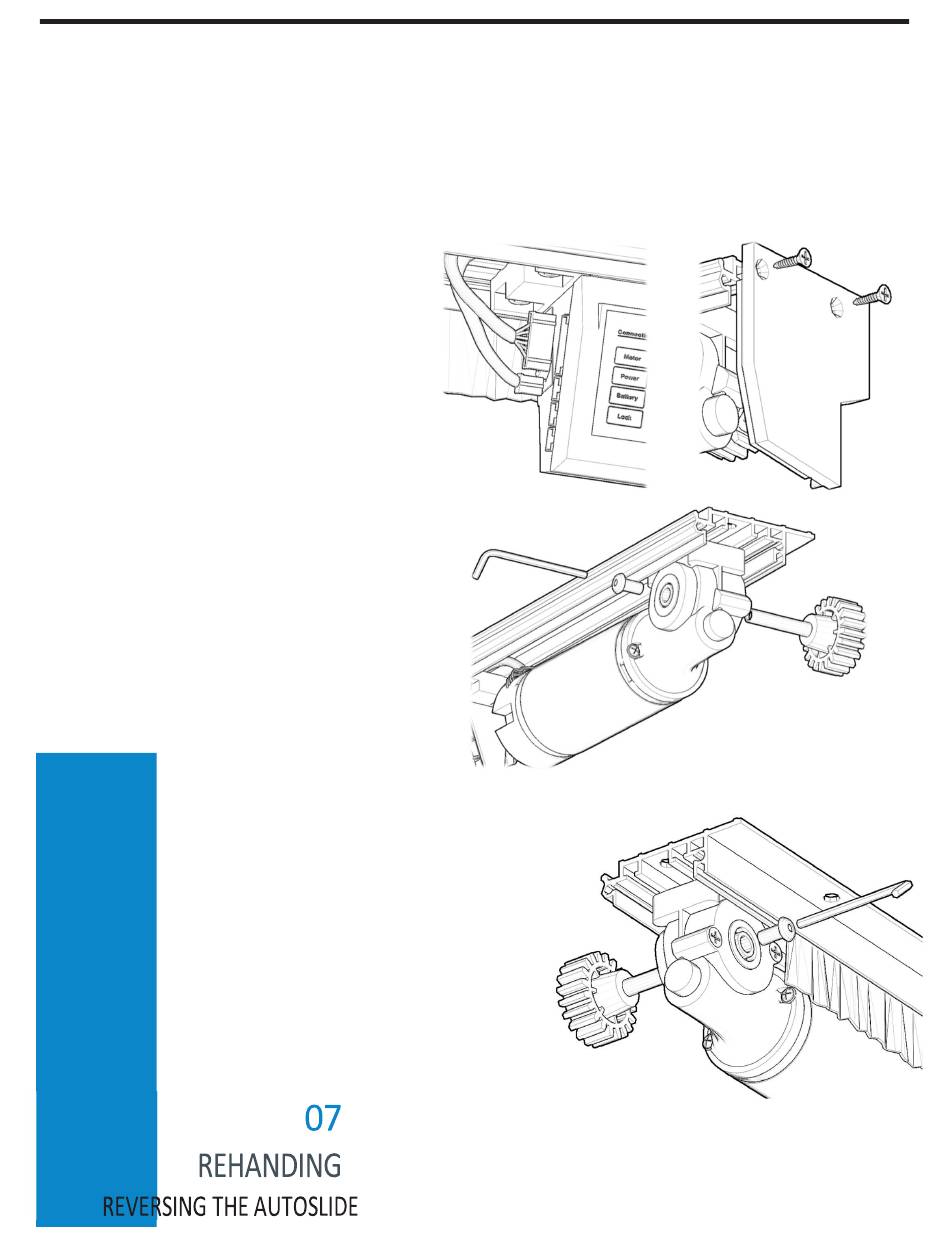

1) Unplug all cables from the control panel.
Unscrew the two screws from the right
unit endcap (the endcap without a power
port) and remove the endcap.
2) Use the included Allen key to remove the
bolt opposite the motor wheel. Slide out the
motor wheel.
3) Insert the motor wheel on the
opposite side of the motor and
tighten the bolt using Allen key.
