TRACK MOUNTING

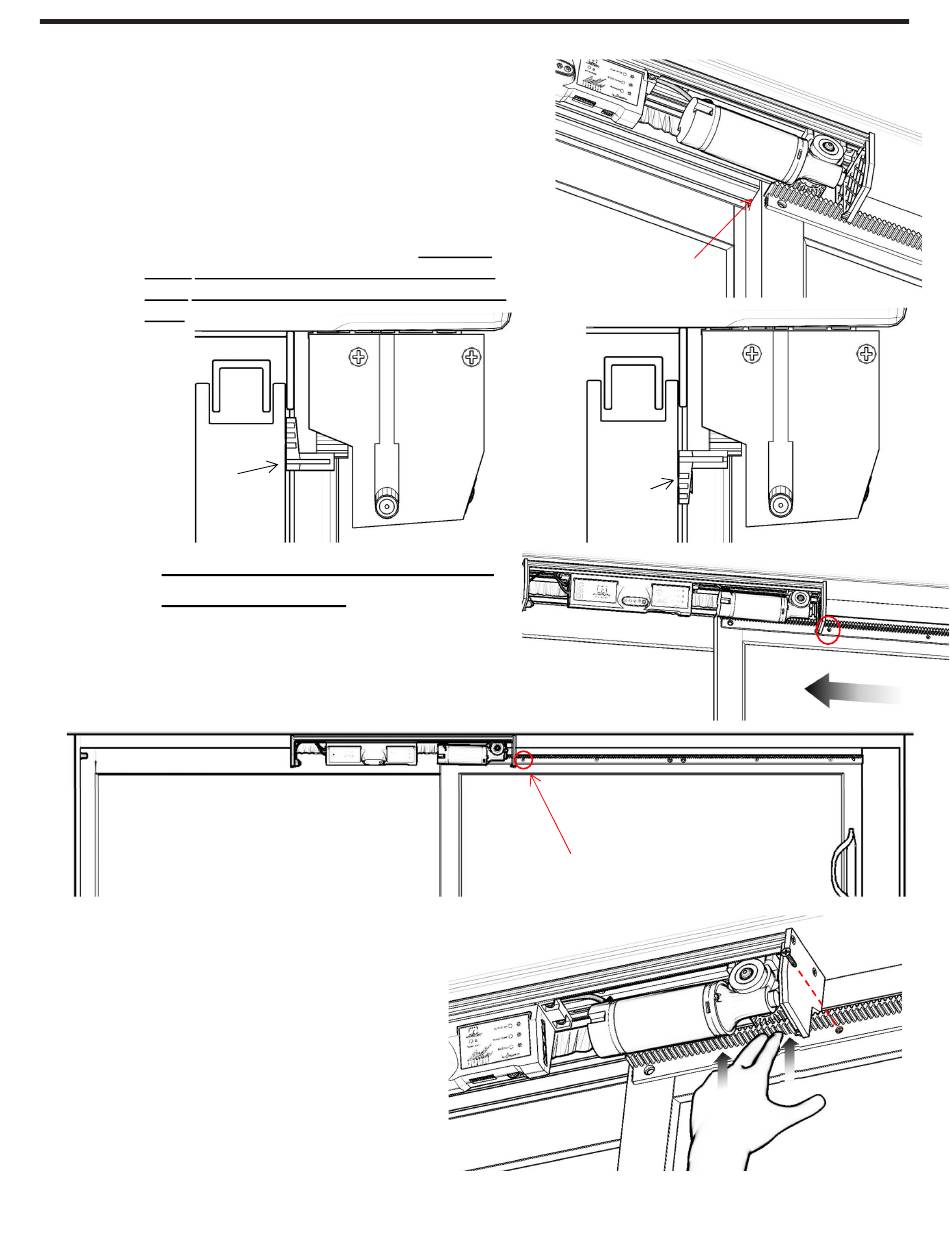

a) Hold the track to the sliding door
3)
panel (closed). Align the edge of the
track with the back (non-leading)
edge of the door as shown.
Note: The tracks can be mounted flange up (see
below) or flange down (see below right). Take great
care to note how far your glass goes into your panel
frame, and mount accordingly to avoid drilling into the
glass.
FLANGE
UP
b) Keeping the track in place relative
to the sliding panel, open the door
to the first position where a track
mounting hole is accessible and
close to the motor wheel.
c) While holding the track up
tightly to the motor wheel,
drill in the first screw.
If the tracks aren't installed with
enough pressure on the motor wheel,
the motor wheel may grind against the
track during setup or use.
Align track with back
edge of door panel
FLANGE
DOWN
Hole should be as close as possible to
motor wheel while being accessible
