Autoslide iLock Installation Manual page 11

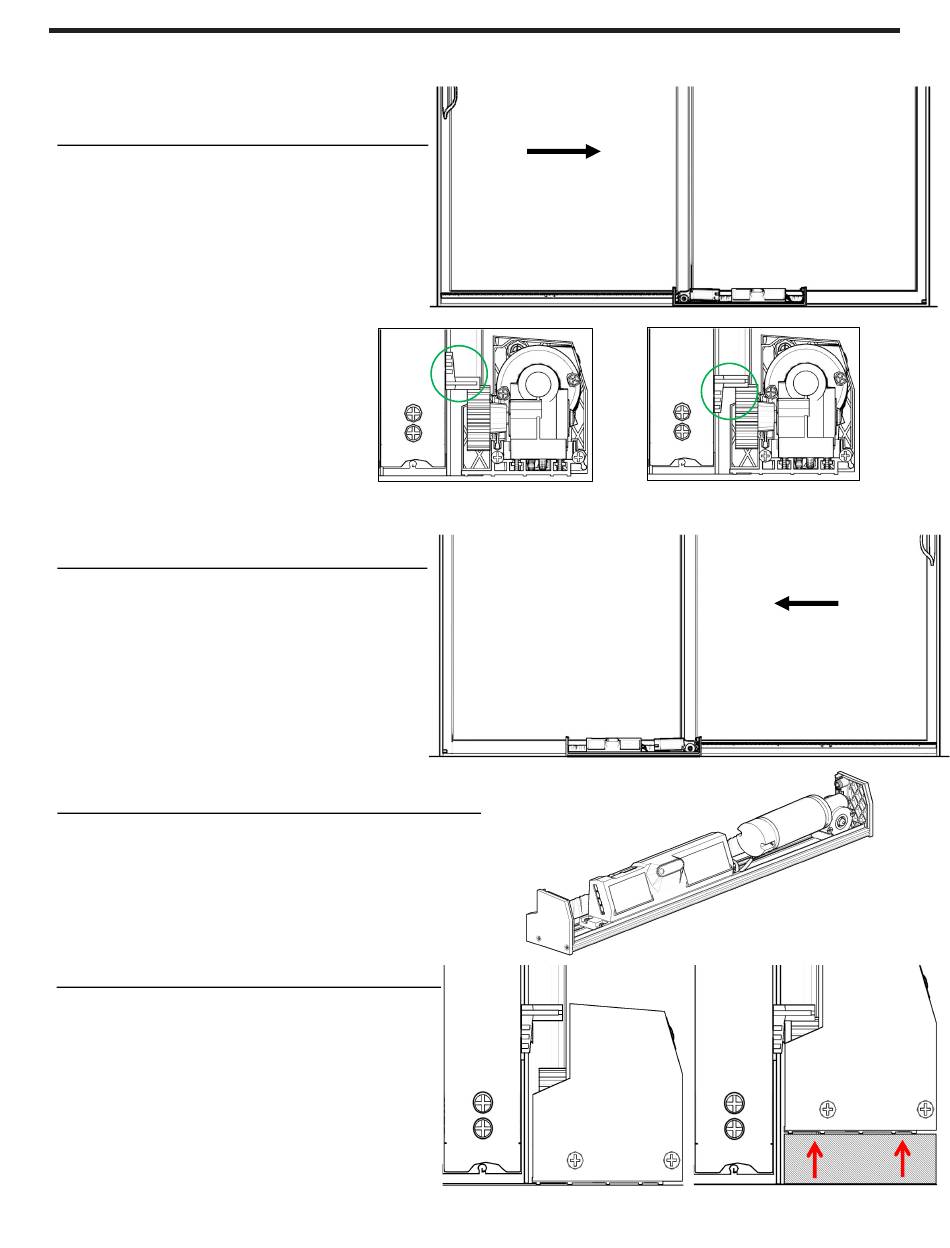

DRIVE MOUNTING OPTIONS - BOTTOM
BOTTOM MOUNT UNDER FIXED
PANEL LEFT-HANDED DOOR
If the drive system cannot be mounted at
the top of the door frame, it can be
mounted to the floor. Floor mounting
should be used as a final option only, if
top mounting isn't possible. Use this
example if your door opens lef to right.
Often clearance can be an issue when
installing tracks for a floor-mounted system.
Note that the tracks can be installed flange
up or flange down to avoid drilling into the
glass (see figures to the right) .
BOTTOM MOUNT UNDER FIXED
PANEL RIGHT-HANDED DOOR
If the door opens from right to left, floor
mounting the unit in its default
configuration will cause it to extend into the
door opening; in this case, the unit must
be re-handed (see below) so the unit body
stays under the fixed panel.
If floor mounting on a right-handed door, it is
required to re-hand the system (reversing the
position of the motor and control panel). Refer
to Section 07 to rehand before installing.
If the motor wheel can't vertically meet the
track (and the track is as low as possible),
use a block of wood or metal to shim the unit
up closer to the track. It will likely be
necessary to mark and predrill your holes in
the shim.
REHANDING
VERTICAL GAP
SLIDING
PANEL
SLIDING
PANEL
