WHEEL

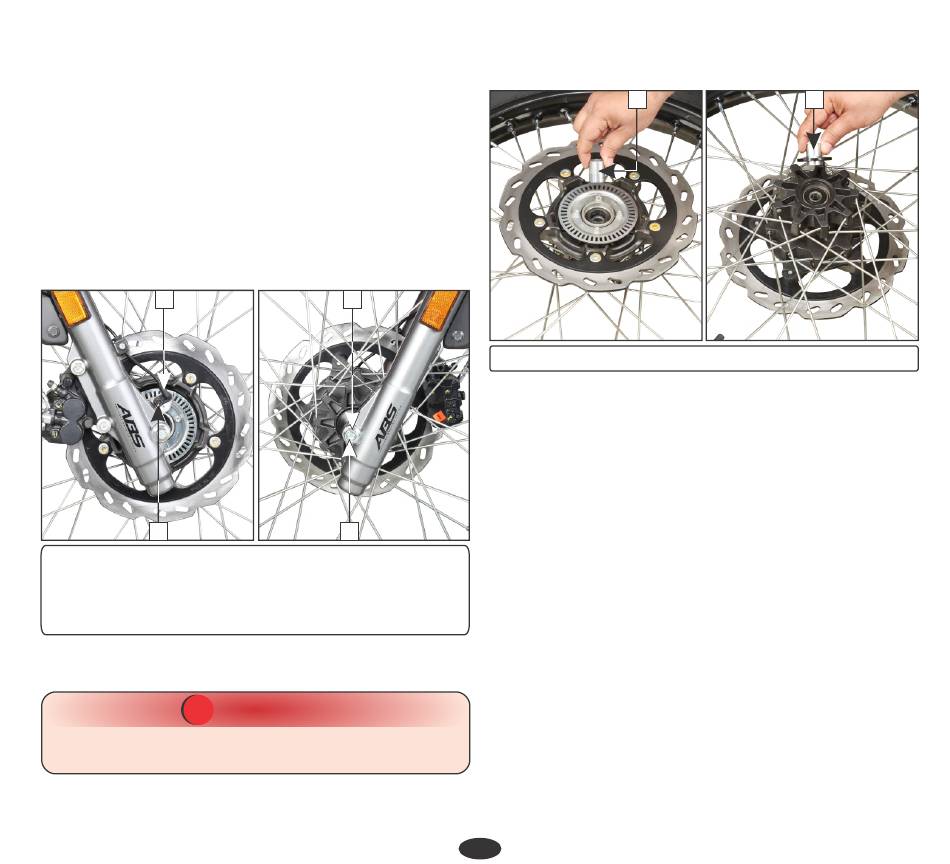

(a) Front wheel
Removal
Refer to the safety precautions on (page 44).
Support the vehicle securely on the main
•
stand and raise the front wheel off the
ground.
Remove the wheel speed sensor bolt (1)
•
from right fork leg and disconnect the wheel
speed sensor (2).
2
1
(1) Wheel speed sensor bolt
(2) Wheel speed sensor
(3) Front axle nut
(4) Axle
Remove the front axle nut (3), remove the
•
axle (4) and wheel.
! !
Do not operate front brake lever when the
wheel is removed.
3
4
CAUTION
Remove the side collars (5) from both sides
•
of the wheel.
5
(5) Side collars
Installation
Install the side collars (1) to both sides of
•
the wheel hub.
Insert the disc (2) between the pads in the
•
caliper assembly (3). When installing the
wheel, carefully fit the brake disc between
the brake pads to avoid damage to the pads.
Tighten the front axle nut (4) to the
•
specified torque.
TORQUE : 6.0 kgf-m
Install the wheel speed sensor (5).
•
After installing the wheel apply the brake
•
several times and then check if the wheel
rotates freely. Recheck the wheel if the
brake drags or if the wheel does not rotate
freely.
