Spark Plug Inspection - HERO XPULSE 200 PROGRAMMED FI Manual

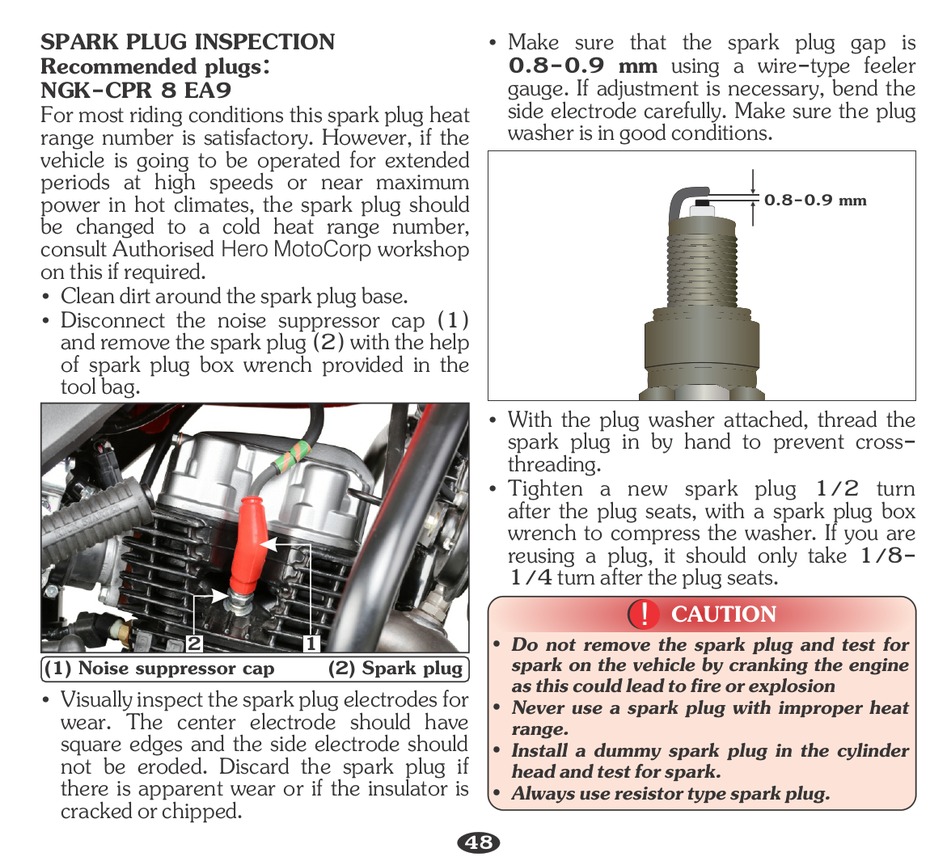

SPARK PLUG INSPECTION

Recommended plugs:
NGK-CPR 8 EA9
For most riding conditions this spark plug heat
range number is satisfactory. However, if the
vehicle is going to be operated for extended
periods at high speeds or near maximum
power in hot climates, the spark plug should
be changed to a cold heat range number,
consult Authorised
on this if required.
Clean dirt around the spark plug base.
Ÿ
Disconnect the noise suppressor cap (1)
Ÿ
and remove the spark plug (2) with the help
of spark plug box wrench provided in the
tool bag.
2
(1) Noise suppressor cap
Visually inspect the spark plug electrodes for
Ÿ
wear. The center electrode should have
square edges and the side electrode should
not be eroded. Discard the spark plug if
there is apparent wear or if the insulator is
cracked or chipped.
workshop
Hero MotoCorp
1
(2) Spark plug
Make sure that the spark plug gap is
Ÿ
0.8-0.9 mm using a wire-type feeler
gauge. If adjustment is necessary, bend the
side electrode carefully. Make sure the plug
washer is in good conditions.
With the plug washer attached, thread the
Ÿ
spark plug in by hand to prevent cross-
threading.
Tighten a new spark plug 1/2 turn
Ÿ
after the plug seats, with a spark plug box
wrench to compress the washer. If you are
reusing a plug, it should only take 1/8-
1/4 turn after the plug seats.
! !
Do not remove the spark plug and test for
•
spark on the vehicle by cranking the engine
as this could lead to fire or explosion
Never use a spark plug with improper heat
•
range.
Install a dummy spark plug in the cylinder
•
head and test for spark.
Always use resistor type spark plug.
•
48
0.8-0.9 mm
CAUTION
