Abs Indicator; Side Stand Indicator/Switch - HERO XPULSE 200 PROGRAMMED FI Manual

The switch should normally remain in "ON"
( ) position. During emergency, put the
switch to "OFF" ( ) position.
! !
While riding the vehicle in normal condition,
do not switch off the "Engine stop/kill switch"
to avoid any damage (Wheel locking leading to
accident, part damage, battery discharge etc.).

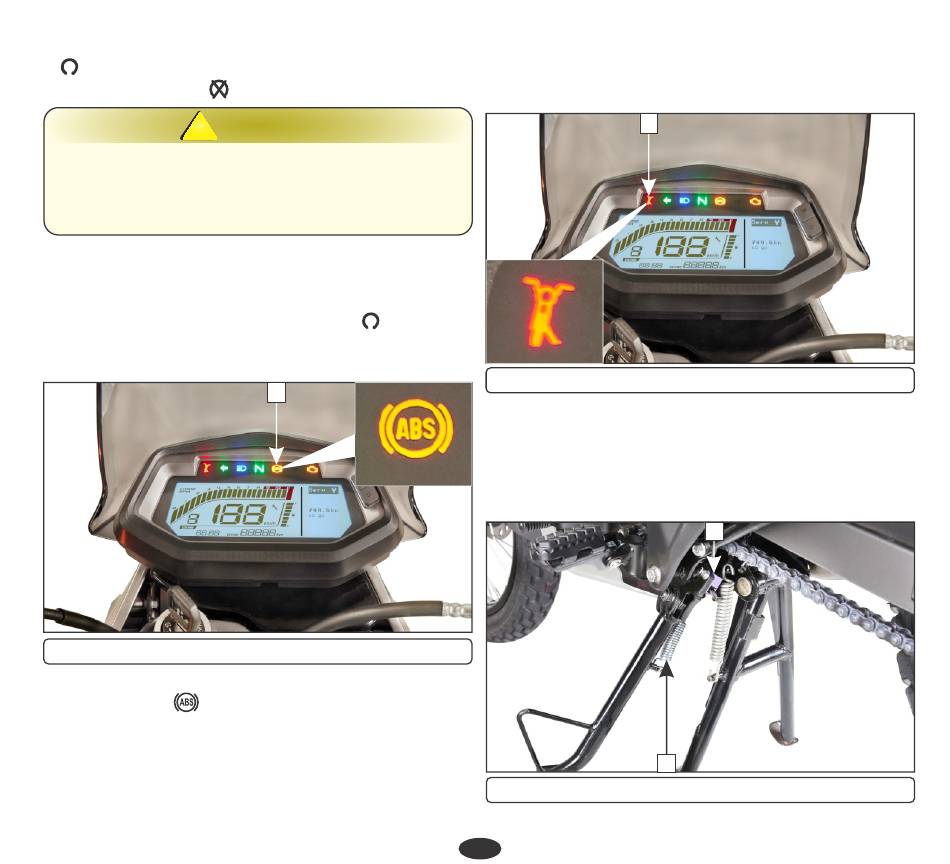

ABS INDICATOR

The ABS indicator (1) on speedometer come
"ON" for approx 1.8 seconds when the
ignition switch is turned "ON" ( ) & then
keeps blinking until the vehicle attains a speed
of 5 km/h.
(1) ABS indicator
When the system functions normally indicator
goes "OFF" ( ) once vehicle speed exceeds
5 km/h.
At any point if ABS indicator remains "ON"
then ABS is not working, but the brakes still
work normally. Reduce your vehicle speed and
visit your Authorised
Hero MotoCorp
WARNING
1
workshop.

SIDE STAND INDICATOR/SWITCH

For the safety of the customer a side stand
indicator (1) is provided.
1
(1) Side stand indicator
A side stand switch (2) is provided in the side
stand, when the side stand is down (Ignition
switch "ON"), the switch enables the side
stand indicator lamp to glow on the
speedometer panel.
(2) Side stand switch
32
2
3
(3) Side stand spring
