SETTING INTERRUPTS

The ADP5062 includes several interrupt flags to inform the
system microcontroller of a status change in the corresponding
charger function. All interrupts are disabled by default, and
each interrupt can be separately enabled by issuing an I
to Register 0x09.
The Interrupts & Timers tab (see Figure 3) in the GUI controls
the register settings. Register 0x0A is automatically read after
every 0.3 second timeout from the last user action involving the
GUI. When a certain interrupt is enabled, and there is a status
change in the corresponding function during charging, an
interrupt message is shown in the Opr Control & Status tab
(see Number 3 in Figure 2).
2
C write
1
2

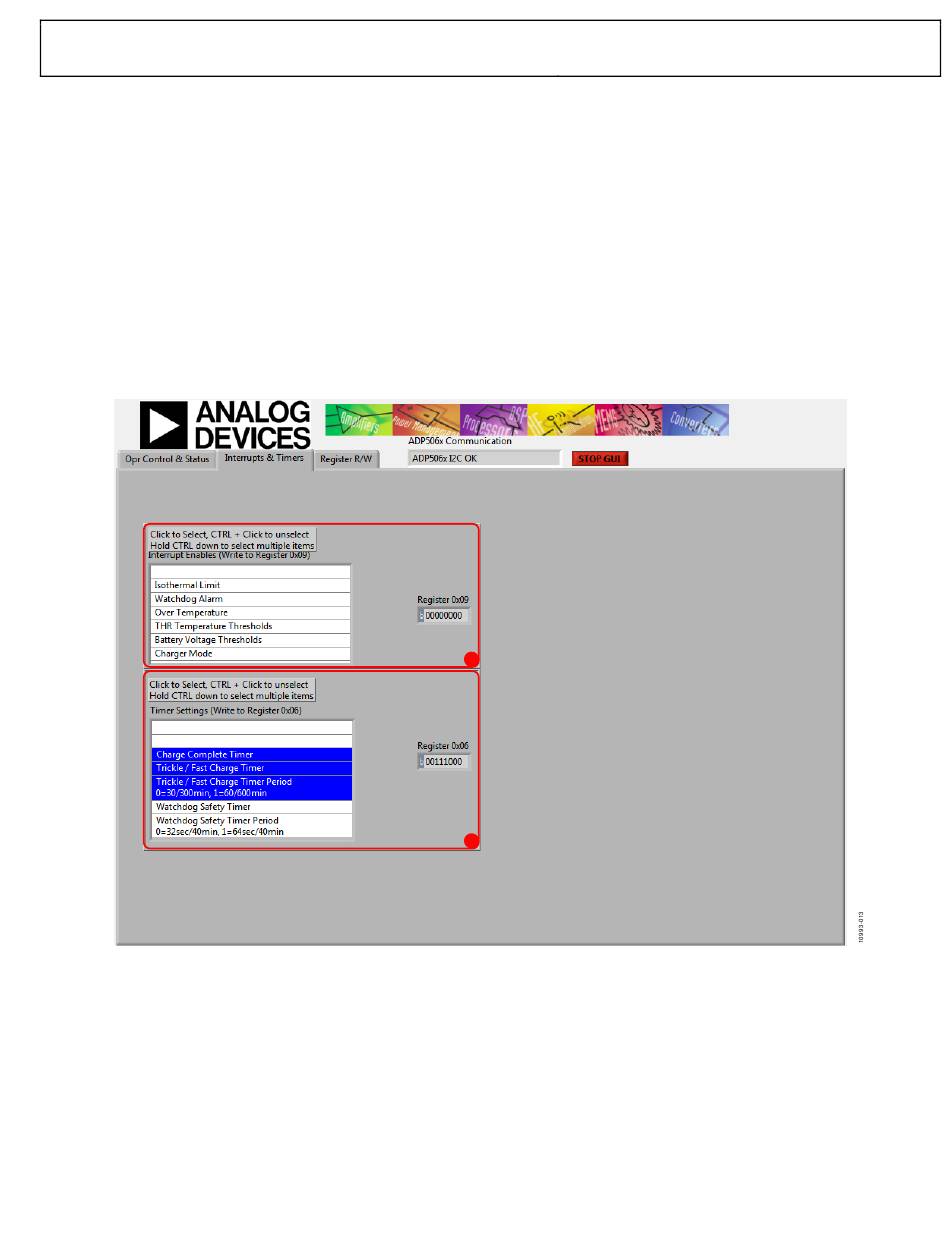

Figure 3. ADP5062 Evaluation Software GUI, Interrupts & Timers Tab
Rev. 0 | Page 5 of 15

SETTING TIMERS

The default settings of the timers are shown in Figure 3. Changing
the timer settings can be done by clicking items in the Timer
Settings (Write to Register 0x06) box.
Register 0x09 controls the interrupt enables, and Register 0x06
controls the timer settings.
