Uniq 150

2.1. Opening Uniq PC

It is needed to prepare before opening:
– thin doublesided sticker tape with width max. 15 mm, recommended Tesafix 4965 - M990089
– fragmentation sticker 17 × 50 mm - M030472
– power glue, recommended Loctite 401 - M250007
– adhesive foil 1A87015 clear ø11 mm × 2 - M030292 to overlap the buttons, protecting them against tape
glue. Adhesive foil is needed only to opening PC execution of Uniq 150.
– Phillips screwdriver
– cropping knife
Note: Removing of side profile can cause damage of buttons on the side of panel (PC execution only). We
recommend to have spare buttons - M040492.
All consumption material for openning and clossing Uniq unit is in Maintanance set with registration number
V 059000101
Disassembly process:
1. Joint of side profile is situated under the fragmentation label mostly on the bottom edge of panel. Joint
is sticked with power glue. Cut the joint with cropping knife and remove side profile.
2. There is doublesided sticker tape under the side profile layered in two plys. This must be removed too.
Note: Be careful by removing sticker tape to prevent demage of side buttons. Side buttons are in PC execu-
tion only.
3. Side buttons carefuly remove from panel, especially their part sticked on the rear cover.
4. Remove the screws arround the perimeter of the rear panel with Phillips srewdriver.
5. Now is possible to remove front cover. Open the front cover a bit and disconnect cables of rear cover.
Note: Some of connectors could be assured against unwanted disconnection with sticker tape.
Mounting process:
1. Connect cables of the covers according to mainboard type, display type and touch panel.
Description of interconnection is placed in the particular chapter. Exact interconnection of the side but-
tons cable is shown on the picture below.
2. Set up the front panel. Take care to prevent nip of some cable between any parts of the panel!
3. Set up the screws arround the perimeter of the rear panel.
4. Execute the tests.
5. If the panel consists of the side buttons (PC), stick them into the selection.
6. Buttons interferring with adhesive foil to prevent leaking a tape glue into them and stick them.
7. Stick doublesided sticker tape arround the perimeter of the panel. If the tape is more narrow than 15
mm, stick it in two plys. The first ply arround the front panel edge and the second ply arround rear panel selection
of side profile. Whole surface of the selection must be interferring with sticker tape.
8. Stick the side profile arround the perimeter of the panel. When sticking it, very gently tighten, not to peel
off the stress caused by excessive tension. If the length of the side profile is not sufficient to connect the two
ends, it is necessary to repeat the sticking profile with a little more of tension. If the length of the side profile is
bigger then it is necessary to connect the two ends, simply cut excess profile. Both ends of side profile stick with
power glue.
9. Fragmentation label stick by the side profile joint.
Elcom, spoločnosť s ručením obmedzeným, Prešov
8
Service manual Service manual
Elcom, spoločnosť s ručením obmedzeným, Prešov

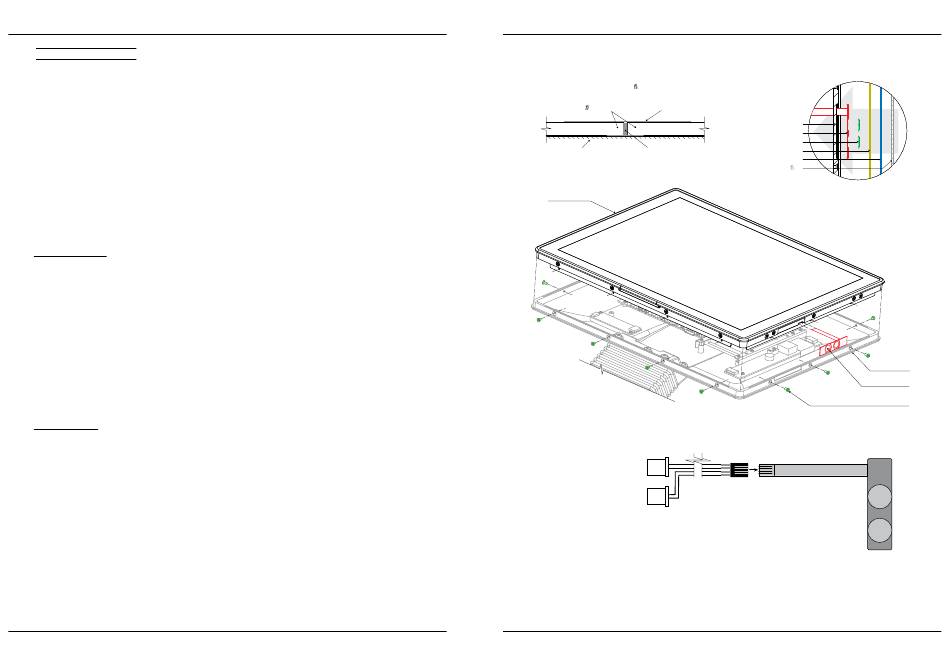

Figure 2.1.1. – Opening Uniq PC
Sticking the joint of side pro le with power glue:
side pro le joint fragmentation label
frot cover power glue
Front cover
Figure 2.1.2. – Side buttons interconnection (PC)
PWRBTN1/PWR_BTN
RESET1/RST_BTN
Uniq 150
Layers over the side buttons:
front cover
side buttons
adhesive foil
sticker tape - ply 1
sticker tape - ply 2
side pro le
Rear cover
Side buttons
Screw M2,5 × 5 mm DIN965
