2.13.3. WiFi installation into milled covers

Some of the Uniq 150 covers has already milled cavities for setting WiFi antennas. In this case is more suitable set
antennas in those cavities.
1. Screw adapter to WiFi module.
2. Connect WiFi module with adapter to miniPCI connector CN4 (N270) or CN1 (D525) of mainboard.
3. Antennas cables connect to MAIN and AUX connectors of WiFi module.
4. Stick doublesided tape on both antennas from the side of cable. Let one side of tape covered, because antennas will
be sticked already after closing front and rear cover. Stick antennas into cavities. Defat cavities before sticking.

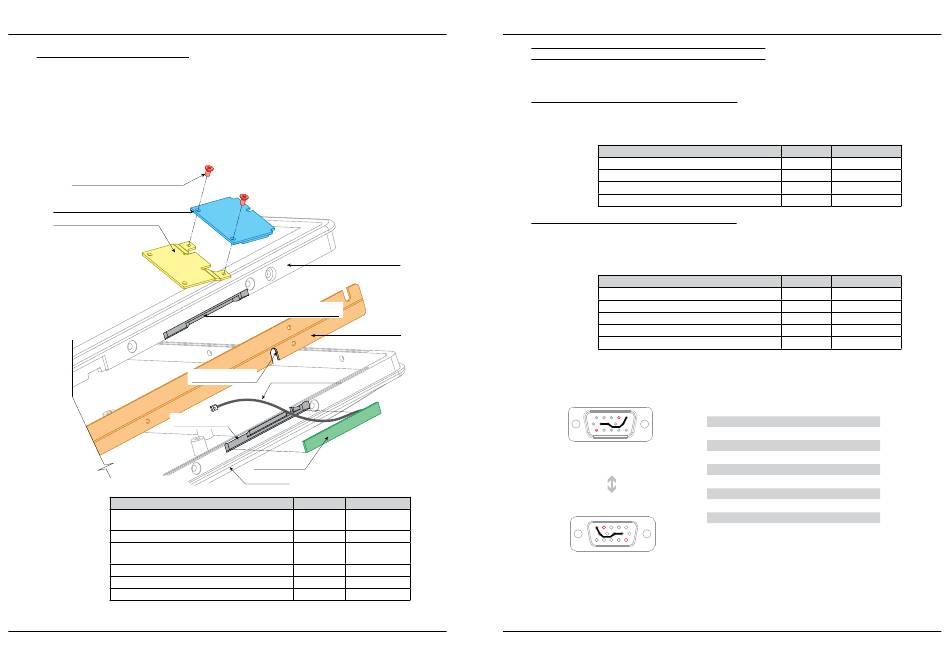

Figure 2.13.3. – WiFi installation into milled covers
Screw of MiniPCIe card adapter
WPER-101GN(BT) mini PCIe
WiFi module
Mini PCIe full size card (adapter)
side strip cutting
rear cover cavity
Needed to order
WiFi PCB antenna L = 400 mm
2,4G PCB antenna L=400mm
Doublesided sticker tape TESA 6 mm
WPER-101GN(BT) mini PCIe WiFi module
Wifi interny s BT mPCIe WPEA
Intel 6235 wifi s BT mPCIe
Mini PCIe full size card
Screw of MiniPCIe card adapter
Elcom, spoločnosť s ručením obmedzeným, Prešov
32
Service manual
Front cover
top cover cavity
Side strip
cable of WiFi antenna
WiFi antenna
Rear cover
Quantity Ord. code
2 M310022
2 M310144
2 × 50 mm M990098
M310023
1
M310122
1 M310111
1 M310024
2 M310025
Service manual

2.14. Interconnection and installation of VGA port

VGA port is connected to mainboard to connector VGA1 (Uniq PC) or to connector CN1 (Uniq Display).
Owing to VGA connector installation for Nx execution is necessary to assembly extended connectors holder.

2.14.1. Interconnection of VGA port for Nx execution

1. Insulate end of cable and put tubing on individual wires.
2. Solder connectors on the cable.
3. Soldered places cover with tubing and shrink them with hot air.
Needed to order
Tubing 1,6 × 10 mm
Flat cable RM1mm 40pin colored
Connector VGA D-SUB 15M 3-row for cable
Connector VGA D-SUB 15F 3-row for cable

2.14.2. Interconnection of VGA port for Tx execution

1. Insulate end of cable and put tubing on individual wires.
2. Solder connectors on the cable.
3. Soldered places cover with tubing and shrink them with hot air.
4. Put covers on connectors.
Needed to order
Tubing 1,6 × 10 mm
Cable CAB8 9 × 0,22 mm shielded
Connector VGA D-SUB 15M 3-row for cable
Connector VGA D-SUB 15F 3-row for cable
Covers for Canon 9
* Use 2 m of cable for 50 cm TH and 3 m of cable for 130 cm TH.
Figure 2.14. – Interconnction of VGA port
1 5
6 10
11 15
Front view
to conn. VGA1 on MB (15M)
external VGA conn. (15F)
5 1
10 6
15 11
Front view
In this case is VGA connector led on own cable out of device. Lenght of cable depends on stand hight
or following individual needs.
Elcom, spoločnosť s ručením obmedzeným, Prešov
Uniq 150
Quantity Ord. code
20 M010003
0,3 m M200155
1 M190119
1 M190029
Quantity Ord. code
20 M010003
2 m/3 m * M200009
1 M190119
1 M190029
2 M190006
D-SUB HD 15M D-SUB HD 15F
1 — 1
2 — 2
3 — 3
5, 7, 8, 10 — 5, 7, 8, 10
6 — 6
9 — 9
12 — 12
13 — 13
14 — 14
15 — 15
Pin number 5, 7, 8 and 10 solder together on both
connectors and lead them through one wire.
Pin number 4 and 11 do not connect.
33
