Uniq 150

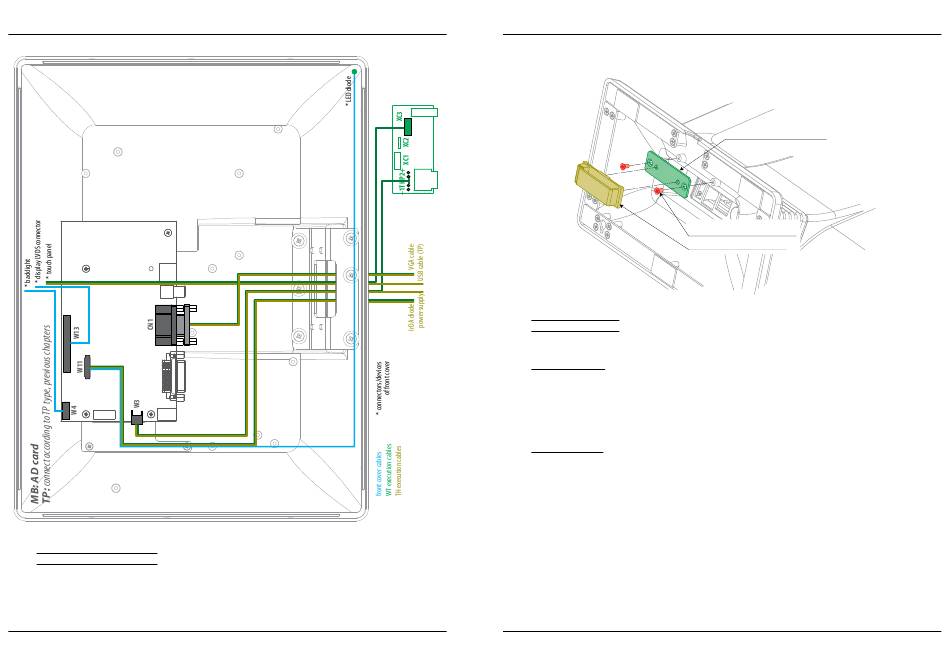

Backlight cable interconnection for AUO kit:

2.6. Cable holder removal

1. Plastic holder part is fixed on and metal holder part with its latches clip in holes in metal part. Demaged
plastic part remove by ligation with flat screwdriver.
2. Metal holder part is fixed with two screws. When removing plastic part, it is not necessary to remove
also metal holder part.
Elcom, spoločnosť s ručením obmedzeným, Prešov
18
Service manual Service manual
3.

2.7. Stand removal

2.7.1. Nx executions

Note: After leg removal disconnect Uniq 150 from electrical system and other devices!
1.
2.
Note: Note leg orintation! Gap for cables lead backward by N1 and N2 execution (N2 is standard), and forward

2.7.2. Tx executions

Note: After leg removal disconnect Uniq 150 from electrical system and other devices!
1.
from Tube Holder.
2.
3.
Note: Note, that Tube Holder execution consists of cables, which are connected tightly inside of Uniq 150 and
Elcom, spoločnosť s ručením obmedzeným, Prešov
A new plastic holder part press into metal part.
Figure 2.6. – Cable holder removal
Skrutka M3 × 4 mm DIN7985A
Plastový držiak káblov Uniq
Division of Uniq 150 according to stand execution is described in chapter Hinge set.
Remove connectors cover fixed with two screws.
Release four Allen screws to remove Uniq 150 leg.
by N3, N4 and N5 execution.
Release two Allen screws fixing front and rear hinge part. Release the screws cause release Uniq 150
Take the front hinge part out of Tube Holder gap.
Release four Allen screws to remove hinge.
they going through inside of Tube Holder stand! We recommend dismount Uniq 150 and disconnect/
release all cables lead through Tube Holder before you put Uniq 150 from Tube Holder (chapter Opening
Uniq PC).
Figure 2.7.1. – Nx execution
Uniq 150
Plech držiaka káblov Uniq
