Uniq 150
a. Cable with connectors split in half and insulate wire ends. Only one half of the cable will be used.
b. Slit tubings on the cable wires and solder it to the reader cable.
c. Cover soldering with tubing and shrink it with hot air.
5. Adjusted reader cable connect to mainboard, connector USB01 (N270) or USB2 (D525).
6. Fix reader holder on Uniq 150 with screws M2,5 × 10 mm DIN965 after covers are closed and side profile
is sticked.
7. Fix reader to reader holder with screws 3 × 8 mm BN82427. Reader cable must be tucked completly
inside!

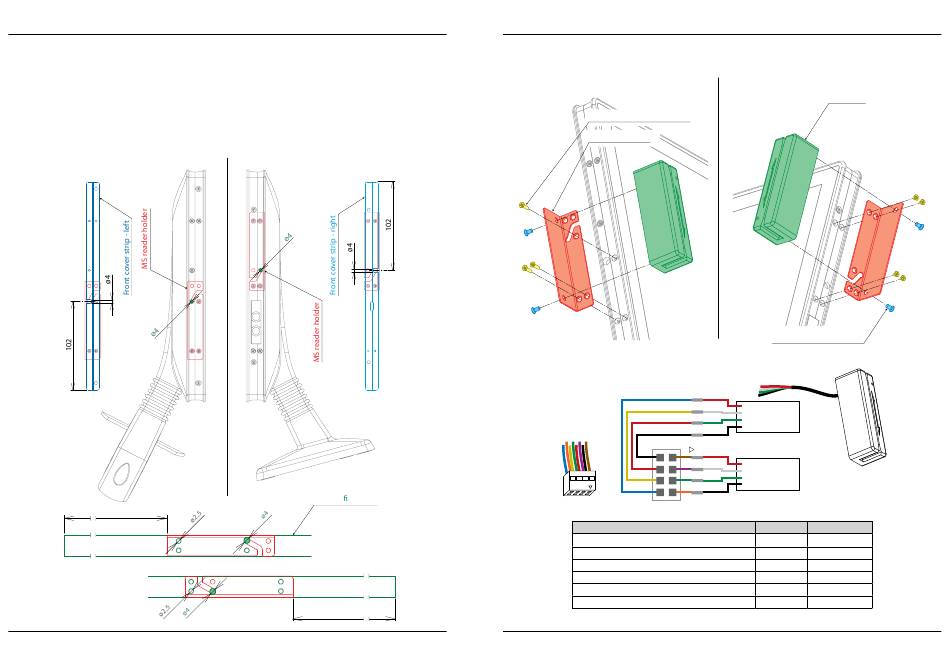

Figure 2.10.1. – MS reader installation – strips
Tx components adjustment
cca 320
Elcom, spoločnosť s ručením obmedzeným, Prešov
26
Service manual
Nx components adjustment
Side pro le (gum)
cca 210
Service manual
Figure 2.10.2. – MS reader installation
Tx components adjustment
Screw M2,5 × 10 mm DIN965
MS reader holder
Figure 2.10.3. – Alternatíves of MS reader interconnection
1
1
Needed to order
Tubing 1,6 × 10 mm
Screw M2,5 × 10 mm DIN965 conical
Screw 3 × 8 mm BN82427 conical
Magnetic stripe reader
MS reader holder
Cable 8-wires 250 mm 28 AWG 2H
Elcom, spoločnosť s ručením obmedzeným, Prešov
Uniq 150
Nx components adjustment
MS reader
Screw 3 × 8 mm BN82427
red
MS
white
green
reader
black
red
MS
white
green
reader
black
Quantity Ord. code
4 M010003
3/4 * M250207
2 M250208
1 M310028
1 M051066
1 ** M200143
