2.14.3. Installation of VGA connctor holder into leg

Holder of extended connctors is set for Uniq Display 150. Serves to fit display connector into leg with
maintaining original features of Uniq Display 150, both in terms of protection IP.
1. Fix connector on VGA connector holder of Uniq Display 150. Screw are part of the connector.
2. Holder fix to leg with screws of connectors cover and also with screws of the longest leg strip, which are part of
original leg and remains from previous step. Lead connctor cable between holder and leg. Description of cables
interconnection is in individual chapter.
3. Set new leg strips into leg with screws remained from previous steps.

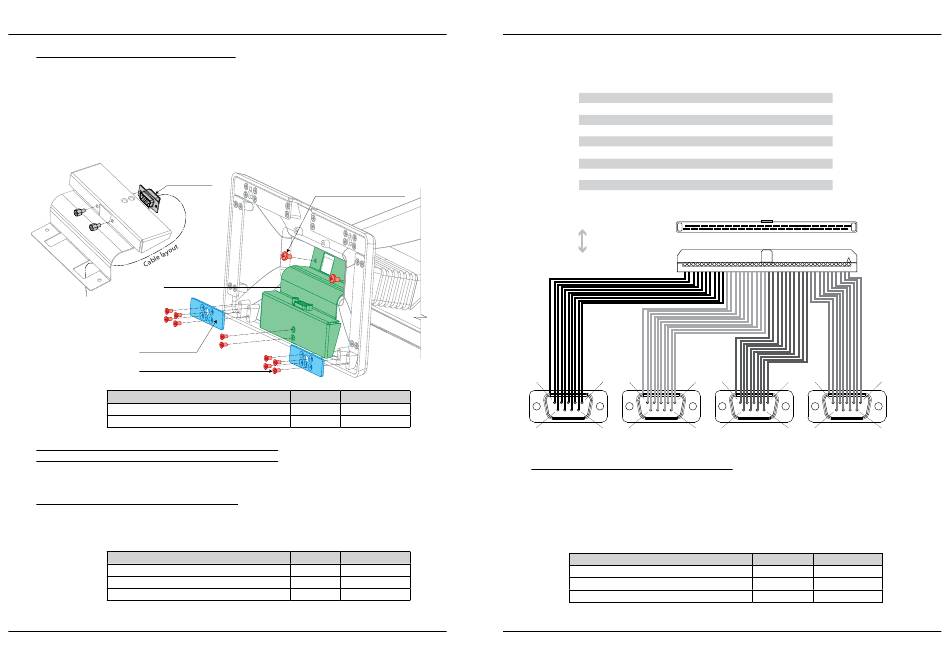

Figure 2.14.3. – Installation of VGA connctor holder into leg
connector
and its screws
Holder of
VGA connector
Leg strip
of ext. connectors
Screw M3 × 6 DIN965 conical
Needed to order
Leg strip 2.0 Devlyx/UniqPC
Holder of VGA connector

2.15. Installation and interconnection of COM ports

Com ports are connected to mainboard to COM connector. It is necessary to install extended connector
holder for Nx execution.

2.15.1. Com ports interconnection for Nx execution

1. Dismount D-SUB connector and solder it on cable.
2. Mount D-SUB connector.
3. Opposit end of cable put in self tapping connector.
Needed to order
Cable flat RM1mm 40pin colored
Self tapping connector 40 pin RM = 2 mm
Connector D-SUB 9M on cable
