2.22.1. VGA cable to interconnection of Uniq 150 with TDC-5000

1. Insulate cable on both ends and put tubing on particular wires.
2. Solder connectors on the cable.
3. Cover soldered places with tubing and shrink them with hot air.
4. Put covers on the connectors.
Figure 2.22.1. – VGA cable to interconnection of Uniq 150 with TDC-5000
1 5
6 10
11 15
Front view
to VGA conn. of Uniq 150 (15M)
to VGA conn. of TDC-5000 (15M)
1 5
6 10
11 15
Front view
Needed to order
Tubing 1,6 × 10 mm
Cable CAB8 9 × 0,22 mm shielded
VGA connector D-SUB 15M 3-row on cable
Cover for Canon 9

2.23. Installation of ED-5000 to Uniq 150

Installation means conjunction Uniq 150 and ED-5000 to a one device. ED-5000 and Uniq 150 as one
device loose its IP protection class!

2.23.1. Adjustment of ED-5000 leg

1. Adjust display leg according to figure. Leg should just sat on rear Uniq 150 cover.
2. Spread Loctite 403 power glue arround the perimeter of insert and put the insert into the display leg.
3. Put display leg in rear display cover according to figure.
4. Put arresting part in rear display cover. First put the lockers of arresting part (marked with arrows) into the locker
holes (also marked with arrows).
5. Then fix arresting part to the rear display cover with screws.
Note: It must be possible to turn display leg aside the display cover. Leg must carry the display weight but also
inclination must be adjustable.
Needed to order
Insert of UniqPC/ED5000 leg 20 × 7,3 × 11 mm
Elcom, spoločnosť s ručením obmedzeným, Prešov
46
Service manual
D-SUB HD 15M D-SUB HD 15M
1 — 1
2 — 2
3 — 3
5, 7, 8, 10 — 5, 7, 8, 10
6 — 6
9 — 9
12 — 12
13 — 13
14 — 14
15 — 15
Pin number 5, 7, 8 and 10 solder together on both
connectors and lead them through one wire.
Pin number 4 and 11 do not connect.
Quantity Ord. code
20 M010003
250 mm M200009
2 M190119
2 M190006
Quantity Ord. code
1 M040571
Service manual

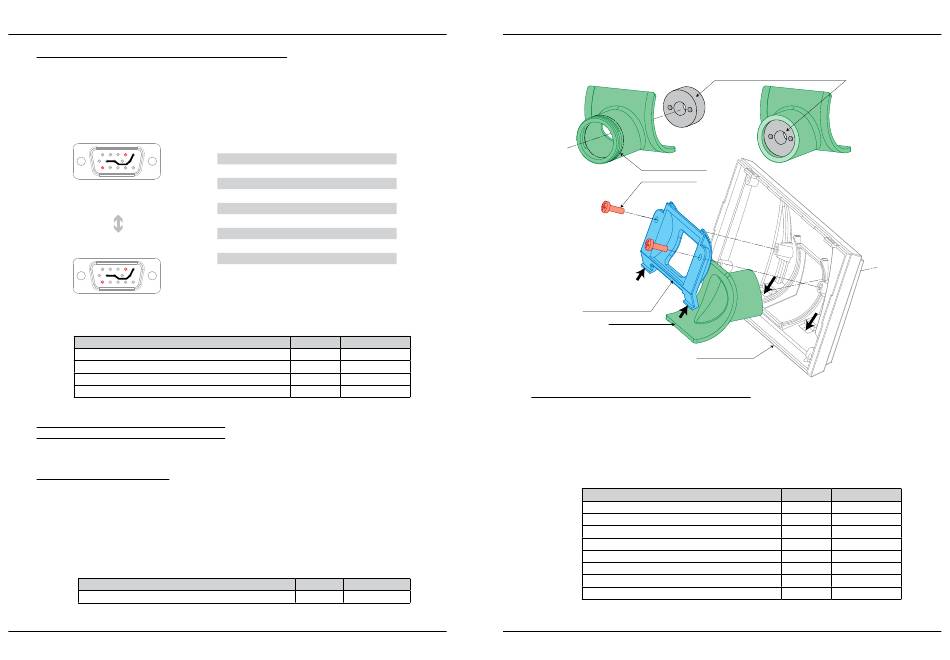

Figure 2.23.1. – Adjustment of ED-5000 leg
