2.11. RF reader installation
1. Cut red marked area of components before installation.
2. Skip two particular screws at the installation of bottom strip.
3. Also skip two particular screws at the rear and top cover closing.
4. Adjust lenght of USB cable to approximately 200 mm and move it through cutting in side profile. Cable type
depends to type of free USB connector on mainboard.* Solder cable to reader. It can happen, that the piece
which is installation executed on, already consists cabel with free wires.
Note: It is not possible to move cable through hole in side profile after soldering.
5. Stick reader on bottom box cover with two layers of doublesided thick sticker tape to provide bigger gap
between module and bottom box cover.
6. Put upper box cover on bottom cover.
7. Connect USB cable to free USB connector on mainboard.
8. Fix reader holder to the Uniq 150 after closing Uniq 150 covers and installation side profile.
9. Bond reader to the holder with doublesided sticker tape. Reader cable must be tucked completly inside!

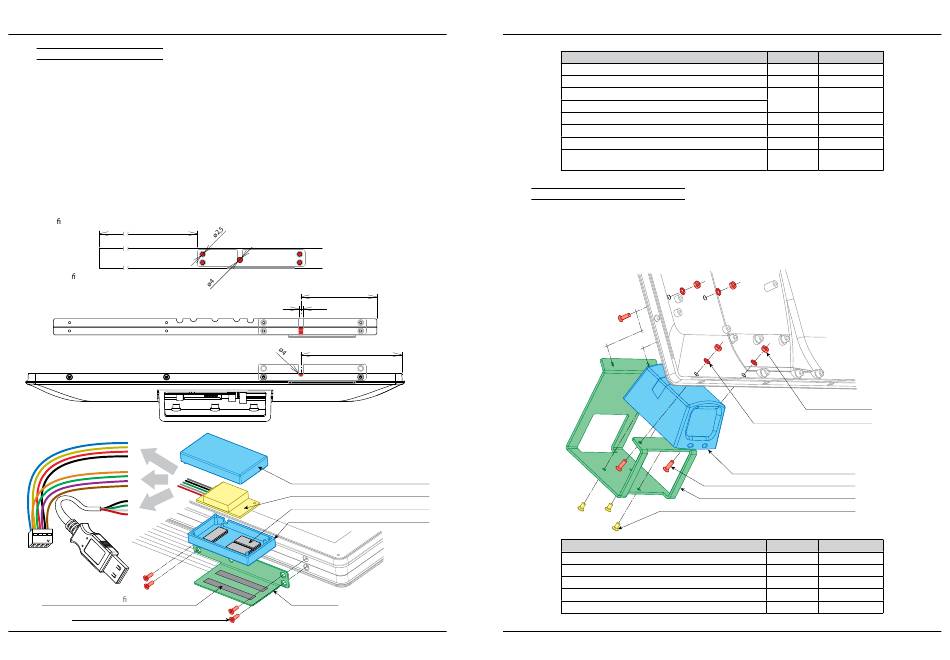

Figure 2.11. – RF reader installation
Side pro le adjustment
cca 150
Start side pro le stick at the cutting
in case of RFID module installation.
Bottom strip adjustment
Rear cover adjustment
Alternatives of RF reader interconnection
4
3
2
1
1
shielding
2
3 4
3
1 2
4
4
3
2
1
1
Doublesided tape Tesa x 4965 9 × 55 mm
Screw M2,5 × 8 DIN965 kužeľová
Elcom, spoločnosť s ručením obmedzeným, Prešov
28
Service manual
72
4
94
Box PS17 × 35 × 65 KM57 top cover
USB RFID reader ID12
Doublesided thick tape 9 × 20 mm
Box PS17 × 35 × 65 KM57 bottom cover
RFID holder
Service manual
Needed to order
Doublesided tape Tesafix 4965 9 × 55 mm
RFID holder
Box PS17 × 35 × 65 KM57 bottom cover
Box PS17 × 35 × 65 KM57 top cover
USB RFID reader ID12
Doublesided thick tape 9 × 20 mm
Screw M2,5 × 8 DIN965 conical
USB extension cord AF, AM 1m
Cable 8-wires 250 mm 28 AWG 2H
2.12. Barcode reader installation
1. Drill holes to rear cover for screws before installation.
2. Fix reader to holder.
3. Fix holder to rear cover. We recommend spread a bit of fixation sealant thread to ensure against loosening nuts.
4. Reader cable connect to one of external USB ports in leg or tube.
Figure 2.12. – Barcode reader installation
Needed to order
Screw M3 × 6 DIN965 conical
Sealant PERMABOND HM129
Nut M3 DIN934
Barcode reader holder
Screw M3 × 10 DIN965 conical
Elcom, spoločnosť s ručením obmedzeným, Prešov
Uniq 150
Quantity
Ord. code
2
M990089
1
M051087
1
M040580
1
M310020
6
M990050
4
M250215
M200141
1 *
M200143
Nut M3 DIN934
Serrated lock washer M3 DIN6798
Barcode reader MS-1207FZY-1000R
Screw M3 × 10 DIN965 conical
Barcode reader holder
Screw M3 × 6 DIN965 conical
Quantity
Ord. code
3
M250175
PP
M060146
4
M250030
1
M051090
4
