Installation Of Ed-5000 On Rear Uniq Pc 150 Cover; Installation Of Uniq Pc And Uniq Display On One Tube Holder - ELCOM Uniq 150 Service Manual

Uniq 150

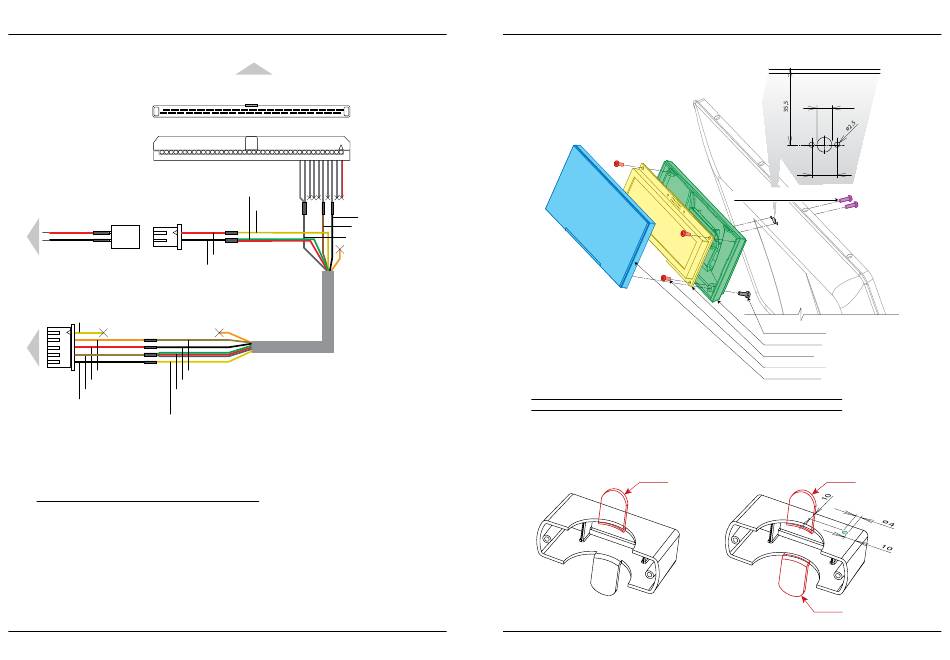

Figure 2.23.2. – Cable to interconnection of Uniq PC 150 with ED-5000
COM connector of mainboard
40
connector XC1
on PCB Pico Power
--------------------------
connector J1
on mainboard (D525)
(+)
(–)
connector XC2
inside of ED-5000 display
yellow – the wire remove from connector
orange brown
red glossy black
brown green
red
black
matte black – shielding
yellow
Note: Aslo it is possible to connect the display to any COM port on 40 -pin connector. Only the first COM port
connection is shown on figure. Each next 10 pins of the connector is next COM port.
Note: Display ED-5000 connected to Uniq PC 150 occupy one communication port. It is possible connect only
display communicated via RS-232 protocol!

2.23.3. Installation of ED-5000 on rear Uniq PC 150 cover

1. Adjust rear Uniq PC 150 cover according to figure and dismount ED-5000 display.
2. Cable move through hole in the Uniq 150 cover and through leg with rear display cover.
3. Solder the cable with 5-pin connector and the DB 9F cable. Cover soldered places with tubing. Connect 5-pin
connector to XC2 connector of display PCB.
4. Assembly display.
5. Now fix the display to the rear Uniq 150 cover with screws 3 × 16 mm.
6. Connect large connector on the other end of cable to COM connector of mainboard.
7. Free end with 2-pin connector solder to:
N270: pads of XC2 connector of Pico Power, red to (+) and black to (–)
D525: connector J1, red to (+) and black to (–)
Elcom, spoločnosť s ručením obmedzeným, Prešov
48
Service manual
Top view, opened
1
Front view, closed
green
red
yellow
black
brown
matte black – shielding
red
black
Soldering of cable with 5-pin connector
execute after placing the cable
in display leg through rear cover of Uniq PC 150!
Service manual
Figure 2.23.3. – Installation of ED-5000 on rear Uniq PC 150 cover

2.24. Installation of Uniq PC and Uniq Display on one Tube Holder

It is important the holder of Uniq Display is situated over the holder of Uniq PC because of IrDA diode controlling
Uniq Display via remote control.
Interconnection between devices is executed via cable described in chapter Installing of TDC-5000 with Uniq 150.
Figure 2.24. – Installation of Uniq PC and Uniq Display on one Tube Holder
remove
Uniq PC
Elcom, spoločnosť s ručením obmedzeným, Prešov
Uniq 150
ø7
12
Screw 3 × 16 mm BN82428
Screw 2,9 × 6,5 mm
Rear display cover
Display module
Screw 2,9 × 6,5 mm
Display apperture
remove
Uniq Display
remove
49
