2.3. PCB invertor and PCB TP controler replace

2.3.1. AUO touch panel with DLC display

1. Release two screws of PCB and disconnect its cables (interconnection described in particular chapter).
Note: Orientate PCB right owing to its connectors and cable layout.
for capacitive controller
TP controller
Note: PCB TP controller for capacitive technology is fixed to rear cover similar as AUO resistive with one of
two screws is set to another column.

2.3.2. eTurbotouch touch panel

Unlike AUO touch panel, the eTurbotouch panel has its PCB TP controller sticked with doublesided
sticker tape on the front panel display. If another display type as DLC is used, PCB invertor is not necessary.
Disconnect cables of PCB before its dismounting (interconnection is described in particular chapter).
The PCB is connected to touch panel with two flat cables of various width, therefore it is necessary to ensure
that it was placed according to those cables during sticking.

2.4. HDD replace

1. Release the four screws at the end of metal strips fixing HDD to rear cover and disconnect its cables.
There is a distance column sticked in the cover, under one of the screws
Note: We recommend set cables according to original layout! It is necessary to memorize the layout before
dismounting of HDD
2. Strips are fixed to HDD with next four screws through insulation pads for better shock absorbtion.

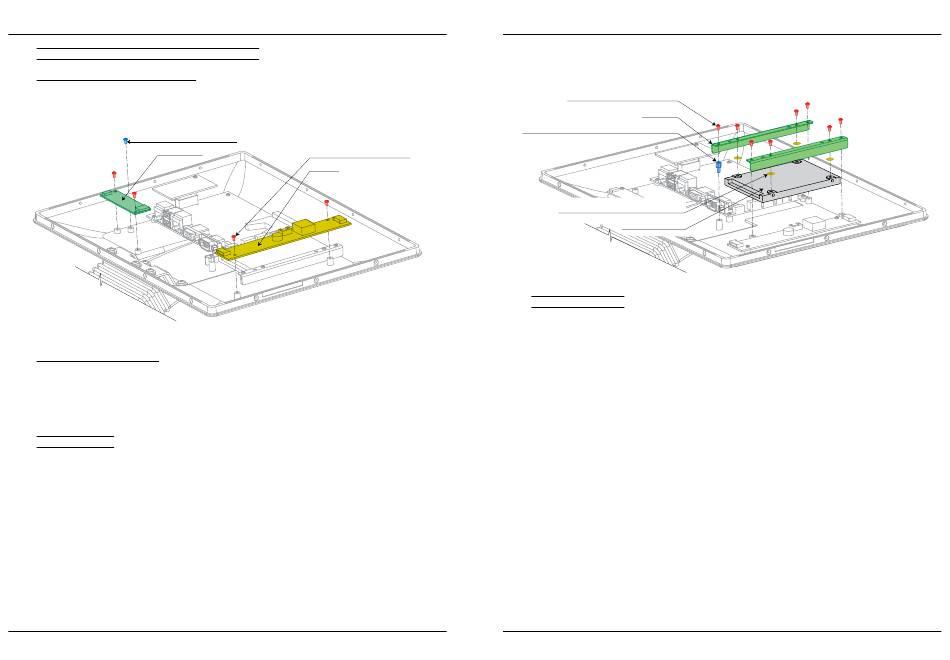

Figure 2.4. – HDD replace
Elcom, spoločnosť s ručením obmedzeným, Prešov
14
Service manual
Figure 2.3.1.
Screw M3 × 4 mm DIN7985A
Invertor
Service manual
Screw M3 × 4 mm DIN7985A
HDD strip
Distance column M3 × 5 × M3 mm BN3321
Insulation pad ø3 × ø8,2 × 0,5 mm
Hard Disk (HDD)

2.5. Interconnection

Figure 2.5.1. – Interconnection for N270 and AUO
Elcom, spoločnosť s ručením obmedzeným, Prešov
Uniq 150
15
