Rekluse RadiusX FTR 1200 Installation & User Manual page 16

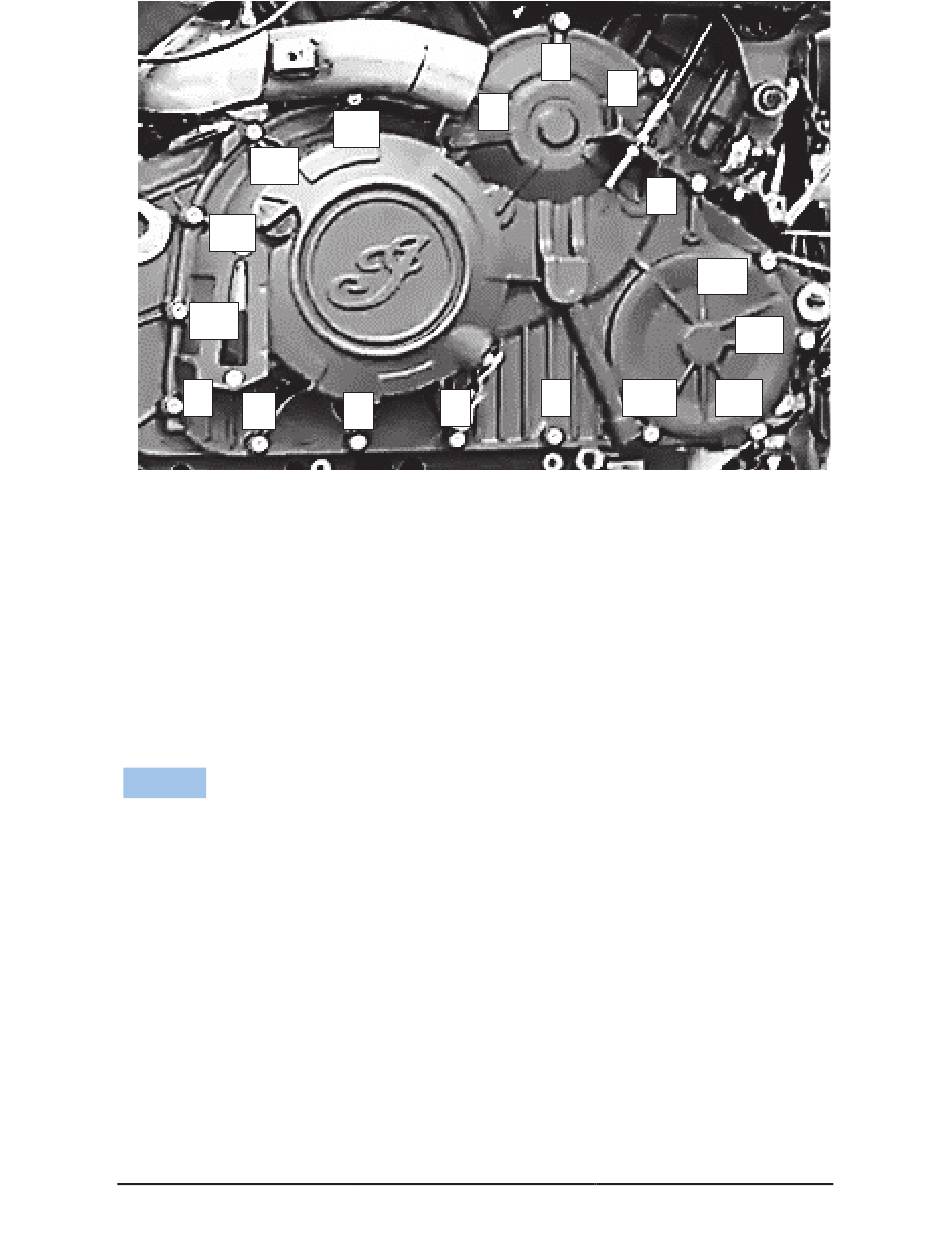

10
12
15
4
1
5. Reattach the clutch cable to the actuator arm.
6. Reinstall the clutch cable to the engine case, but do not
adjust the cable, cable adjustment will occur when setting
Free Play Gain.
7. Reinstall both oil drain plugs, torque to 15 ft-lbs (20 Nm)
and fill with oil to factory specifications (oil and filter
change approximately 4 US quarts).
NOTE: Make sure to reinstall the sealing washers to the
drain plug bolts before reinstalling the bolts
8. Install the head pipe assembly.
9. Install the head pipe fasteners and torque to 16 ft-lbs (22-
Nm).
10. Position the two exhaust clamps and torque to 144 in-
lbs (16 Nm).
11. Plug in the oxygen sensor connector from the front
header pipe.
Pg. 16
6
11
9
3
Doc ID: 191-6216200A
Doc Rev: 081720
2
5
7
16
8 13 17
14
