Changing the EXP springs

Use the following steps to change the EXP spring
configuration. It is NOT necessary to disassemble the EXP
halves to change springs!

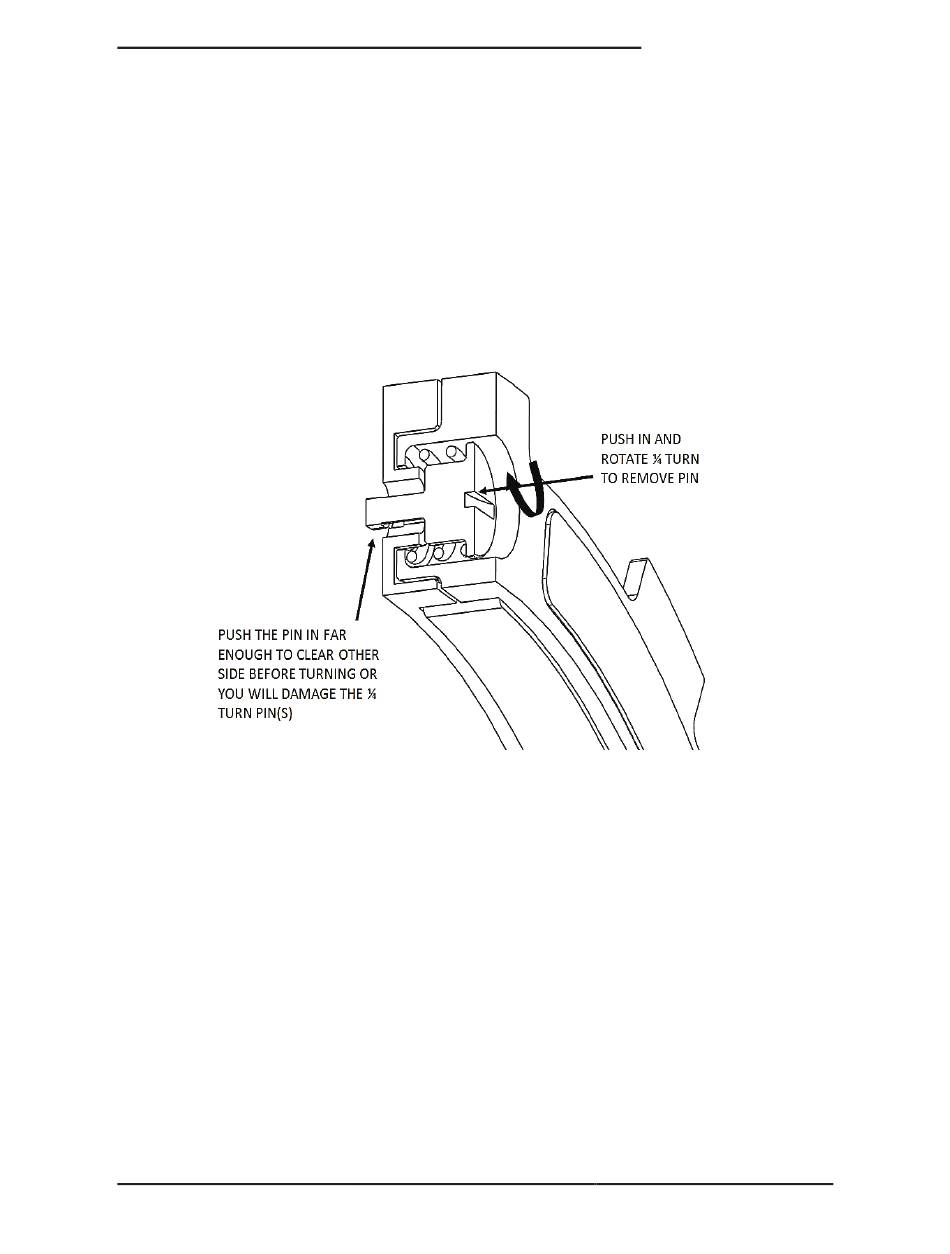

1. Using a flat-blade screwdriver, push the ¼ turn pin in far
enough to clear the opposite side of the EXP to unlock
the pin.
2. With the pin still pushed past the base, turn 90° to
remove the pin and spring.
3. Remove the remaining 2 pins and springs from the EXP
base.
