SET THE INSTALLED GAP

The "installed gap" is the separation in the clutch pack
created by the tension adjusted into the clutch cable. This
gap is what allows the clutch to spin freely until the desired
RPM is reached for engagement. The installed gap must be
set correctly.
1. At the clutch perch set the adjuster to the mid-point.
2. Next, at the cable adjuster, turn the top nut clockwise until
there is no free play in the lever.
3. Once there is no free play in the lever turn the top nut
clockwise an additional 6 complete turns to lift the
pressure plate. This is your starting point and not the
final adjustment.
4. Check Free Play Gain (next section) to adjust the cable
tension to its final setting. If there is not enough Free
Play Gain, turn the cable adjuster counterclockwise until
Free Play Gain is within specification. Turn the cable
adjuster clockwise if there is too much Free Play Gain
until the Free Play Gain is within specification.
NOTE: Free Play Gain specification is between 1/8"-1/4"
(3mm-6mm) lever movement
5. Once proper Free Play Gain is achieved, tighten the jam
nut.
Pg. 18

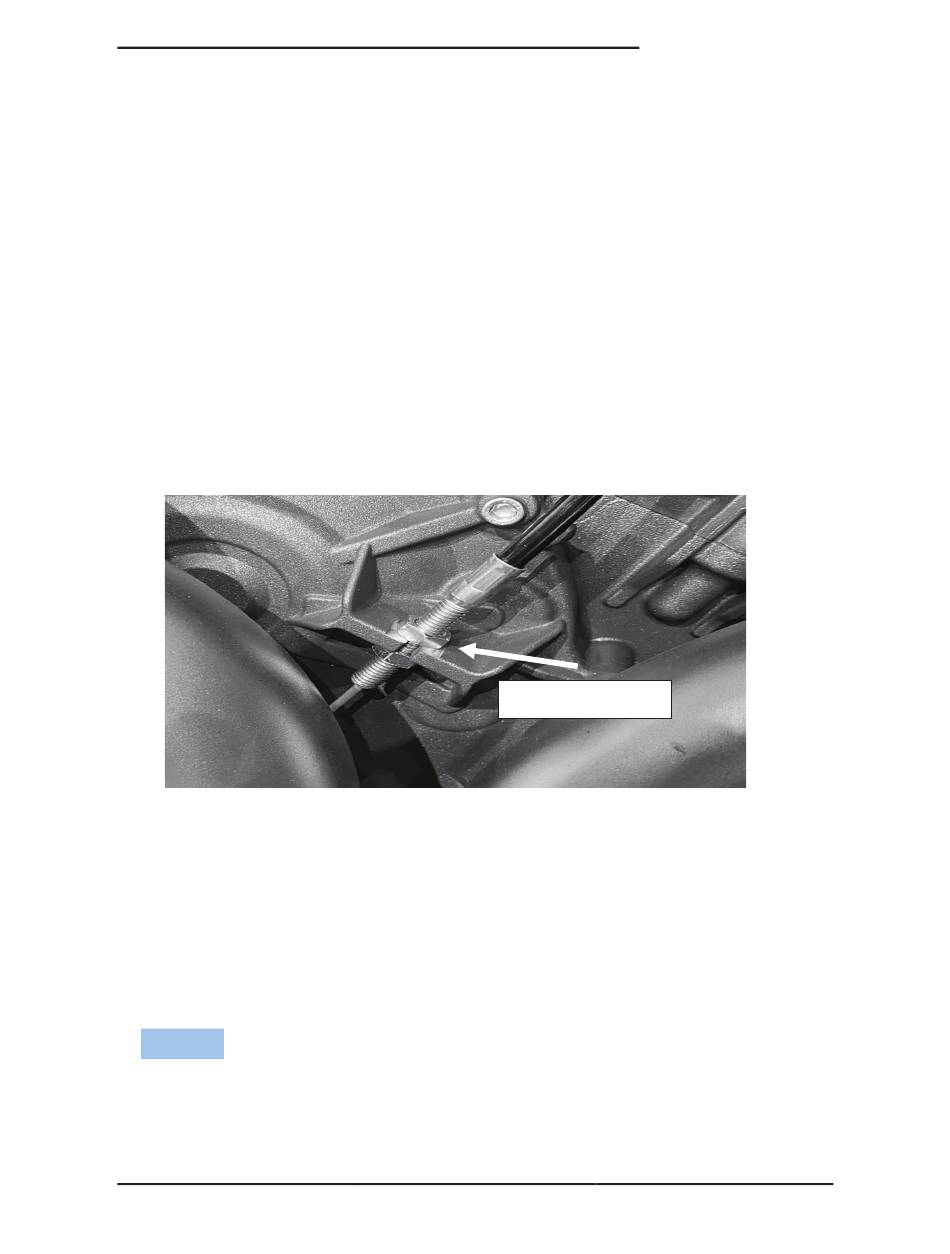

Cable adjuster
Doc ID: 191-6216200A
Doc Rev: 081720
