PRESSURE PLATE INSTALLATION

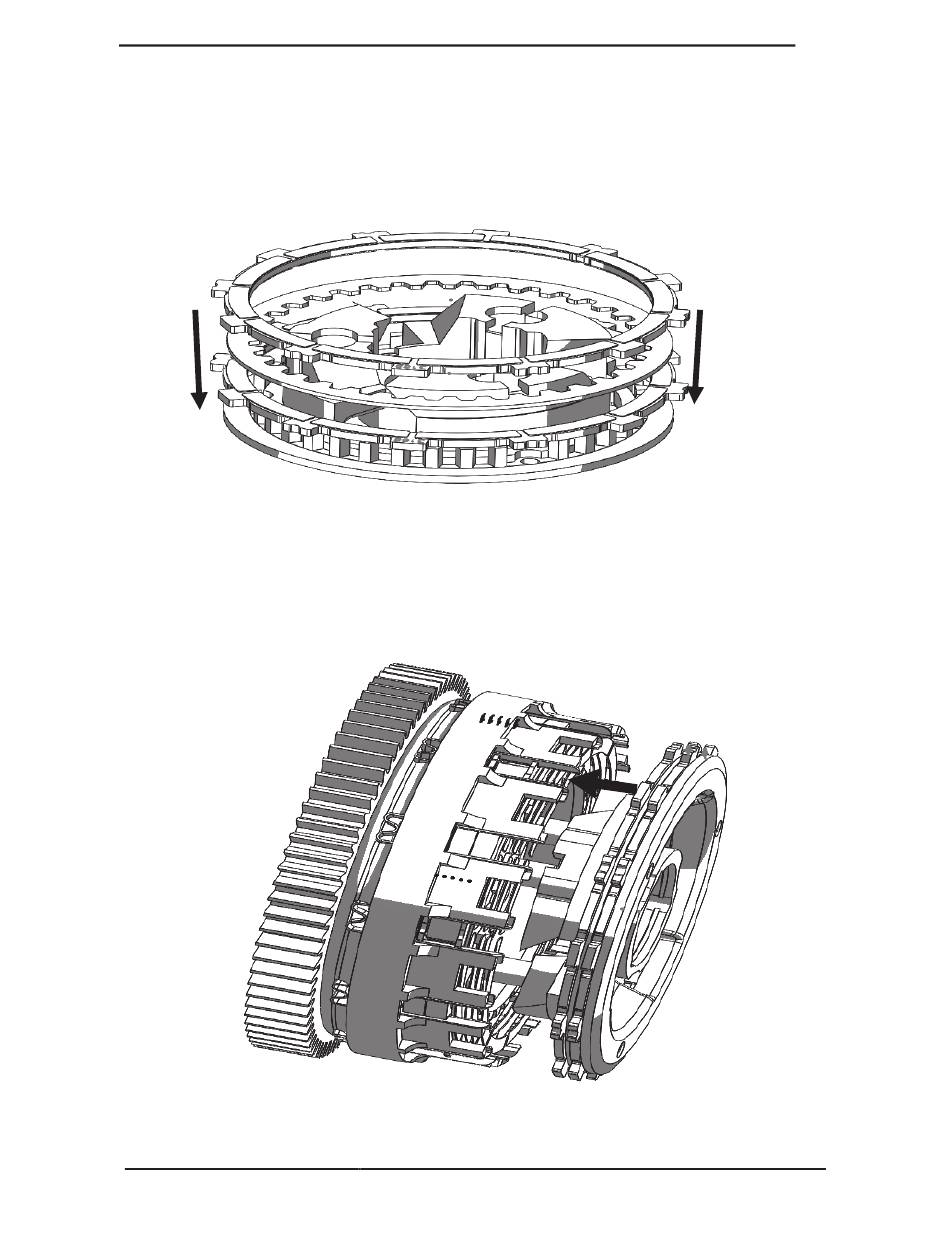

1. Turn the pressure plate over onto a work bench. Place
one .150" thick friction disk on to the pressure plate.
2. Next place the .065" drive plate on to the pressure plate
and place the last .150" thick friction disk.
3. To install the pressure plate, hold onto the friction tabs
and pressure plate, align the pressure plate with the
center hub and the friction tabs with the basket tangs.
Doc ID: 191-6216200A
Doc Rev: 081720
Pg. 13
