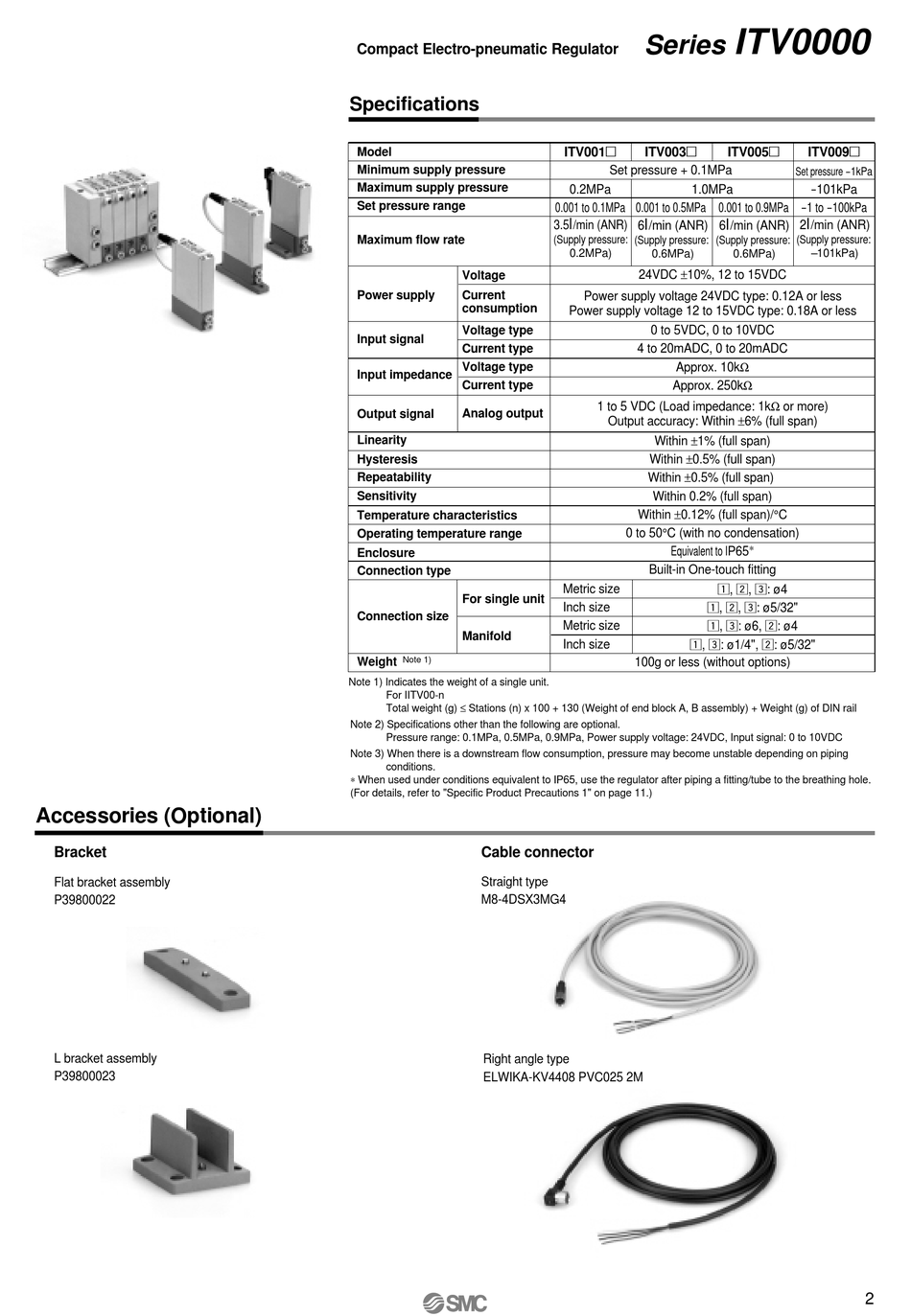

Specifications; Accessories (Optional) - SMC Networks ITV0000 Series Manual

Accessories (Optional)

Bracket
Flat bracket assembly
P39800022
L bracket assembly
P39800023
Compact Electro-pneumatic Regulator

Specifications

Model
Minimum supply pressure
Maximum supply pressure
Set pressure range
Maximum flow rate
Voltage
Power supply Current
consumption
Voltage type
Input signal
Current type
Voltage type
Input impedance
Current type
Output signal Analog output
Linearity
Hysteresis
Repeatability
Sensitivity
Temperature characteristics
Operating temperature range
Enclosure
Connection type
For single unit
Connection size
Manifold
Note 1)
Weight
Note 1) Indicates the weight of a single unit.
For IITV00-n
Total weight (g) ≤ Stations (n) x 100 + 130 (Weight of end block A, B assembly) + Weight (g) of DIN rail
Note 2) Specifications other than the following are optional.
Pressure range: 0.1MPa, 0.5MPa, 0.9MPa, Power supply voltage: 24VDC, Input signal: 0 to 10VDC
Note 3) When there is a downstream flow consumption, pressure may become unstable depending on piping
conditions.
∗ When used under conditions equivalent to IP65, use the regulator after piping a fitting/tube to the breathing hole.
(For details, refer to "Specific Product Precautions 1" on page 11.)
Cable connector
Straight type
M8-4DSX3MG4
Right angle type
ELWIKA-KV4408 PVC025 2M
Series
ITV001 ITV003
Set pressure + 0.1MPa
0.2MPa 1.0MPa
0.001 to 0.1MPa 0.001 to 0.5MPa 0.001 to 0.9MPa
3.5 l /min (ANR) l
6 /min (ANR) 6
(Supply pressure:
(Supply pressure: (Supply pressure:
0.2MPa) 0.6MPa)
24VDC ±10%, 12 to 15VDC
Power supply voltage 24VDC type: 0.12A or less
Power supply voltage 12 to 15VDC type: 0.18A or less
0 to 5VDC, 0 to 10VDC
4 to 20mADC, 0 to 20mADC
Approx. 10kΩ
Approx. 250kΩ
1 to 5 VDC (Load impedance: 1kΩ or more)
Output accuracy: Within ±6% (full span)
Within ±1% (full span)
Within ±0.5% (full span)
Within ±0.5% (full span)
Within 0.2% (full span)
Within ±0.12% (full span)/°C
0 to 50°C (with no condensation)
Equivalent to IP65
Built-in One-touch fitting
z, x, c: ø4
Metric size
z, x, c: ø5/32"
Inch size
Metric size z, c: ø6, x: ø4
z, c: ø1/4", x: ø5/32"
Inch size
100g or less (without options)
ITV0000
ITV005 ITV009
Set pressure -1kPa
-101kPa
-1 to -100kPa
l 2 l /min (ANR)
/min (ANR)
(Supply pressure:
0.6MPa)
–101kPa)
∗
2
