ITV0000

Series

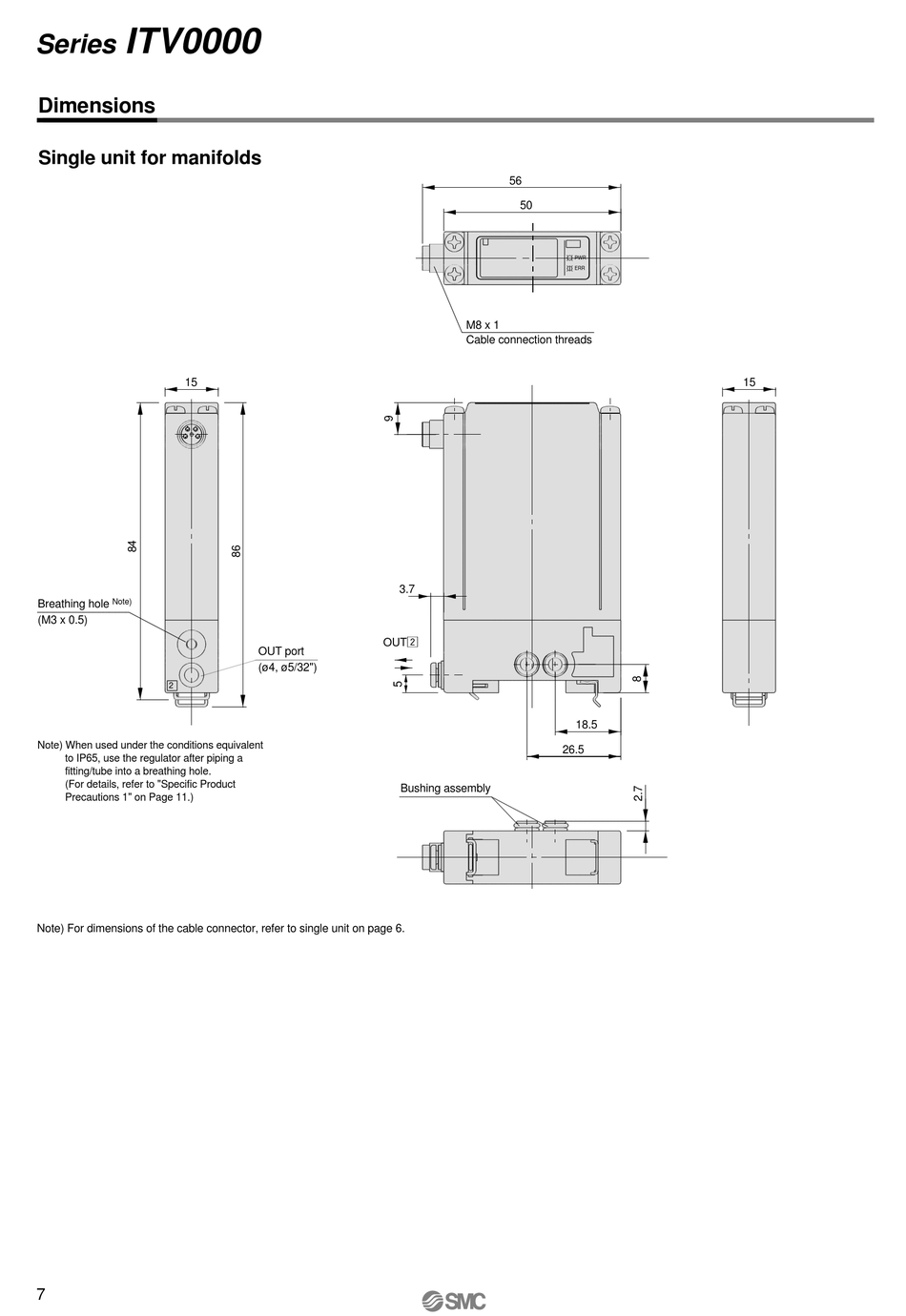

Dimensions

Single unit for manifolds

Note)

Breathing hole

(M3 x 0.5)

Note) When used under the conditions equivalent

to IP65, use the regulator after piping a

fitting/tube into a breathing hole.

(For details, refer to "Specific Product

Precautions 1" on Page 11.)

Note) For dimensions of the cable connector, refer to single unit on page 6.

3.7

OUTx

OUT port

(ø4, ø5/32")

Bushing assembly

PWR

ERR

M8 x 1

Cable connection threads

18.5

26.5
