Air Supply
Caution
1. Install an air filter near this product on the
supply side. Select a filtration degree of 5µm
or less.
2. Compressed air containing a large amount of
drainage can cause malfunction of this
product and other pneumatic equipment. As a
countermeasure, install an after-cooler, air
dryer or water separator, etc.
3. If large amounts of carbon dust are generated
by the compressor, it can accumulate inside
this product and cause a malfunction.
For details on the above compressed air qual-
ity, refer to SMC's "Air Cleaning Equipment"
catalog.
11
ITV0000

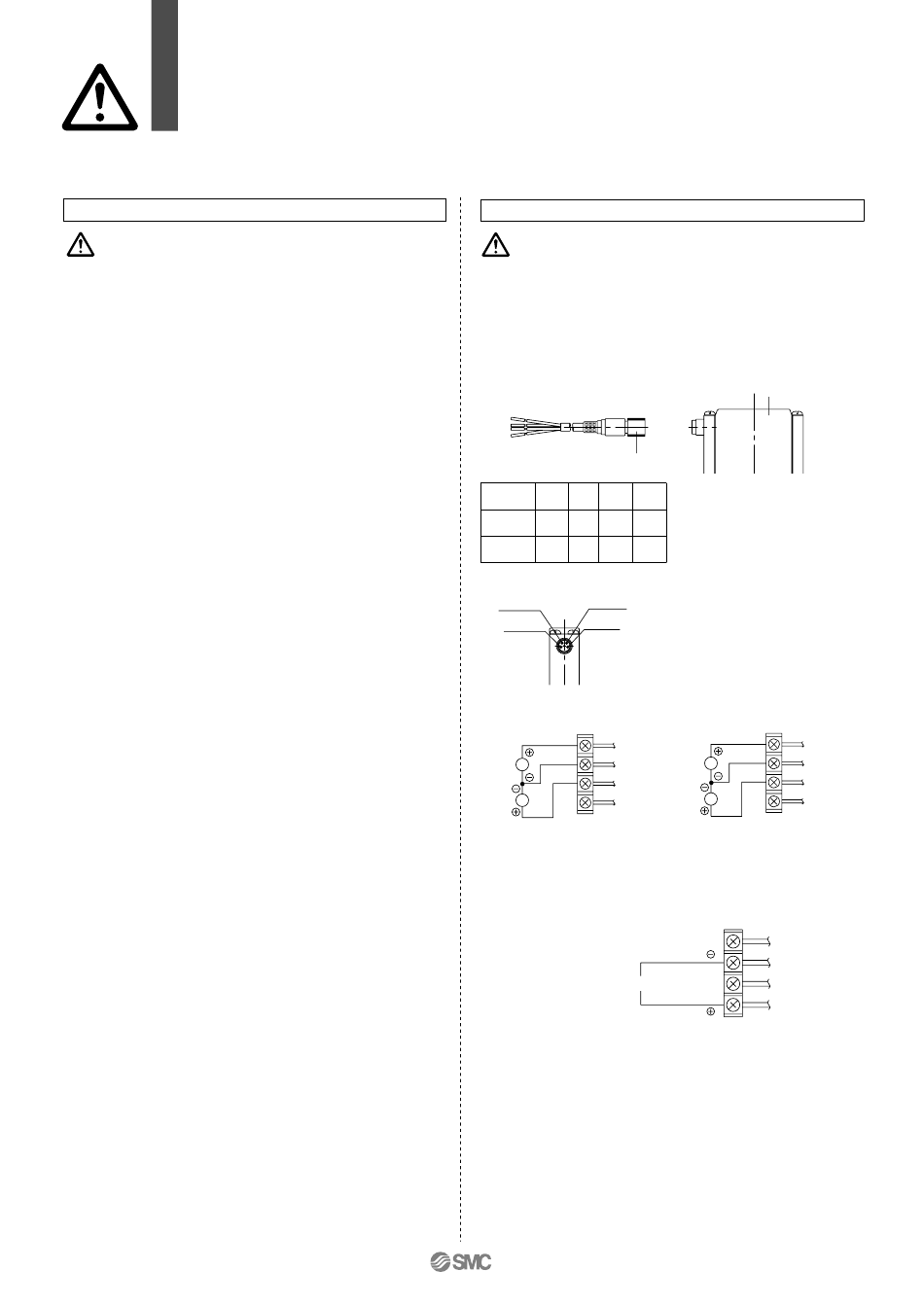

Wiring
Caution
1. Connect the cable to the connector on the
body with the wiring arranged as shown
below. Proceed carefully, as incorrect wiring
can cause damage.
Furthermore, use DC power at the correct
rating and with a low ripple.
Brown
Blue
White
Black
Note)
Terminal
1 2 3
4
no.
Lead wire
Brown White Blue Black
color
Power
Signal COM
Monitor
Wiring
supply
4: (Black)
2: (White)
3: (Blue)
1: (Brown)
Wiring diagram
Current signal type
Brown
Blue
Vs
White
Black
A
Vs: Power supply 24VDC
12 to 15VDC
A: Input signal 4 to 20mADC
0 to 20mADC
Monitor output wiring diagram
Analog output/Voltage type
Monitor output voltage
Body
Note) A right angle type is also
available. The entry direction
for the right angle type
connector is downward (OUT
port side). Never turn the
connector as it is not
designed to turn. If turned
forcibly, it will damage the
connector port.
Voltage signal type
Brown
Blue
Vs
White
Black
Vin
Vs: Power supply 24VDC
12 to 15VDC
Vin: Input signal 0 to 5VDC
0 to 10VDC
Brown
Blue
White
Black
