III. ASSEMBLY INSTRUCTIONS
MAT HOLDER 2 PCS
FIXING BRACKET 1 PC
BOLT M6*15 2 PCS
EXPANSION SCREW 2 SETS
STEP 1

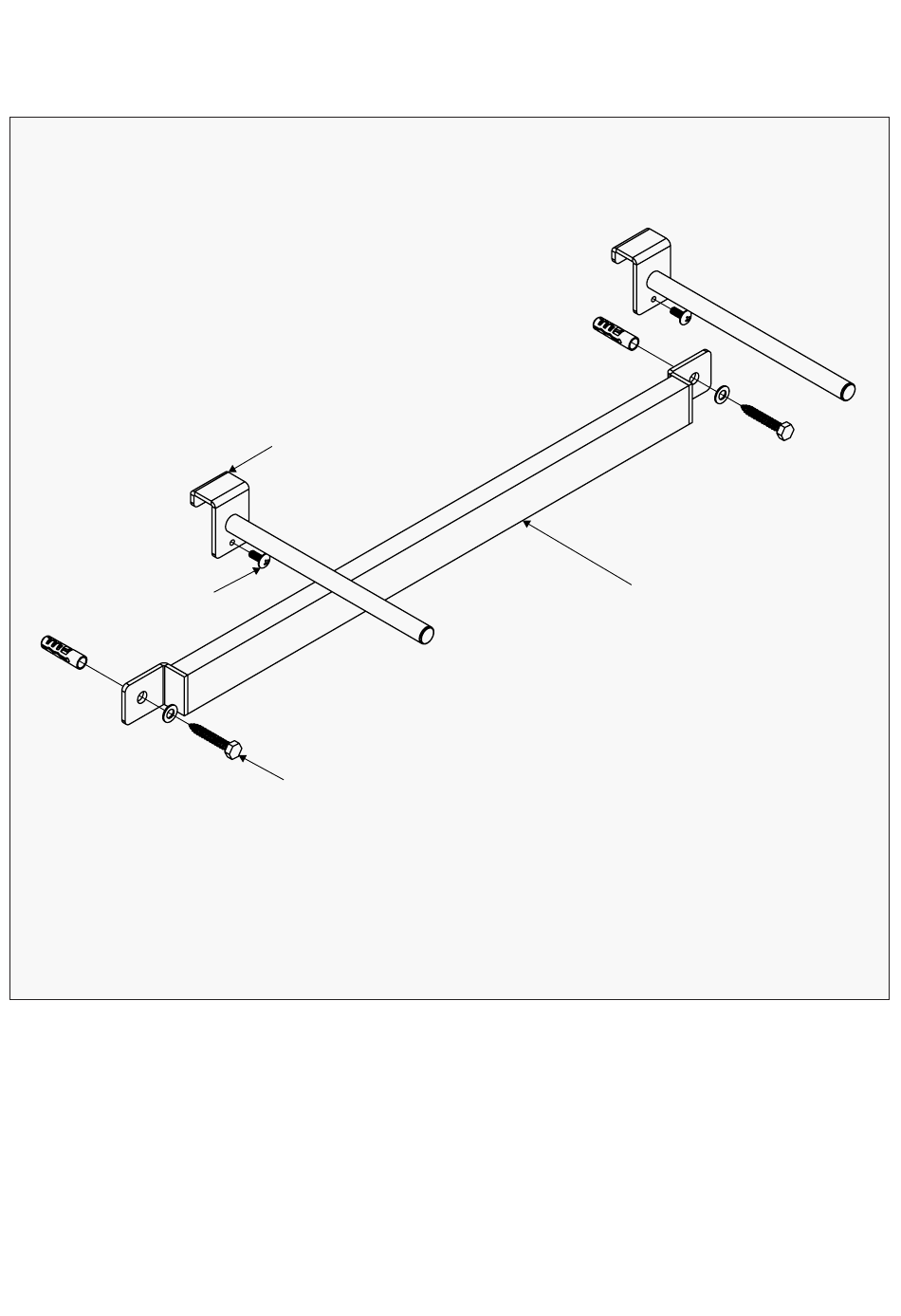

Install the mat holders as pictured below using the Bolt M6*15 using a cross screwdriver.
Mounting Instructions:
Brick or concrete wall.
Measure and mark where you wish to mount on the wall. You will need to drill a hole to add the
expansion sleeve. Push the bolt into the sleeve and fasten with a hexagonal tool.
Additional tools needed: Power drill, hexagonal tool, pencil, measuring tape, leveller (optional).
