Deutschmann Automation GmbH & Co. KG
The UNIGATE® IC
®
2.7
UNIGATE
IC hardware survey
®

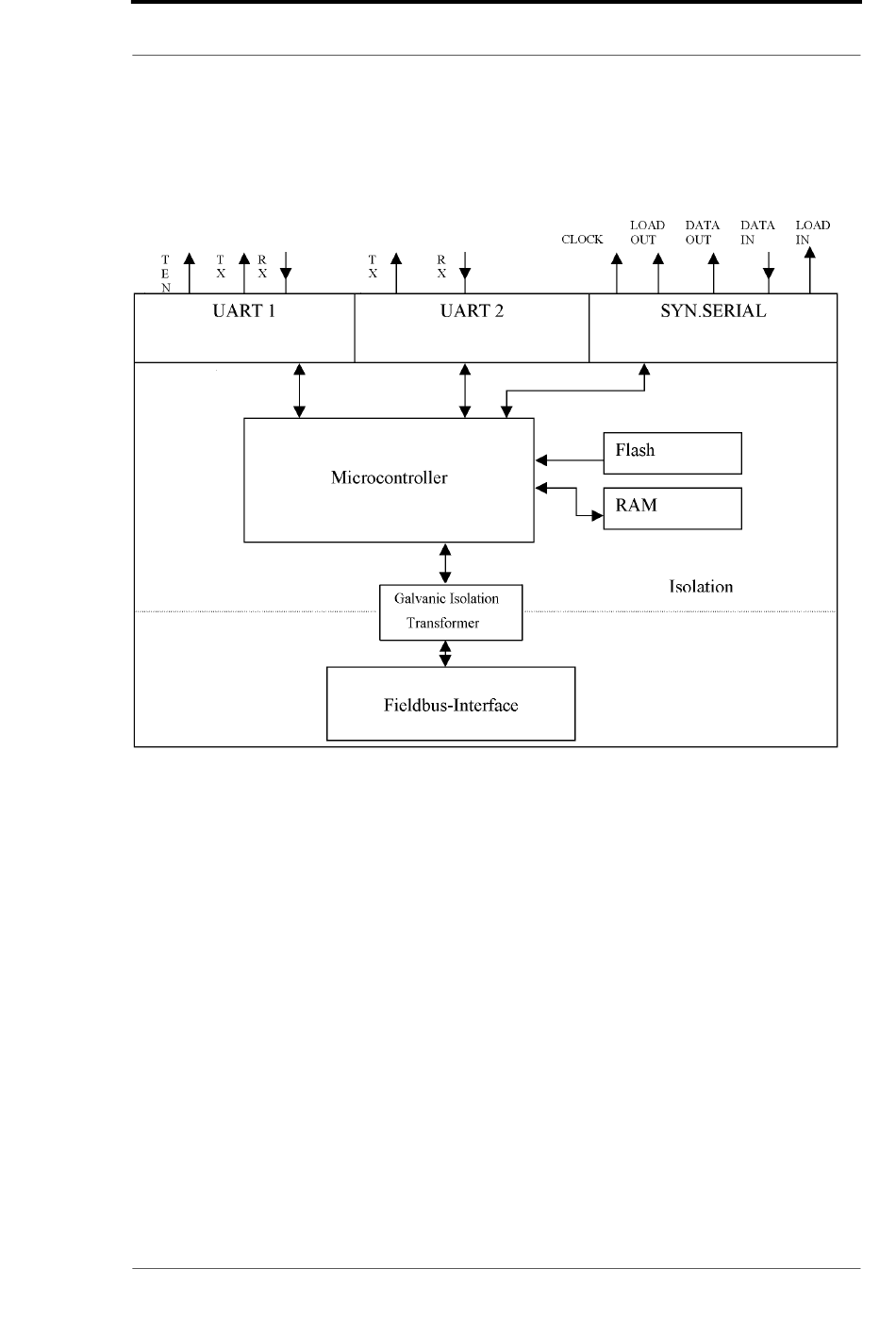

The hardware of the UNIGATE
IC consists of some few standard components. The picture
below shows the functional structure of the IC.
®
21.4.15
Instruction manual UNIGATE
IC - Powerlink V. 2.3
11
