Deutschmann Automation GmbH & Co. KG
The UNIGATE® IC
2.7
UNIGATE® IC hardware survey

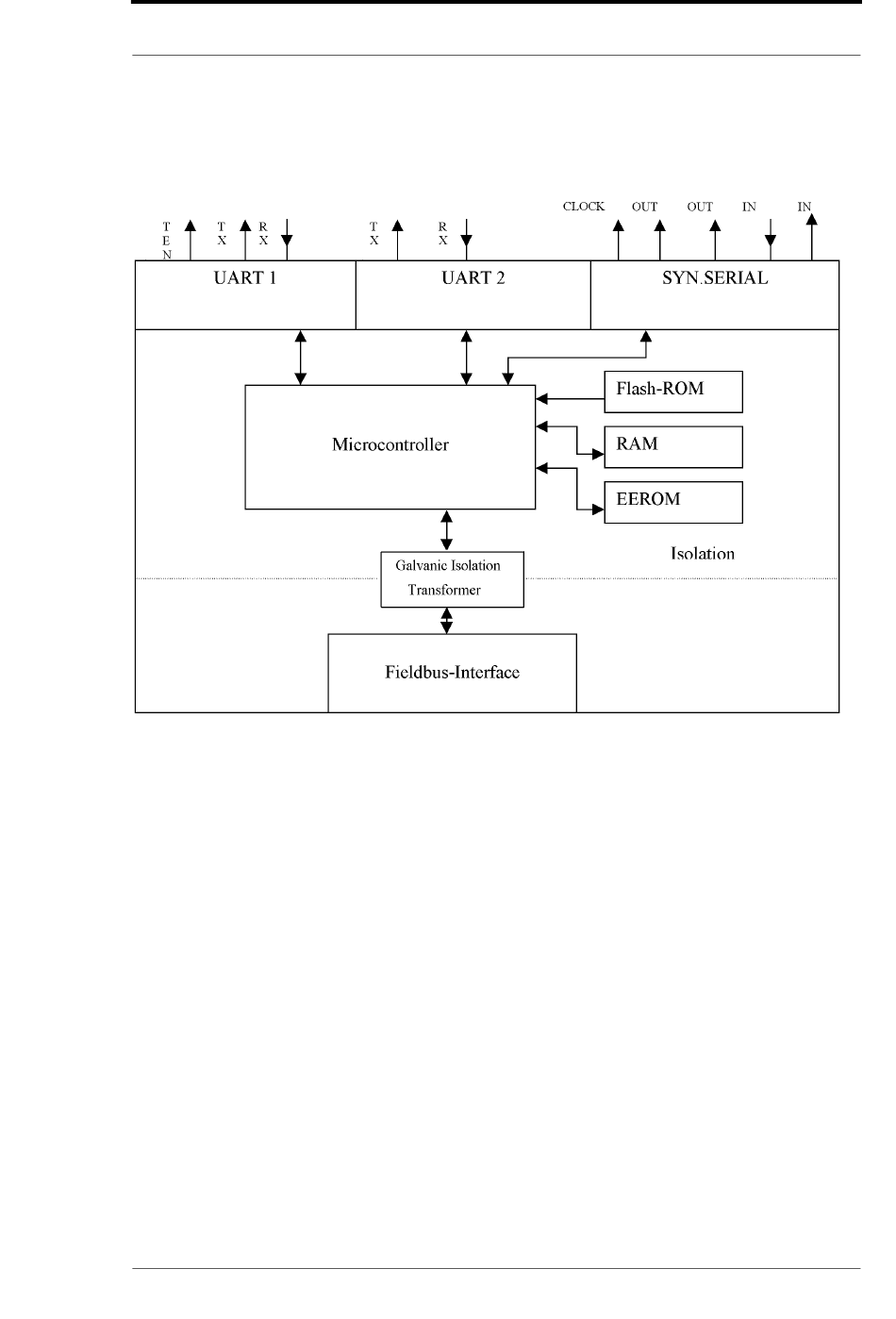

The hardware of the UNIGATE® IC consists of some few standard components. The picture
below shows the functional structure of the IC.
®
5.7.13
Instruction manual UNIGATE
IC - Ethernet V. 2.9
11
