Make a horizontal line at H (cm) distance from the stove to mark the lowest limit for the hood.
•
Install bracket I on the wall just like on the picture above up to height A and mark the holes for dynabolt and fischer.
Especially for CX 9753, attach the unit on the wall up to height A and mark the holes for dynabolt/fischer/screw.
•
Install bracket II on the wall just like on the picture above up to height B and mark the holes for fischer hole.
•
Install bracket III on the wall just like on the picture above up to height C and mark the holes for fischer hole.
•
Drill the wall with a Ø 10 mm for dynabolt and ϕ 8 mm for fischer in all marked sections.
•
Insert the dynabolt and fishcer into the hole.
•
Install all brackets using nut for dynabolt and screw for the available fishcer

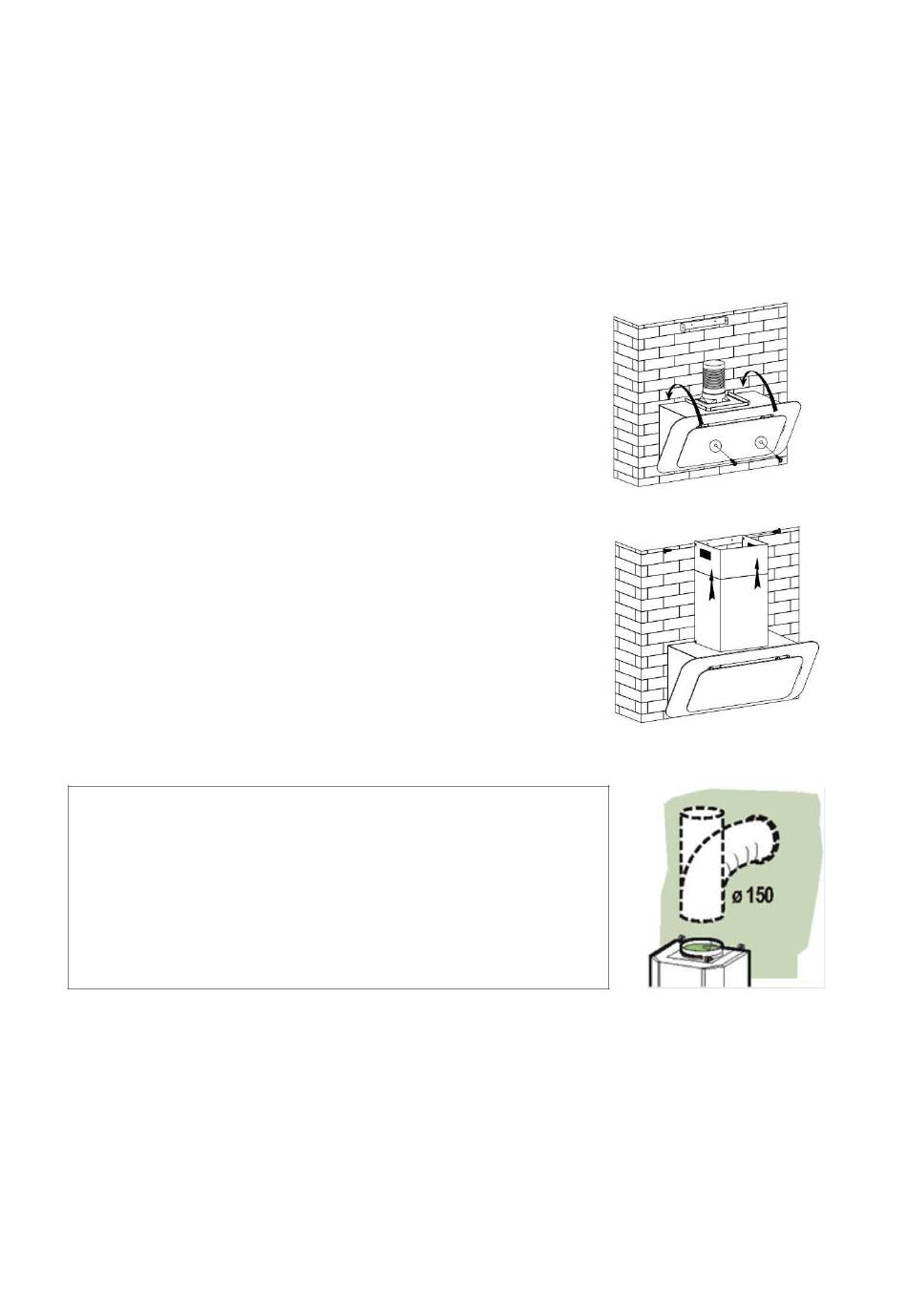

Installing the Hood Body
•
Install hood's body on the bracket I on the wall, or on the
screw head especially for CX 9753.
•
Connect the exhaust system with the spigot / flange if the
exhaust hood will be operated in a ducting / exhaust system.
•
Install the main chimney and the upper chimney on brackets
I and II with the screws that already provided.

WORK METHOD

MODENA exhaust hood has 2 principle of work:
DUCTING SYSTEM:
In this mode, the hood operates by sucking the smoke / odor in the
cooking process and then releasing it out of the vent through the
exhaust system.
To connect the hood with the duct system, use "spigot/flange" which
are designed with a diameter of 150 mm.
Several things which require attention in installing the ducting system exhaust hood:
1. Carbon filter must be removed. Only use the aluminum filter.
2. If the hood is installed in a multi-storied building or an apartment, consult with the person in charge of the building
/ apartment prior to installing the exhaust system.
3. Hood with ducting system should be used in an open-air room with good air circulation.
RECIRCULATING System
8
