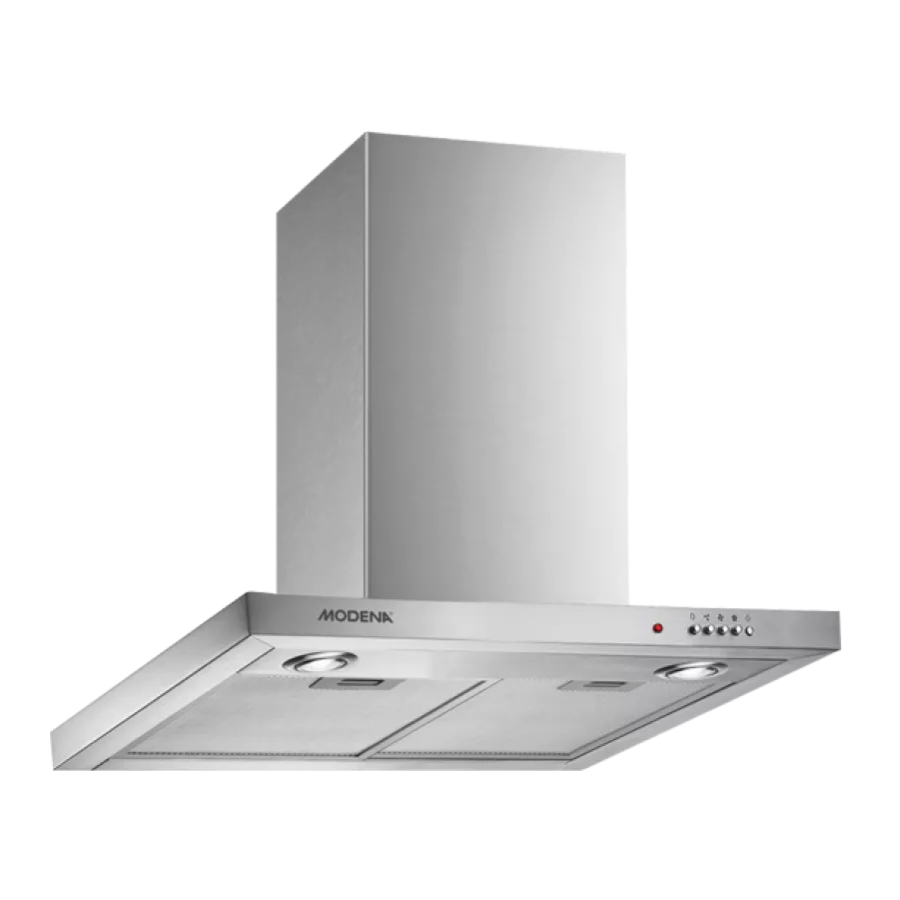

- Page 1 User Manual Book Wall Chimney Hood Imola Seri Modica Seri CX 7310 L CX 7712 L, Diva Seri Forli Seri CX 9330, CX 6330, CX 9177 CX 9777, CX 9753, CX 9701 L CX 9157 Ferrara Seri Faenza Seri CX 9301, CX 6301 CX 9356 Cesena Piazza Seri...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. Please reach out to us if you need further assistance or other information via our Customer Care or our official website www.modena.com.
- Page 3 CONTENTS PAGE Introduction Part 1 : Safety Warnings Part 2 : Name of Parts Part 3 : Installation Part 4 : How to Use Part 5 : Maintenance Part 6 : Problems & Solutions Part 7 : Precautions Part 8 : Specification...
- Page 4 Before connecting the unit to a power source, make sure the power cord is in good shape. If there is damage to the power cord, the replacement must be performed by qualified personnel or contact the MODENA Service Center for replacement process.
- Page 5 Part 2: Name of Parts CX 9150, CX 9330, CX 9753, CX 7110 L, CX 7310 L, CX 9156, CX 9301, CX 9356, and CX 9701 * The image is a general overview and is not necessarily the same as the product you receive. * Features and other attributes are depending on the type of products 1.
- Page 6 1. Circulation Hole 2. Upper Chimney 3. Main Chimney 4. Control Panel 5. Aluminum Filter 6. Carbon filter CX 9777 * The image is a general overview and is not necessarily the same as the product you receive. * Features and other attributes are depending on the type of products CX 9157/ CX 9177 * The image is a general overview and is not necessarily the same as the product you receive.
- Page 7 Part 3: Installation CX 9150, CX 9330, and CX 9753 Preparations of installation: The exhaust hood is equipment which vacuums the smoke and odor produced in cooking process. With an exhaust hood, your kitchen will be free from oil particles which produces bad odor. Check the strength of wall on which the hood is to be installed.
-
Page 8: Work Method
Install the main chimney and the upper chimney on brackets I and II with the screws that already provided. WORK METHOD MODENA exhaust hood has 2 principle of work: DUCTING SYSTEM: In this mode, the hood operates by sucking the smoke / odor in the cooking process and then releasing it out of the vent through the exhaust system. - Page 9 In this version, the vent hood sucks the smoke / cooking odor and filters it through an aluminum filter and carbon filter. The filtered smoke is then reticulated into the room. This system is used if the premise renders it impossible to install a ducting system Several things which must be ensured when installing a vent hood with reticulating system: 1.
- Page 10 When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa (4 × 10 Bar) • Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws &...
- Page 11 • By put the upper chimney into lower chimney. Then pulling out the upper chimney upwards. Adjust to reach the height required. • Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures •...
- Page 12 • Sliding the chimney to adjust the chimney height. When the height you required is reached, then fix two pieces of 4x8 mm screws onto the hole fixing with plate I as showed in below pictures • Drill 2 x 8 mm holes to accommodate the plate II. Screw and tighten the plate II into the wall with two screws provided.
-
Page 13: Installation Height
• Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side Note: Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower. - Page 14 If the ceiling is low and hood is installed without extended chimney, there should be at least 3cm gap between the ceiling and chimney • Any distance above 700 mm will affect the performance of this range hood. • Do not connect the range hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.
- Page 15 CX 7712 L Preparations of installation: Exhaust hood is equipment which sucks smoke and cooking fragrance. With a vent hood, your kitchen will be free from oil particles that may produce bad odor Check the strength of wall on which the exhaust hood is to be installed.
-
Page 16: Exhaust System
Install the main chimney and the upper chimney on brackets I and II with the available screw. WORK METHOD MODENA hood have 2 versions of work method, as following: Exhaust System: • In this mode, the hood operates by sucking the smoke / cooking odor and then discharging it out of the vent through the exhaust system. -
Page 17: Push Button
• Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side. Note: Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower. -
Page 18: Touch Button
Electronic Button + DISPLAY To Turn On/Off the Hood To Adjust the Motor’s Speed (Low-Medium-High) To Activate the Shut-off Timer (After 9 Minutes motor will switch off automatically) To Turn On/Off the Light TOUCH BUTTON To Set the Usage Time To Turn On/Off the Light To Adjust the Speed Level (Low-Medium-High) To Turn On/Off the Hood... - Page 19 To set the clock can be done when the motor and lights are not in working condition. The way to setting the clock as follow: Touch the button around 2 until 5 seconds, the display will show , the first two digits will blink indicates for setting of the hours.
- Page 20 0 On / Off Buttons The Button to Turn ON/Off the Hood Motor Speed Button - LOW Suitable for kitchens or cooking condition that does not cause a lot of smoke or steam. Motor speed button - MEDIUM Suitable for kitchens or cooking condition that does not cause a medium amount of smoke and steam Motor speed button –...
-
Page 21: Lcd Display
to adjust the time unless when the timer setting is “off” Press " " or " Speed increase button Speed decrease button Light button LCD Display 1. Fan symbol will be active when the fan is working 2. Time display 3. - Page 22 CX 9777 • To start the hood, press the wake button first and then touch the ring with clockwise touch. The wind is changed from small to large, when the whole ring is red when it starts to suck, it keeps running for 3 minutes, and then automatically switches to strong gear, and the ring of the ring turns off a section, if it is to be reopened again to the whole circle.
-
Page 23: Cleaning The Cabinet
Part 5: Maintenance MODENA exhaust hood specifically designed for a long term use so that it does not require complicated maintenance. However, there are some things that are recommended to take care of your exhaust hood so that the quality is maintained. -
Page 24: Changing The Light Bulb
Cleaning the Filter: Smoke / steam from cooking and oil particles generated by the cooking process will immediately absorbed by the filter and therefore the filter should be cleaned regularly 1. Aluminum Filter: • For routine usage, clean the aluminum filter once every 10 – 15 days by soaking the filter in a container filled with soap water for 1 hour (look at image) and use a soft brush to scrub it and then dry the filter thoroughly before placing it back to its proper position. -
Page 25: Recommended Action
● If you smell burnt / burnt smell from the hood, immediately turn off the hood and contact the MODENA Service Center. ● Perform a routine service on your stove every 3 (three) months, because if there are problems / problems with your... - Page 26 Part 8: Specification MODEL CX 9753 CX 9330 CX 9150 Chimney - Wall Chimney - Wall Chimney - Wall Type Stainless + tempered Stainless + tempered Stainless Cabinet Material glass glass Stainless Diamond black Stainless Front Panel Color 1 Turbo 1 Turbo Motor 1 Turbo...
- Page 27 MODEL CX 9701 L CX 9356 Wall Chimney - Wall Type Metal + tempered glass Stainless + tempered Cabinet Material glass Black Staineless Cabinet Color Black Black Front Panel Color Motor 1 Turbo 1 Turbo LED Stripe Lamp Fan Speed Ionizer (Germinator) Cassette Aluminum + Cassette Aluminum +...
- Page 28 MODEL CX 7712 L CX 9156 CX 9106 Wall Chimney Wall Type Metal Stainless Steel + Stainless Steel + tempered glass Cabinet Material tempered glass Stainless Black Stainless Cabinet Color Black Black Black Front Panel Color 1 Turbo 1 Turbo Motor 1 Turbo 2 LED...
- Page 29 12/20...
