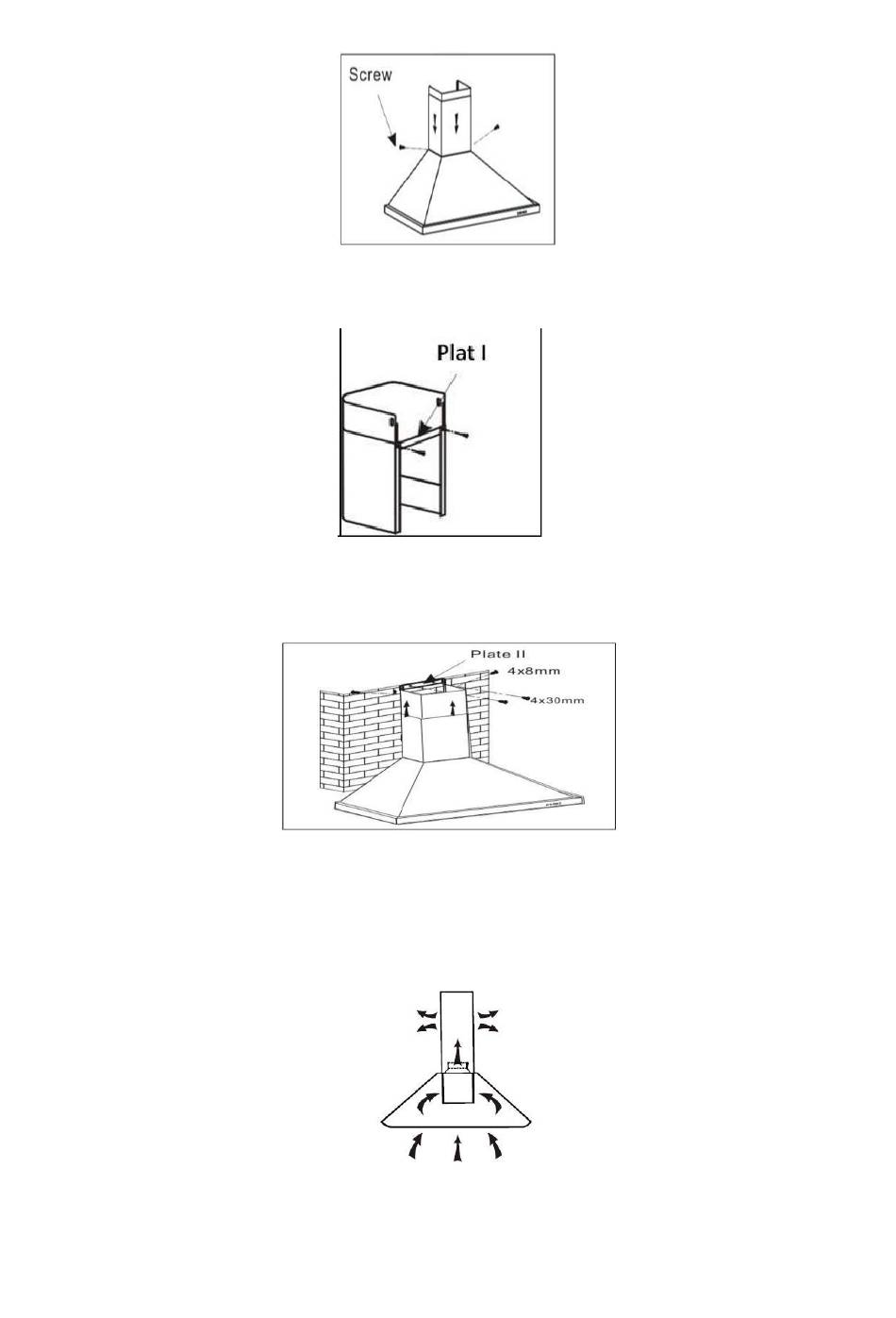

Sliding the chimney to adjust the chimney height. When the height you required is reached, then fix two
pieces of 4x8 mm screws onto the hole fixing with plate I as showed in below pictures
•
Drill 2 x 8 mm holes to accommodate the plate II. Screw and tighten the plate II into the wall with two
screws provided.
•
Assembly the chimney into the unit and fix it with two screws.
Installation (Re-circulating System):
•
If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one
show in section "Installation (DUCTING / EXHAUST System)".
•
Activated carbon filter can be used to trap odors.
•
In order to install the activated carbon filter, the grease filter should be detached first by press the lock and pull it
downward.
