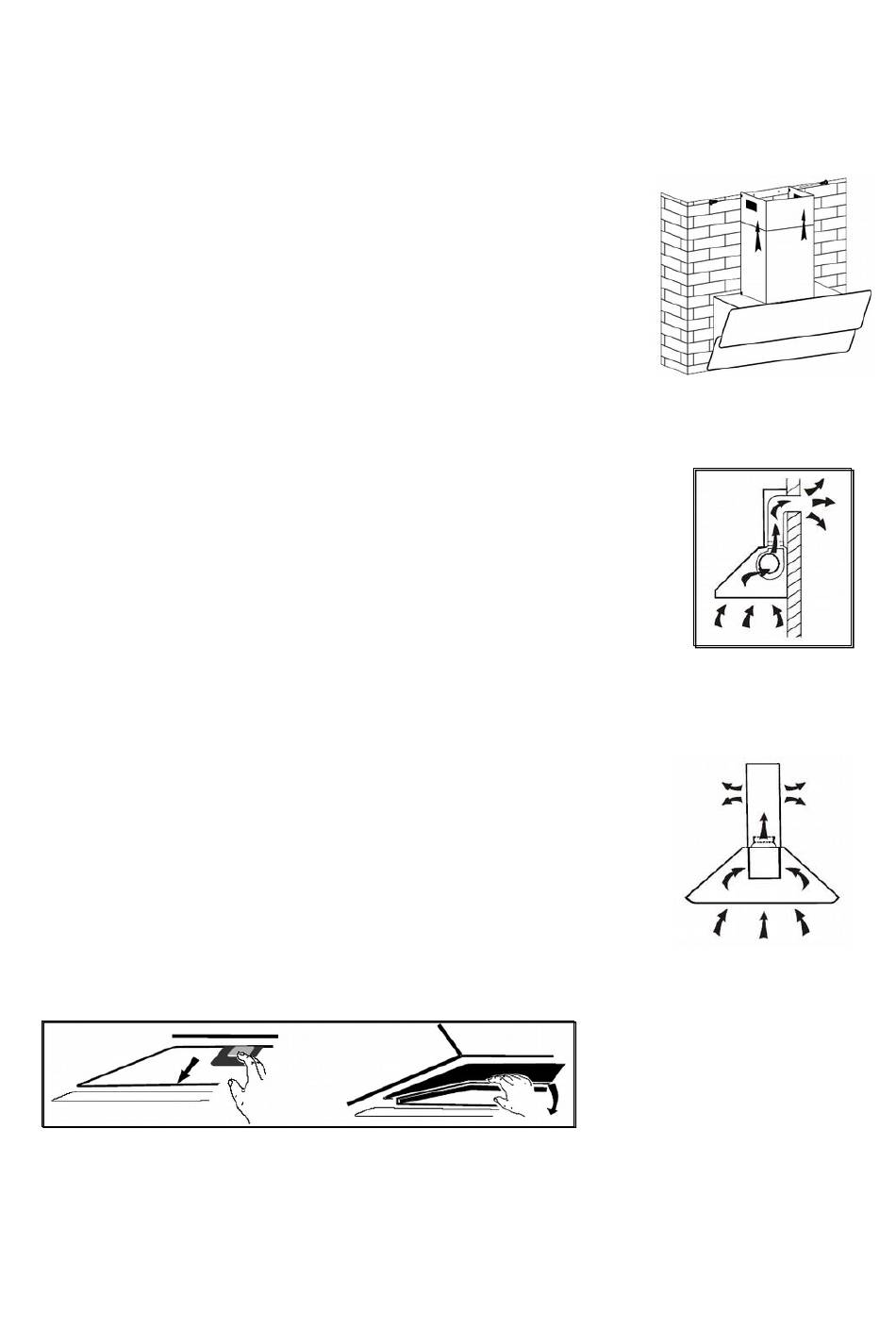

Installing the Cook Hood's Body
- Install hood on the bracket I on the wall
- Connect the exhaust system with the spigot / flange if the vent
hood is to be operated as a ducting / exhaust system).
- Install the main chimney and the upper chimney on brackets I and
II with the available screw.
WORK METHOD
MODENA hood have 2 versions of work method, as following:

Exhaust System:

•
In this mode, the hood operates by sucking the smoke /
cooking odor and then discharging it out of the vent through
the exhaust system.
•
To connect the hood with the discharge duct, use
"spigot/flange" is designed with a diameter of 150 mm.
Several things which require attention in installing the ducting system vent hood:
1.
Carbon filter must be removed. Only use the aluminum filter.
2.
If the hood is to be installed in a multi-storied building or an apartment, consult
with the person in charge of the building / apartment prior to installing the
exhaust system.
3.
Hood with ducting system should be used in an open-air room with good air
circulation.

Re-circulation System

•
If you do not have an outlet to the outside, exhaust pipe is not required and
the installation is similar to the one show in section "Installation (Exhaust
System)".
•
Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first by press the lock and pull it downward
