When the range hood and appliance supplied with energy other than electricity are simultaneously
in operation, the negative pressure in the room must be not exceed 4 Pa (4 × 10
•

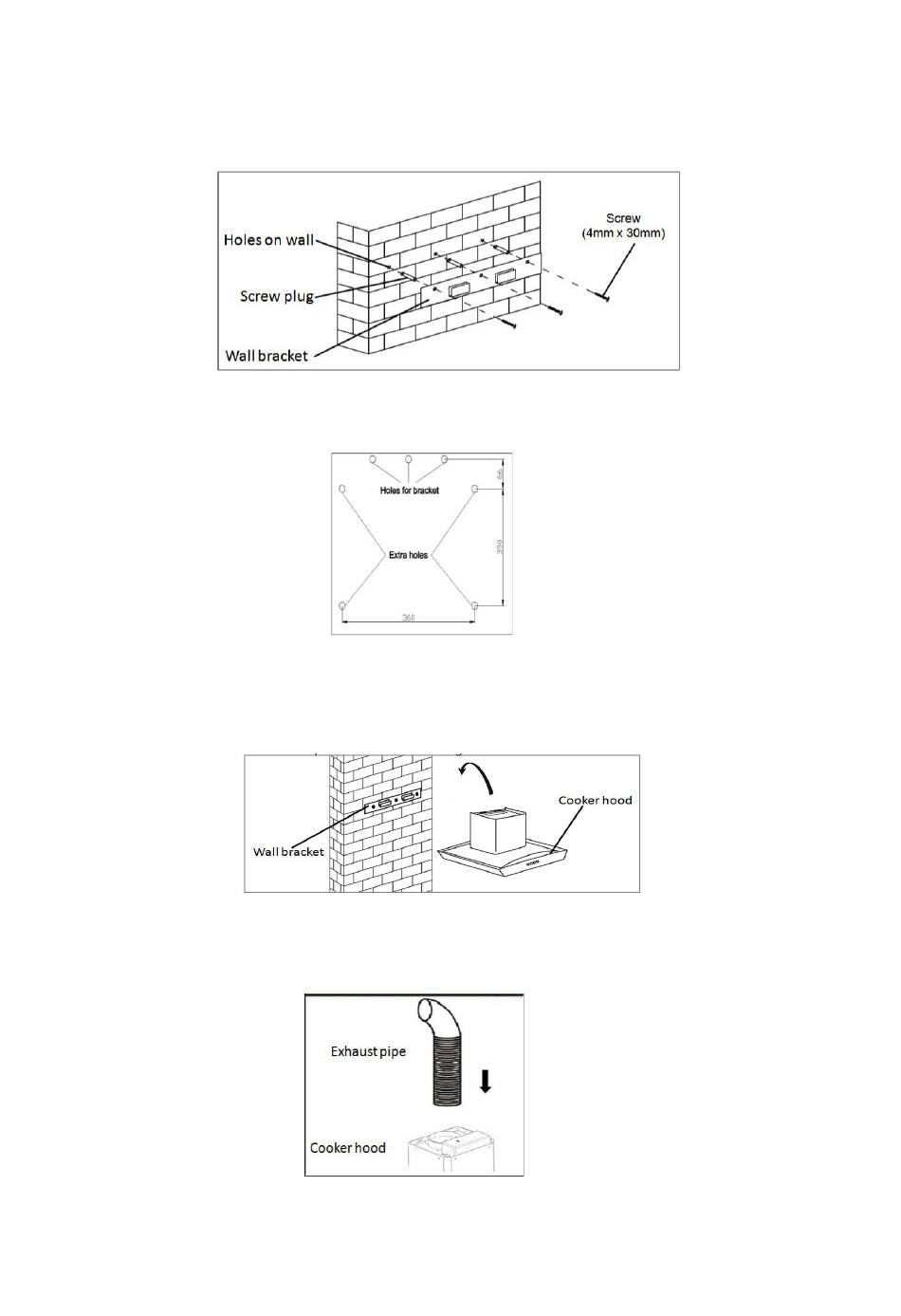

Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the
screws & screw plugs provided
• For inclined panel Model, need to drill 4 x 8mm extra holes & fixing screws & screw plugs before
installation.
• Leave up the exhaust hood and hang onto the wall bracket hook.
• Fix the one-way-valve to the air outlet of the exhaust hood. Then, attached the exhaust pipe into
the one-way-valve as shown below.
Chimney installation
For Glass model and T shape model
