Modena SX Series Manual

Modena SX Series Manual

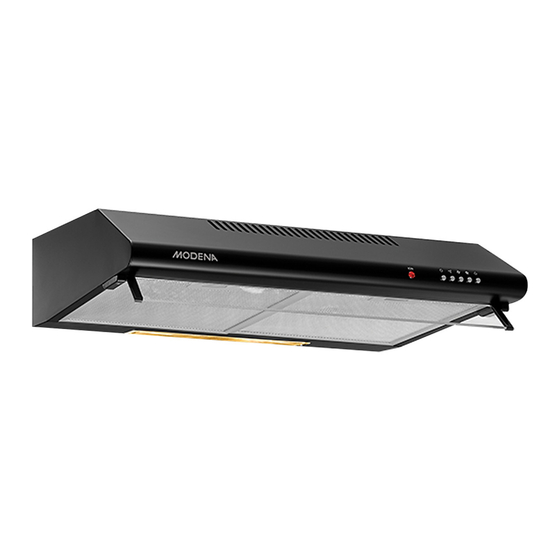

Exhaust hood

Advertisement

Available languages

Available languages

SX series
BUKU PETUNJUK PENGGUNAAN
TUDUNG HISAP
DAN KARTU GARANSI
EXHAUST HOOD MANUAL
AND
WARRANTY CARD
2017
www.modena.co.id

Advertisement

loading
Need help?

Need help?

Do you have a question about the SX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Modena SX Series

  • Page 1 SX series BUKU PETUNJUK PENGGUNAAN TUDUNG HISAP DAN KARTU GARANSI EXHAUST HOOD MANUAL WARRANTY CARD 2017 www.modena.co.id...
  • Page 2 Buku ini sangat disarankan untuk mudah dijangkau oleh siapapun yang akan menggunakan produk ini. Tersedia pula fasilitas layanan customer care bagi pengguna MODENA yang setia dan juga informasi- informasi penunjang lainnya di situs resmi www.modena.co.id. Silakan menghubungi kontak yang t ersedia bila ada hal-hal lain yang ingin ditanyakan berkaitan dengan produk ini.
  • Page 3 NOMOR : 20/DJ-ILMEA/MG/V/2000 728/ILMEA/IX/2003 DAFTAR ISI HLM. • Kata Pengantar • Bagian 1 : Nama-nama Bagian • Bagian 2 : Instalasi • Bagian 3 : Cara Penggunaan • Bagian 4 : Pemeliharaan • Bagian 5 : Masalah & Solusinya • Bagian 6 : Spesifikasi Bahasa Indonesia 2...
  • Page 4 Bagian 1 : Nama-nama Bagian Karbon Filter Knob pengatur arah aliran udara Panel Kontrol Lampu Filter aluminium / filter metal Pengait filter Bagian 2 : Instalasi Tudung hisap (hood) merupak an peralatan yang berfungsi sebagai penghisap asap sert a aroma masakan yang timbul ketika sedang memasak.
  • Page 5 Pemasangan pada dinding beton (tembok) 1. Untuk memasang pada tembok, lubangi 4 lubang dengan diameter 8 mm atau sesuai ukuran fis her pada sebuah tempat yang memungkinkan berdasarkan jarak pusat dari lubang di belakang tudung hisap (hood). Perhatian : Sebelum mengebor, pastikan tidak ada instalasi kabel, pipa air dan instalasi lainnya di dalam tembok.
  • Page 6 Ventilasi Vertikal: Seperti terlihat di gambar 4B, gunak an penut up untuk menut up saluran keluar pada bagian belakang, kemudian udara dapat dialirkan dari atas. CARA KERJA Tudung hisap (hood) MODENA mempunyai 2 (dua) versi cara kerja yaitu :  Sistem DUCTING/EXHA UST : 1. Pada versi ini, tudung hisap (hood) bekerja dengan menghisap asap/aroma masakan yang kemudian asap tersebut dibuang keluar melalui saluran pembuangan.
  • Page 7 (di sirkulasikan kedalam ruangan). Penyambungan arus li stri k Tudung hisap (hood) MODENA dirancang untuk tegangan listrik 220 Volt, phase tunggal dan frek wensi 50 Peralatan ini menggunakan kabel steker double insulasi (kabel isi 2), oleh karena itu janga n dihubungkan dengan arde (ground).
  • Page 8 Untuk menggunakan motor kecepatan tinggi Untuk mematikan dan meny alakan lampu ION akan aktif dan lampu indikatornya akan menyala setiap menyalakan motor hood Perhatian:  Hindari pertemuan langsung ant ara kompor yang sedang dalam keadaan menyala dengan tudung hisap (hood). ...
  • Page 9 Bagian 5 : Masalah & Solusinya Lakukan pengecekan terhadap hal -hal di bawah ini sebelum menghubungi Service Center kami, bila terjadi gangguan pada tudung hisap (hood) Anda : PROBLEM PENYEBAB SOLUSINYA   Kabel steker belum terpasang pada Hubungkan kabel steker ke stop stop kontak.
  • Page 11 We also provide a customer care service for MODE NA users as well as other support information on our official website www.modena.co.id. Please contact us if you have other questions regarding this product. Enjoy your daily activities, we hope that our products may provide the best services to your family.
  • Page 12: Table Of Contents

    CONTENTS PAGE. • Introduction • Part 1 : Name of Parts • Part 2 : Installation • Part 3 : How to Use • Part 4 : Maintenance • Part 5 : Problem & Solutions • Part 6 : Specification English 10...
  • Page 13: Part 1 : Name Of Parts

    Part 1 : Name of Parts Carbon Filter Direction knob Cont rol Panel Lamp Aluminum Filter Filter locker Part 2 : Installation Exhaust hood is an equipment which sucks smoke and cooking fragrance. With a vent hood, your kitchen will be free from oil particles that may produce bad odor. 1.
  • Page 14 Installing on concrete (brick) wall To install the hood in the wall, drill 4 holes on the wall and the diameter each holes is 8 mm, or according to fisher size at the possible place based on the distance of the center of the back hole of the hood.
  • Page 15 Noted : There are t wo methods to air exchange, its are covering „horizontal ventilation' and 'vertical ventilation'. Note the ventilation met hod when installation. Horiz ontal ventilation: As shown in the picture. 4A, use a cover to close the outlet at t he top, then the air can be streamed from behind.
  • Page 16: Part 3 : How To Use

    Overall installation should be performed by a competent person in the field of electrical or able to do the installation. If you will do the installation yours elf, it is recommended that at first consult to the Service Cent er Modena. Details of the method and frequency of cleaning listed in the "Installation and Maintenance"...
  • Page 17: Part 4 : Maintenance

    Use motor at high speed To switch on or switch off the lamp ION will active and the indicator light will turn on when operate the hood motor ATTENTION:  A void direct contact between the vent hood and open flames from the stove. ...
  • Page 18: Part 6 : Specification

    Dirty carbon filter. Replace the carbon filter with a new one. Motor fan Broken motor coil. Cont act MODENA Service Center. malfunctioning The vent hood is installed too Motor stops close to the stove. Safety thermal regulator is active.

This manual is also suitable for:

Sx 9512 lSx 7511 l
