- Page 1 User Manual Book Built – In Hood Celato Series BX 9603, BX 6603, BX 6632 Sotto Series BX 6503...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. Please reach out to us if you need further assistance or other information via our Customer Care or our official website www.modena.com.
-
Page 3: Table Of Contents
CONTENTS PAGE Introduction • Part 1 : Safety Warnings • Part 2 : Name of Parts • Part 3 : Installation • Part 4 : How to Use • Part 5 : Maintenance • Part 6 : Problem & Solution •... -
Page 4: Part 1: Safety Warnings
Before connecting the unit to a power source, make sure the power cord is in good shape. If there is damage to the power cord, the replacement must be performed by qualified personnel or contact the MODENA Service Center for replacement process. -
Page 5: Part 2: Name Of Parts

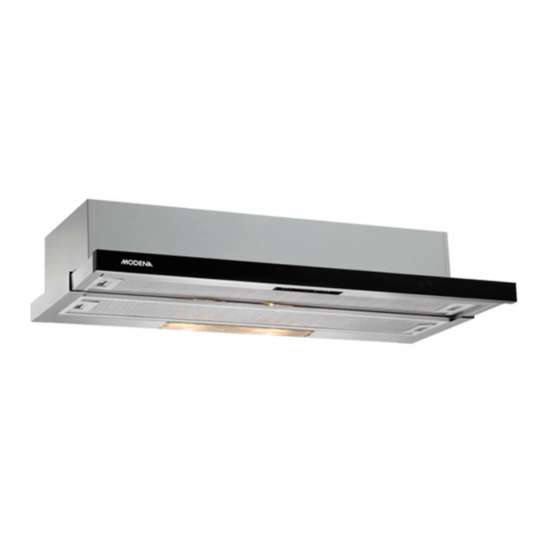

Part 2: Name of Parts Filter aluminum / BX 6603 / BX 9603 Cassette aluminum filter Lamp Control Panel BX 6503 Filter aluminum / Cassette aluminum filter Lamp Control Panel 1. Filter aluminum / Cassette BX 6632 aluminum filter 2. Lamp Control Panel The image is a general overview and is not necessarily the same with the product you receive. -
Page 6: Part 3: Installation
Part 3: Installation Exhaust hood is equipment that remove the smokes and fragrances while cooking process. With a vent hood, your kitchen will be free from oil particles that may produce bad odor. Check the capability of the wall where the exhaust hood will be installed. - Page 7 Reassembly the control panel and tighten using 4screws. Connect the exhaust pipe on the exhaust hole in the unit. OPERATING METHODS MODENA Exhaust Hood has 2 (two) operating methods as follows: DUCTING / EXHAUST System: • In this method, the exhaust hood operates by sucking the smoke / smells produces in cooking and then releasing it out using the exhaust pipe.
-
Page 8: Part 4: How To Use
RE-CIRCULATING System • In this method, the exhaust hood operates by vacuuming the smoke / odors produces in cooking process and filters it through the aluminum filter and carbon filter. The filtered smoke is then re- circulated into the room. •... -
Page 9: Part 5: Maintenance
Part 5: Maintenance MODENA Exhaust Hood is specifically designed for long-term usage and doesn't require complicated maintenance. However, there are several things you can do to maintain the quality as follows: Cleaning the Cabinet: To clean the surface of exhaust hood cabinet from sticky oil particles, use a cloth / sponge and soap water and then dry it out. -
Page 10: Part 6 : Problem & Solution
Periodically inspect the filter and oil reservoir. Make sure that the filter is in clean and good condition and make sure the oil reservoir is not exceeding the specified limit. ● If you smell burnt / burnt smell from the hood, immediately turn off the hood and contact the MODENA Service Center. ●... -
Page 11: Part 8: Specification
Part 8: Specification MODEL BX 9603 BX 6603 BX 6503 BX 6632 Type Built-in slide out Built-in slide out Built-in under top Built-in slide out Material of cabinet Metal + glass Metal + glass Metal Metal + glass Color of cabinet Silver Silver Silver... - Page 12 12/20...
