Figure 5 %Bwmacaddress%-Config.xml File Settings - SpectraLink IP-DECT 200 Configuration Manual

After creating the device profile type file, upload %BWMACADDRESS%-config.xml, which
is extracted from the CPE kit obtained from Spectralink. Use the Browse button on the
file definition screen. Be sure to click Apply after uploading the file.

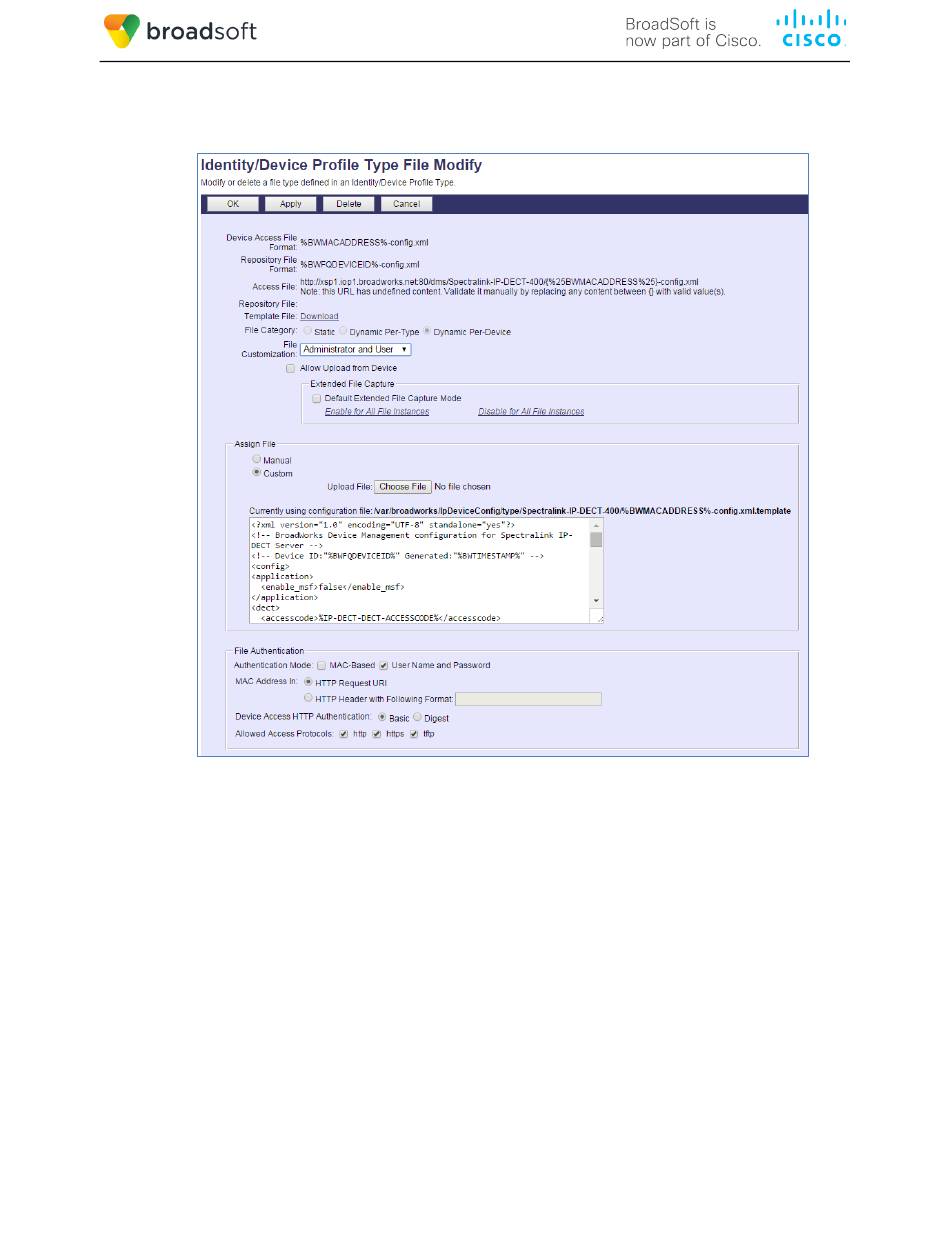

Figure 5 %BWMACADDRESS%-config.xml File Settings

5.2.2.2.2.2 %BWMACADDRESS%-users.xml
Add the %BWMACADDRESS%-users.xml file to the device profile type with the settings
shown in
Figure
After creating the device profile type file, upload %BWMACADDRESS%-users.xml, which
is extracted from the CPE kit obtained from Spectralink. Use the Browse button on the
file definition screen. Be sure to click Apply after uploading the file.
BROADSOFT PARTNER CONFIGURATION GUIDE – SPECTRALINK IP-DECT SERVER SERIES
© 2019 BROADSOFT INC.
6.
20-BD5445-00
PAGE 34 OF 49
