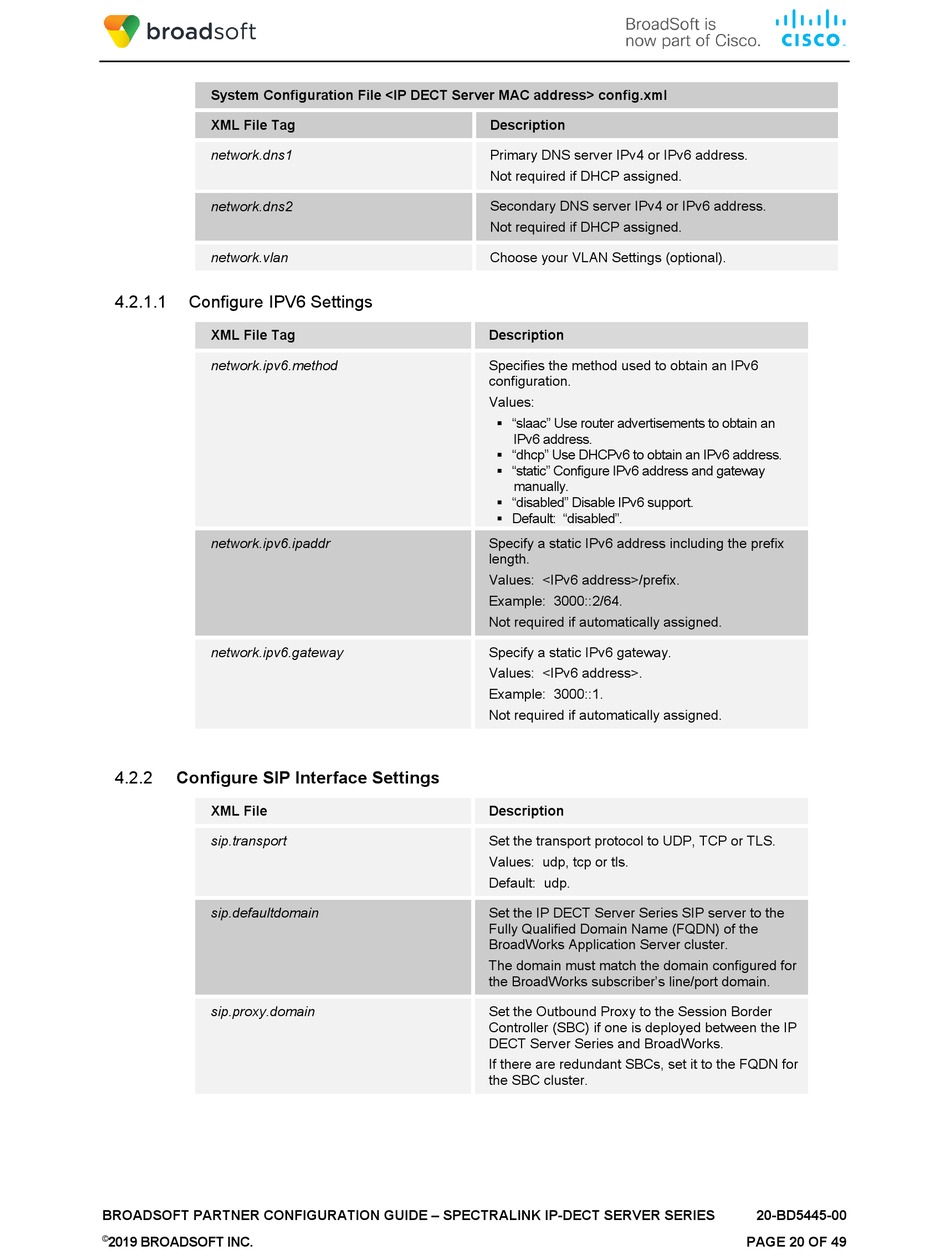

Configure Sip Interface Settings - SpectraLink IP-DECT 200 Configuration Manual

System Configuration File <IP DECT Server MAC address> config.xml
XML File Tag
network.dns1
network.dns2
network.vlan
4.2.1.1 Configure IPV6 Settings
XML File Tag
network.ipv6.method
network.ipv6.ipaddr
network.ipv6.gateway
4.2.2

Configure SIP Interface Settings

XML File
sip.transport
sip.defaultdomain
sip.proxy.domain
BROADSOFT PARTNER CONFIGURATION GUIDE – SPECTRALINK IP-DECT SERVER SERIES
© 2019 BROADSOFT INC.
Description
Primary DNS server IPv4 or IPv6 address.
Not required if DHCP assigned.
Secondary DNS server IPv4 or IPv6 address.
Not required if DHCP assigned.
Choose your VLAN Settings (optional).
Description
Specifies the method used to obtain an IPv6
configuration.
Values:
 "slaac" Use router advertisements to obtain an
IPv6 address.
 "dhcp" Use DHCPv6 to obtain an IPv6 address.
 "static" Configure IPv6 address and gateway
manually.
 "disabled" Disable IPv6 support.
 Default: "disabled".
Specify a static IPv6 address including the prefix
length.
Values: <IPv6 address>/prefix.
Example: 3000::2/64.
Not required if automatically assigned.
Specify a static IPv6 gateway.
Values: <IPv6 address>.
Example: 3000::1.
Not required if automatically assigned.
Description
Set the transport protocol to UDP, TCP or TLS.
Values: udp, tcp or tls.
Default: udp.
Set the IP DECT Server Series SIP server to the
Fully Qualified Domain Name (FQDN) of the
BroadWorks Application Server cluster.
The domain must match the domain configured for
the BroadWorks subscriber's line/port domain.
Set the Outbound Proxy to the Session Border
Controller (SBC) if one is deployed between the IP
DECT Server Series and BroadWorks.
If there are redundant SBCs, set it to the FQDN for
the SBC cluster.
20-BD5445-00
PAGE 20 OF 49
