Steelcase Currency Workwall Manual page 7

®
NOTE: Before assembling each part, please
make sure cams are parallel to the side of
the surface & pins are nicely screwed with
the collar touching the edge of the part.
(See page 3 for proper alignment of parts)
Use mallet, before tightening cam screws, to
bring parts together and avoid light leaks.
TURN
CLOCKWISE
1
LC
B

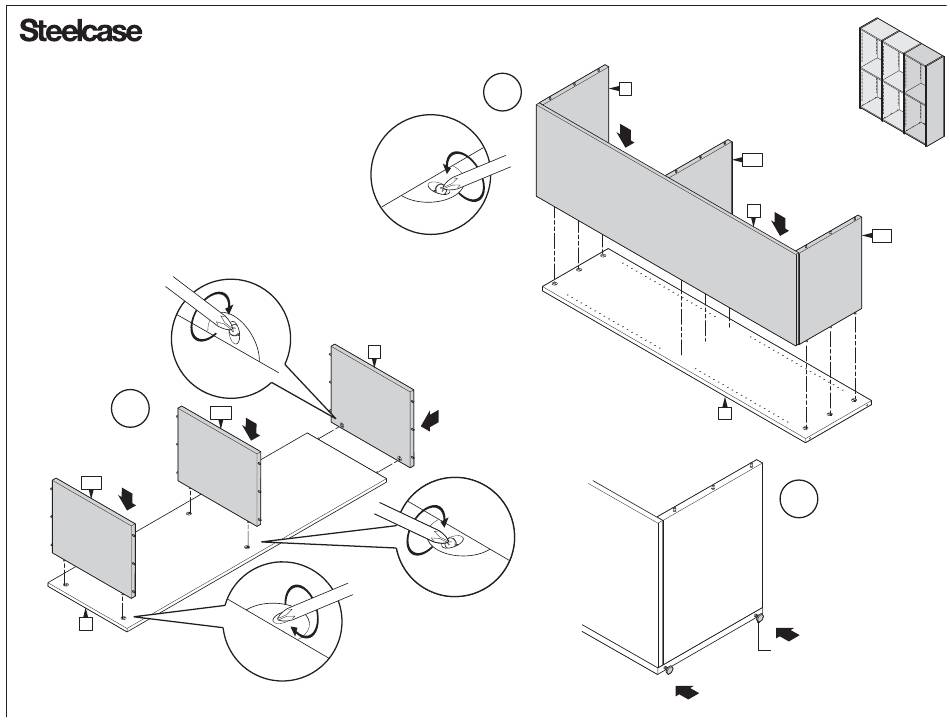

Cam locks can be seen on the topside of the
bottom shelf when installing the bottom shelf.
Fasten Cam Locks in 9 places
(The cam lock screw needs to be turned
3/4 full turn or 270
complete engagement.)
T
MC
Fasten Cam Locks in 6 places
(The cam lock screw needs to be turned
3/4 full turn or 270
TURN
CLOCKWISE
2
TURN
CLOCKWISE
o
clockwise for
For ease of assembly, it is
recommended to lay down
the end panel (E) as shown.
TURN
CLOCKWISE
o
clockwise for
complete engagement.)
T
MC
B
E
E
3
NOTE: Please adjust glides for
leveling after assembling each
sub unit (each opening).
GLIDE
LC
Page 7 of 12
939500279 Rev E
