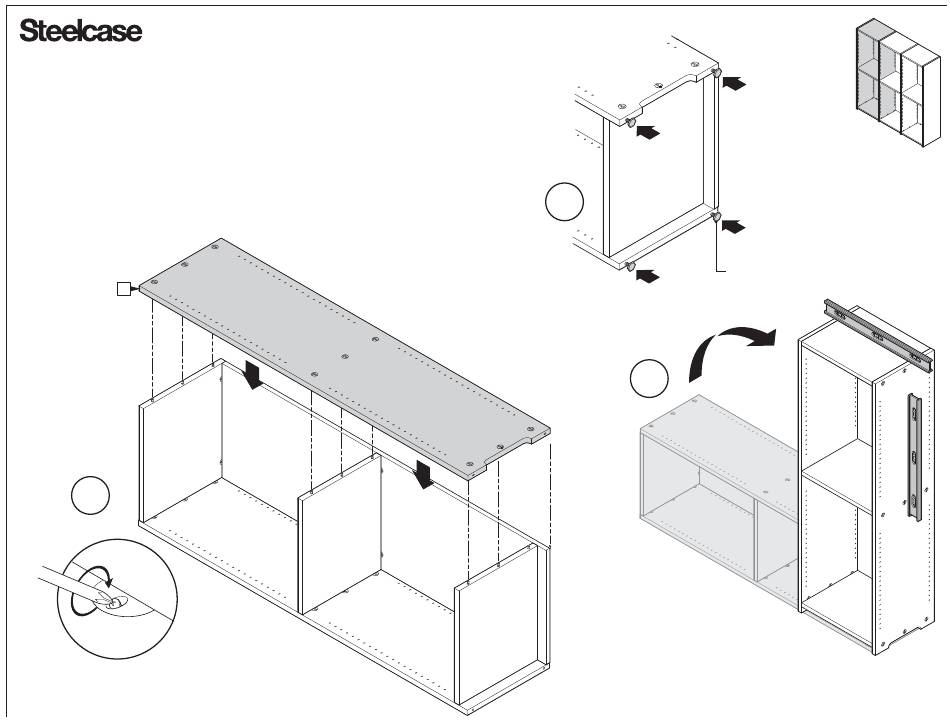

NOTE: Before assembling each part, please make sure cams
are parallel to the side of the surface & pins are nicely screwed
with the collar touching the edge of the part. (See page 3 for
proper alignment of parts)
Use mallet, before tightening cam screws, to bring parts
together and avoid light leaks.
I
3
TURN
CLOCKWISE
Fasten Cam Locks in 9 places
(The cam lock screw needs to be turned
o
3/4 full turn or 270
clockwise for
complete engagement.)
4
NOTE: Please adjust glides
for leveling after assembling
each sub unit (each opening).
GLIDE
5
C
D
