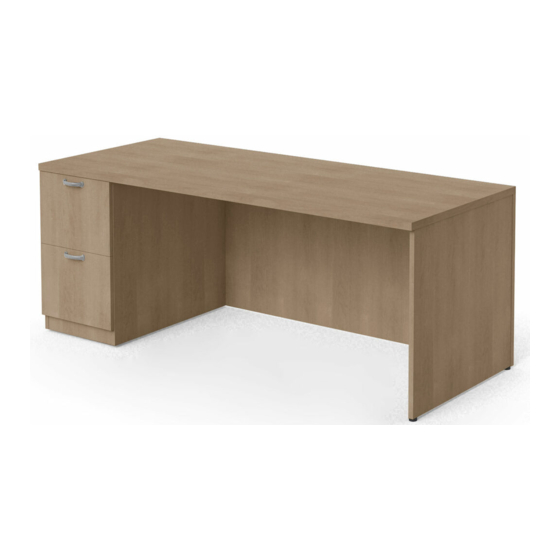

Steelcase Currency Single Pedestal Desk Manual

Components

Letter Description

Full End Panel

Top

Modesty Panel

NOTE: Assemble as close to

assembled units final desired

location to avoid moving a heavy

unit.

Remove the drawers from the

pedestal as shown on page 3.

Remove shipping strap from

pedestal.

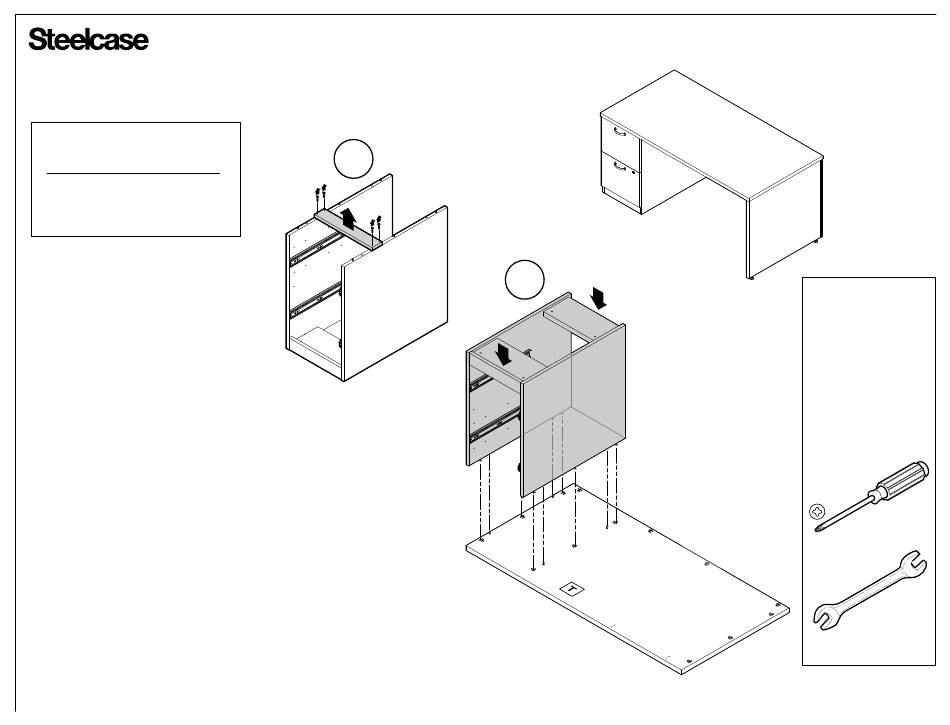

Lower the pedestal onto the

underside of T (top). Make sure pins

engage into cams.
