Steelcase Currency Workwall Manual page 8

®
NOTE: Before assembling each part, please
make sure cams are parallel to the side of
the surface & pins are nicely screwed with
the collar touching the edge of the part.
(See page 3 for proper alignment of parts)
Use mallet, before tightening cam
screws, to bring parts together and
avoid light leaks.
For optional items, please refer
to the following:
Adjustable Shelf Installation,
See page 9
Moving a Back Panel from
one Opening to Another,
See page 10 and 11
Grommet Installation,
See page 12
36" Door, 72" Door and
Bar Pull Installation,
See Assembly Direction
939500262

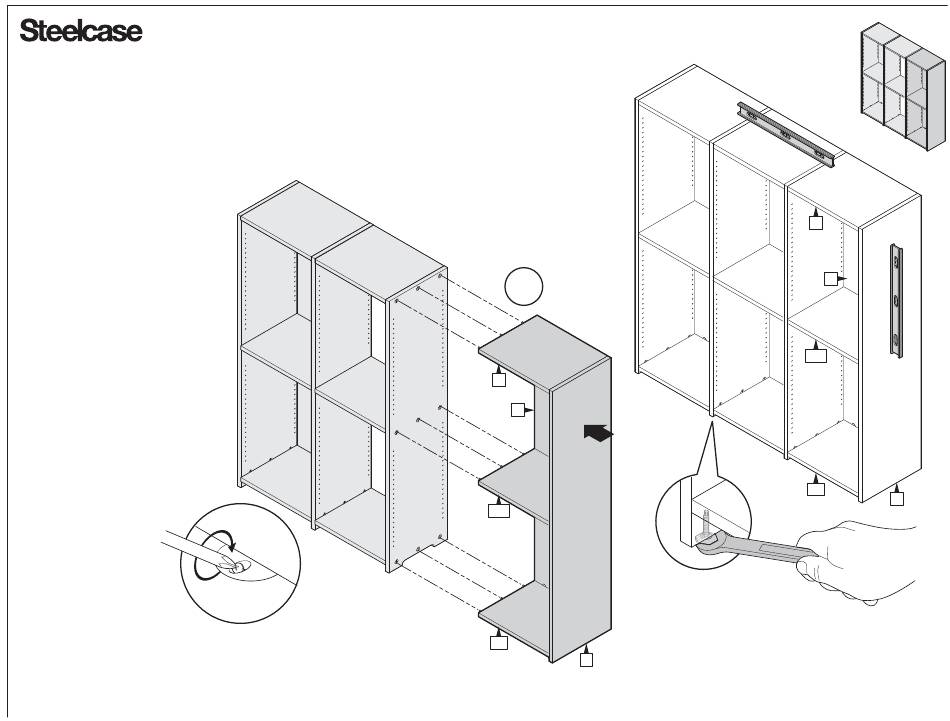

Fasten Cam Locks in 6 places
(The cam lock screw needs to be turned
3/4 full turn or 270
complete engagement.)
TURN
CLOCKWISE
o
clockwise for
NOTE: When assembly has been completed, make sure to remove
all of the E, B, I, ect. stickers from the surfaces of all the parts.
4
T
B
D
MC
LC
Level units by adjusting
glides in 8 places.
E
T
B
MC
LC
E
Page 8 of 12
939500279 Rev E
