Steelcase Currency Instructions

®
Overhead Width 30" 36" 42" 48" 54" 60" 66" 72"
Part # Description:
Provided in Hardware Kit:
1 40240286 Toggle Bolt Anchor
2 50530074 Toggle Bolt
3 50550043 #8 x 2-1/2" Screw
Min. to be used for Installation:
1 40240286 Toggle Bolt Anchor
2 50530074 Toggle Bolt
3 50550043 #8 x 2-1/2" Screw
Allowable Load (maximum-lbs)
300 360 420 480 540 600 660 720
HARDWARE KIT
1
TOGGLE BOLT
ANCHOR
2
TOGGLE BOLT
3
#8 x 2-1/2"
SELF DRIVE
SCREW
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2012 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
Kit #12 Kit #13
5 5 5 5 7 7 7 7
4 4 4 4 6 6 6 6
4 4 4 4 6 6 6 6
4 4 4 4 5 5 6 6
4 4 4 4 5 5 6 6
4 4 4 4 5 5 5 5
Currency
NOTE: These instructions are for attachment to
conventional stud and wallboard structures only,
using self drive screws #8 x 2-1/2" and Toggle
Bolts Anchors supplied in the hardware package.
IMPORTANT: Refer to the chart below for the
minimum number of bolts and the minimum
number of wall stud anchorages required to
support each size of overhead.

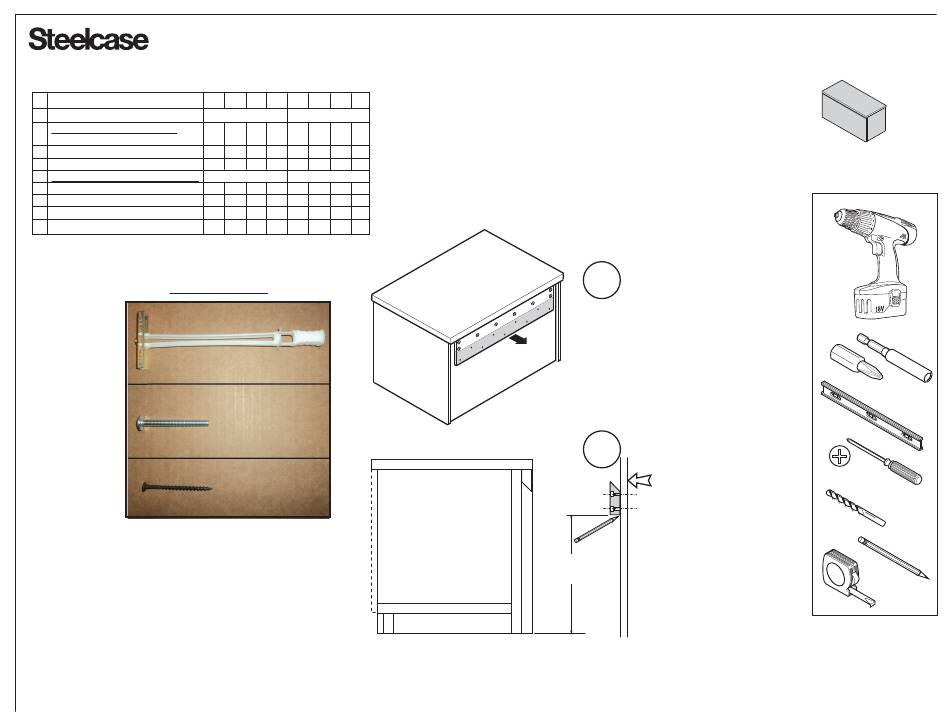

1
1.
Remove lower mounting cleat from
the rear of the overhead. Retain screws
for later use.
2
Approx 10-1/2"
when installed
2.
Establish the desired cabinet location
and the lower mounting cleat location on
the wall as shown. Level and mark with
a line on the wall.
™ - Wall Mount Overheads
Wall Mount
Overhead
Vertical mounting surface
(shown as 5/8" wallboard
for reference only).
939500049 Rev G
5/16 & 1/2 DIA
DRILL BIT
Page 1 of 3
