Directed Directechs DS4+ Installation Manual page 24

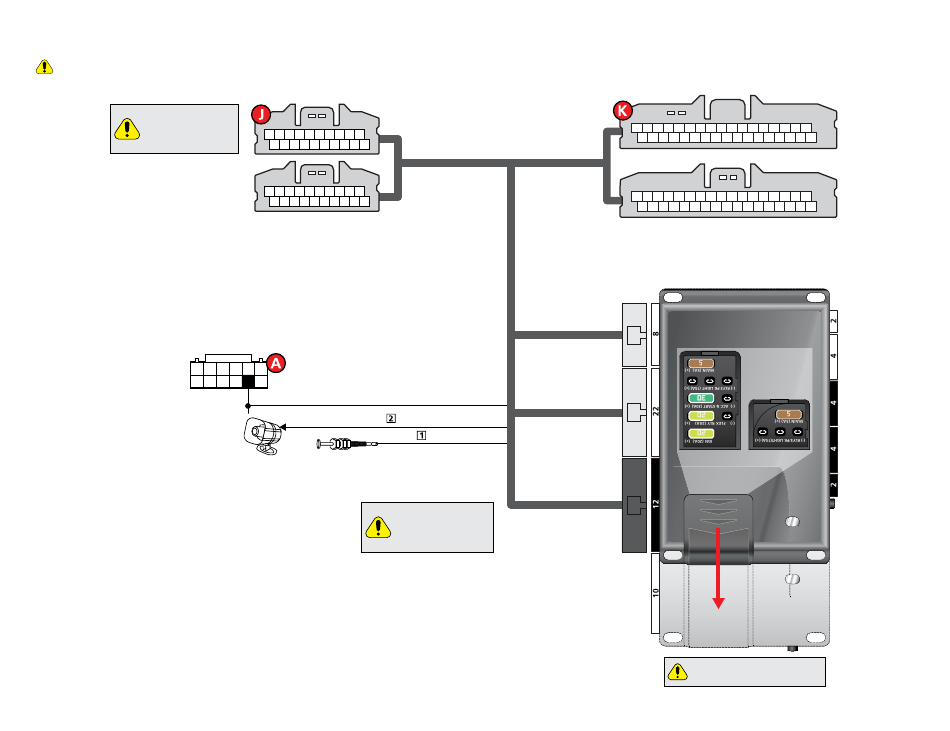

Type 5 with T-Harness (THHON2)
Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 26 for important information on this installation.
Warning! The Keyless
Access Control Unit
connectors can be
difficult to access.
Headlight Switch
( Blue or White conn. at headlight switch)
6 5
12 11
(-) Parking Lights:
24
Keyless Access Control Unit
(Blue conn. right of column)
4 3 2 1
8
10 9 7
(-) Parking Lights Output: Lt. Blue/Black
pin 8
Siren
Hood Pin
T-Harness wiring NOT
shown in the diagram
is NOT used with this
installation type.
THHON2
(Optional T-Harness)
8-pin
White
Connector
22-pin
White
Connector
(+) Siren Output: Brown/Red
(-) Hood Input: Gray
12-pin
Black
Connector
Keyless Access Control Unit
(Gray conn. right of column)
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
© 2017-06-21 Directed. All rights reserved.
DS4+ HONDA7
