Directed Directechs DS4+ Installation Manual page 10

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Honda Accord 2013-2017
Accessory Orange
Ignition Green
12V White
Starter Blue
B-CAN High Pink
B-CAN Low Blue
Ignition Interrupt Brown
Immo Data Gray
Parking Lights Gray
F-CAN High White
F-CAN Low Red
Honda Accord Crosstour 2013-2015
Accessory Orange
Ignition Blue
12V White
Starter Yellow
B-CAN High Pink
B-CAN Low Blue
Ignition Interrupt Yellow
Immo Data Lt. Green
Parking Lights Gray
F-CAN High White
F-CAN Low Red
10
Pin Polarity Location
4 (+) Ignition switch.
2 (+) Ignition switch.
1 (+) Ignition switch.
5 (+) Ignition switch.
4 Data Immobilizer Control Unit right of steering column under ignition switch.
5 Data Immobilizer Control Unit right of steering column under ignition switch.
6 Cut Immobilizer Control Unit right of steering column under ignition switch.
2 Data Immobilizer Control Unit right of steering column under ignition switch.
8 (-) Headlight switch.
6 Data OBDII.
14 Data OBDII.
4 (+) Ignition switch.
2 (+) Ignition switch.
1 (+) Ignition switch.
5 (+) Ignition switch.
4 Data Immobilizer Control Unit right of steering column under ignition switch.
5 Data Immobilizer Control Unit right of steering column under ignition switch.
6 Cut Immobilizer Control Unit right of steering column under ignition switch.
2 Data Immobilizer Control Unit right of steering column under ignition switch.
8 (-) Headlight switch.
6 Data OBDII.
14 Data OBDII.

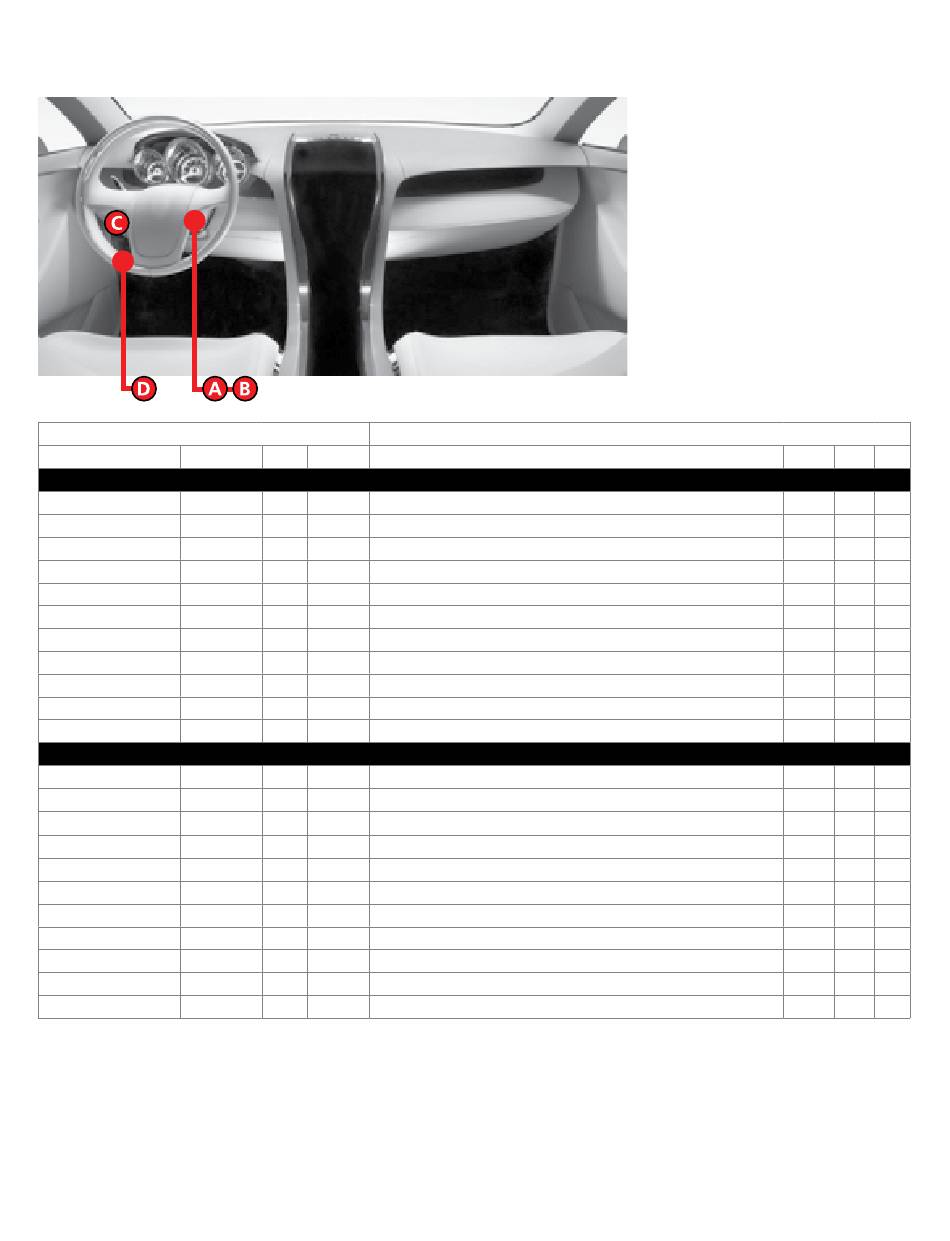

Connector Information
© 2017-06-21 Directed. All rights reserved.
Color Pins Ref.
White 5 A
White 5 A
White 5 A
White 5 A
Gray 7 B
Gray 7 B
Gray 7 B
Gray 7 B
White 12 C
White 16 D
White 16 D
White 5 A
White 5 A
White 5 A
White 5 A
Gray 7 B
Gray 7 B
Gray 7 B
Gray 7 B
White 12 C
White 16 D
White 16 D
DS4+ HONDA7
