Directed Directechs DS4+ Installation Manual page 12

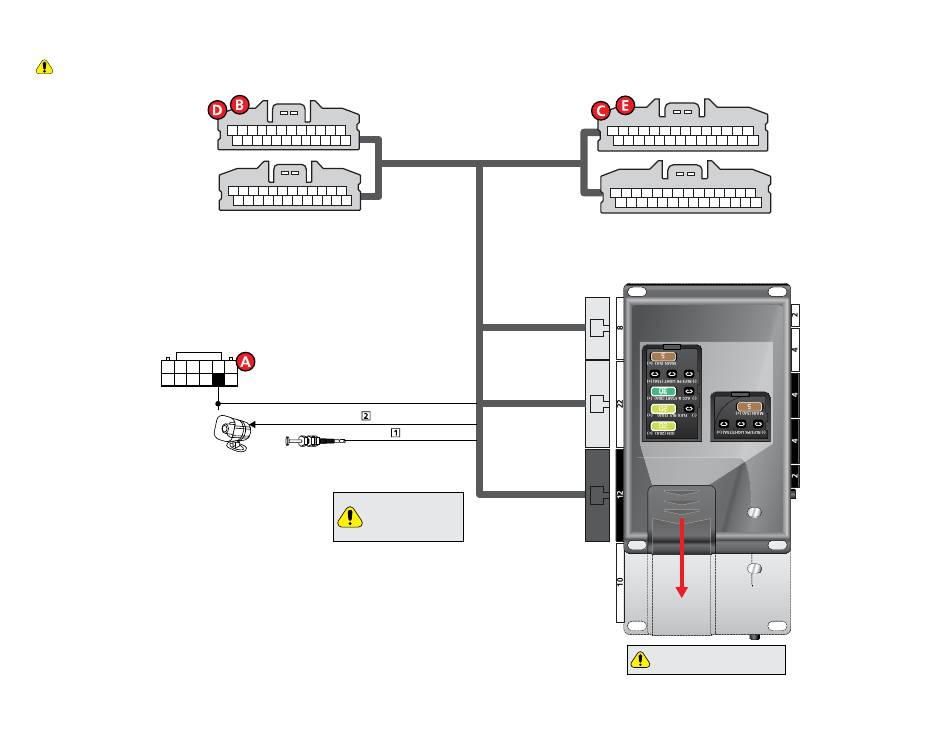

Type 2 with T-Harness (THHON2)
Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 14 for important information on this installation.
(Gray conn. left of column or behind glove box)
Headlight Switch
(Blue or White conn.
at headlight switch)
6 5 4 3
12 11 10 9
(-) Parking Lights:
pin 8
Siren
12
Keyless Access Control Unit
2 1
8
7
(-) Parking Lights Output: Lt. Blue/Black
(+) Siren Output: Brown/Red
Hood Pin
T-Harness wiring NOT
shown in the diagram
is NOT used with this
installation type.
THHON2
(Optional T-Harness)
8-pin
White
Connector
22-pin
White
Connector
(-) Hood Input: Gray 12-pin
Black
Connector
Keyless Access Control Unit
(Tan or Gray conn. left of column or behind glove box)
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
DS4+ HONDA7
