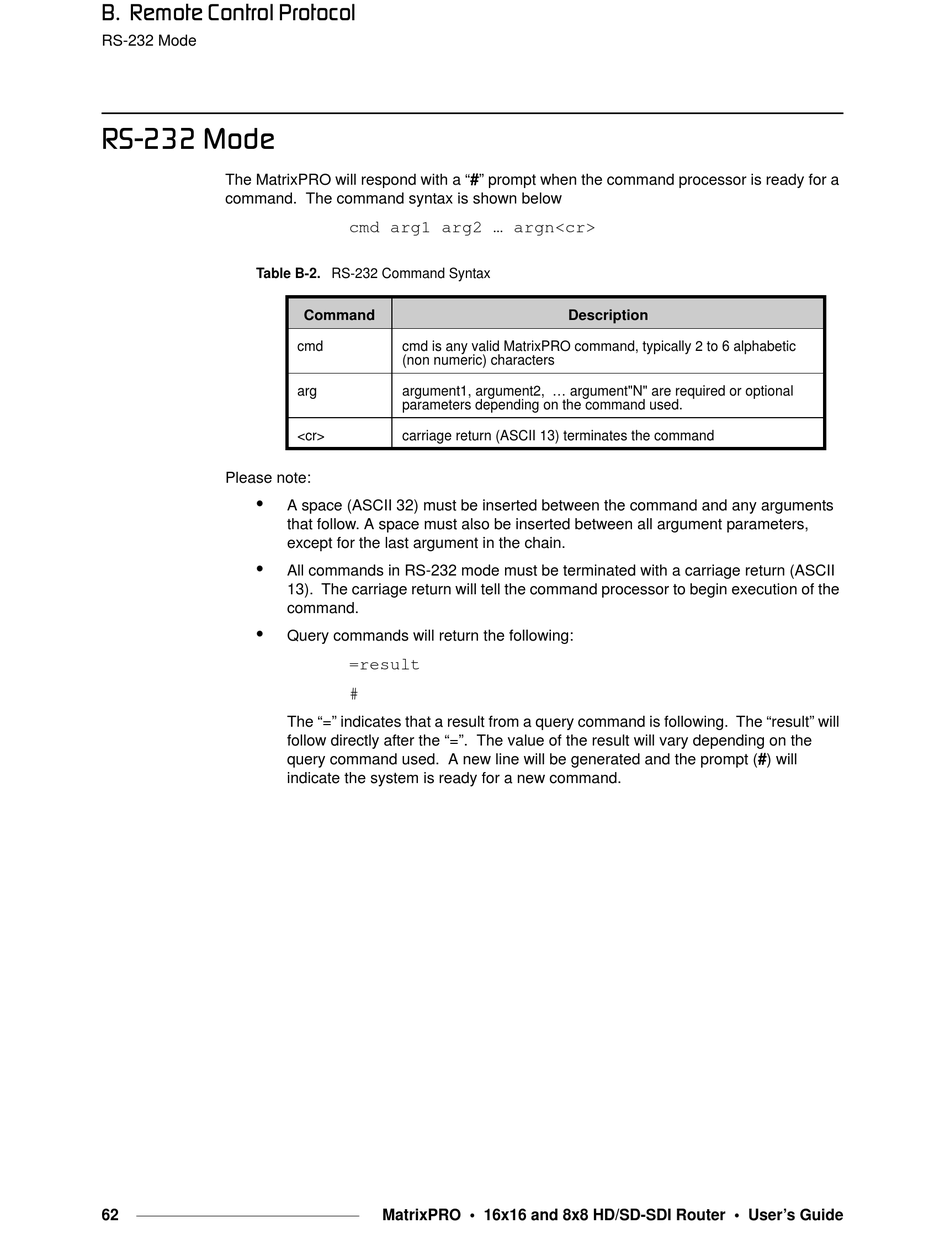

RS-232 Mode
opJOPO=jçÇÉ
The MatrixPRO will respond with a "#" prompt when the command processor is ready for a
command. The command syntax is shown below
Table B-2. RS-232 Command Syntax
Please note:
•
•
•
62
cmd arg1 arg2 ... argn<cr>
Command
cmd cmd is any valid MatrixPRO command, typically 2 to 6 alphabetic
(non numeric) characters
arg argument1, argument2, ... argument"N" are required or optional
parameters depending on the command used.
<cr> carriage return (ASCII 13) terminates the command
A space (ASCII 32) must be inserted between the command and any arguments
that follow. A space must also be inserted between all argument parameters,
except for the last argument in the chain.
All commands in RS-232 mode must be terminated with a carriage return (ASCII
13). The carriage return will tell the command processor to begin execution of the
command.
Query commands will return the following:
=result
#
The "=" indicates that a result from a query command is following. The "result" will
follow directly after the "=". The value of the result will vary depending on the
query command used. A new line will be generated and the prompt (#) will
indicate the system is ready for a new command.
