3. Operation
Menu Structure
sÉêíáÅ~ä=fåíÉêî~ä=pïáíÅÜáåÖ=jÉåì

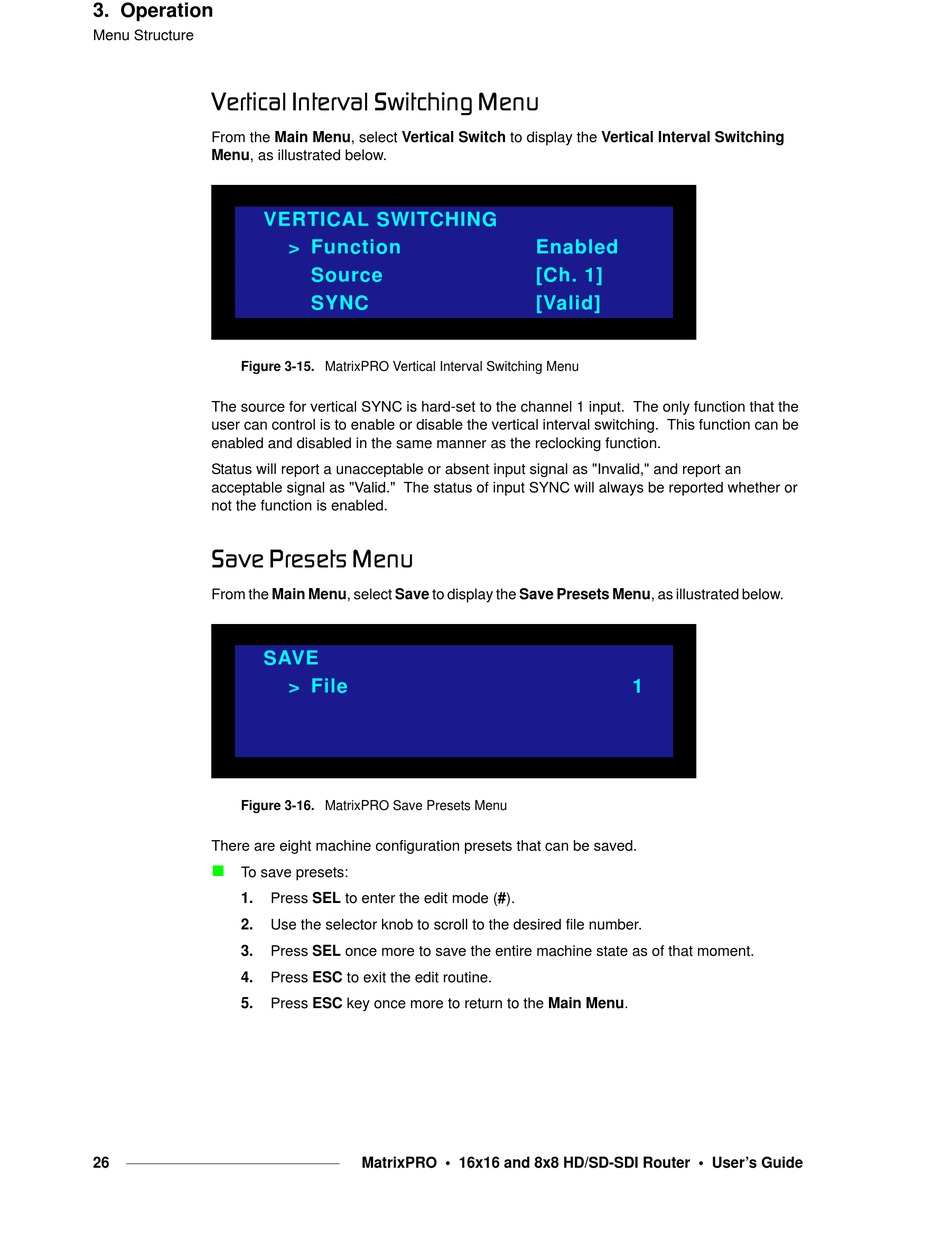

From the Main Menu, select Vertical Switch to display the Vertical Interval Switching
Menu, as illustrated below.
Figure 3-15. MatrixPRO Vertical Interval Switching Menu
The source for vertical SYNC is hard-set to the channel 1 input. The only function that the
user can control is to enable or disable the vertical interval switching. This function can be
enabled and disabled in the same manner as the reclocking function.
Status will report a unacceptable or absent input signal as "Invalid," and report an
acceptable signal as "Valid." The status of input SYNC will always be reported whether or
not the function is enabled.
p~îÉ=mêÉëÉíë=jÉåì
From the Main Menu, select Save to display the Save Presets Menu, as illustrated below.
Figure 3-16. MatrixPRO Save Presets Menu
There are eight machine configuration presets that can be saved.
To save presets:
1.
2.
3.
4.
5.
26
VERTICAL SWITCHING
> Function
Source
SYNC
SAVE
> File
Press SEL to enter the edit mode (#).
Use the selector knob to scroll to the desired file number.
Press SEL once more to save the entire machine state as of that moment.
Press ESC to exit the edit routine.
Press ESC key once more to return to the Main Menu.
MatrixPRO • 16x16 and 8x8 HD/SD-SDI Router • User's Guide
Enabled
[Ch. 1]
[Valid]
1
